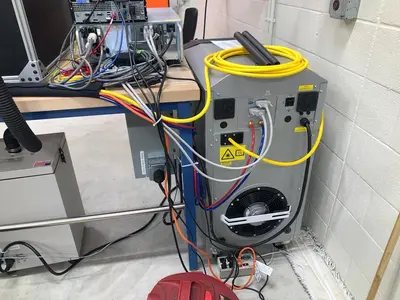

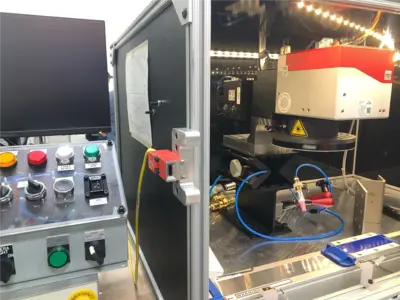

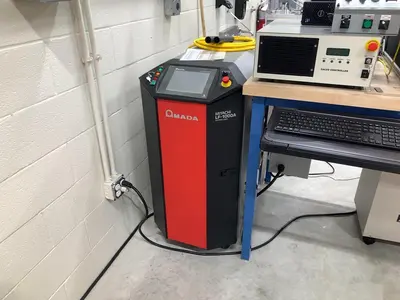

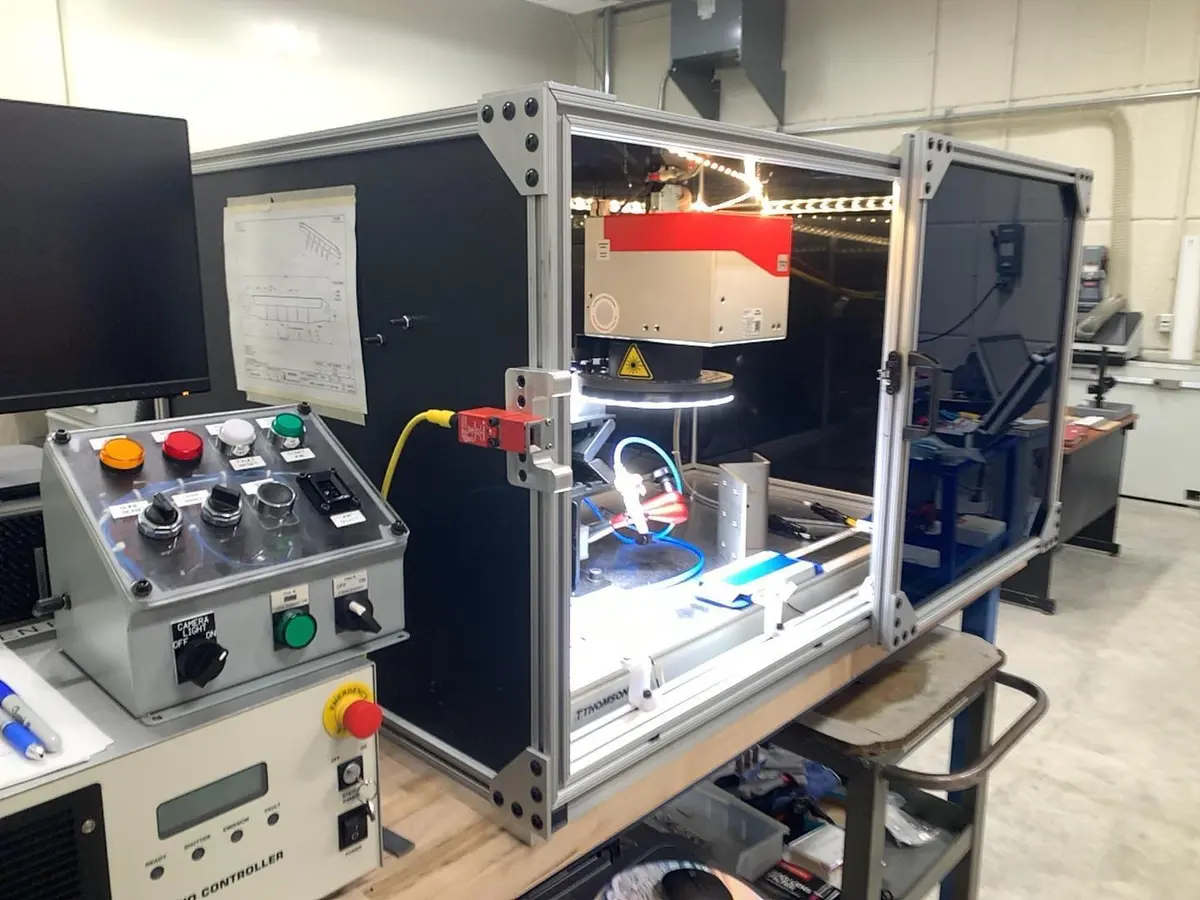

Amada Model LF-1000A-AP-M50 CNC Fiber Laser Welder (2023)

Amada Model LF-1000A-AP-M50 CNC Fiber Laser Welder (2023)

Wavelength: IR (1070 +/- 5 nm)
Operation mode CW or modulated
Maximum output power: Up to 1000 W
Dynamic range: 10%-100% of full power
Beam quality: Single-mode and Multi-mode (50 µm core*)
Positioning guide beam On axis: built in visible laser (Class 3R)
Pulse modulation: Square pulse
Up slope, down slope
20 segment pulse shaping
Parameter Laser Specification
BDO (beam delivery optic): QBH Fiber Termination
External communication: RS-232 / External I/O
Electrical: 200-240 V ±10% single phase
Cooling: Integrated Chiller provided when needed
Operating temperature range: 5-35°C for air-cooled models
5-40°C for water-cooled models
Operating humidity range: 10%-85% (non-condensing)
Safety Dual channel IEC13849-1 compliant
Fiber length 5 m (standard) - other lengths upon request
W x D x H 20.1 in x 36.7 in x 41.4 in (511 mm x 933 mm x 1051 mm)
Weight 350 lbs (159 kg)
