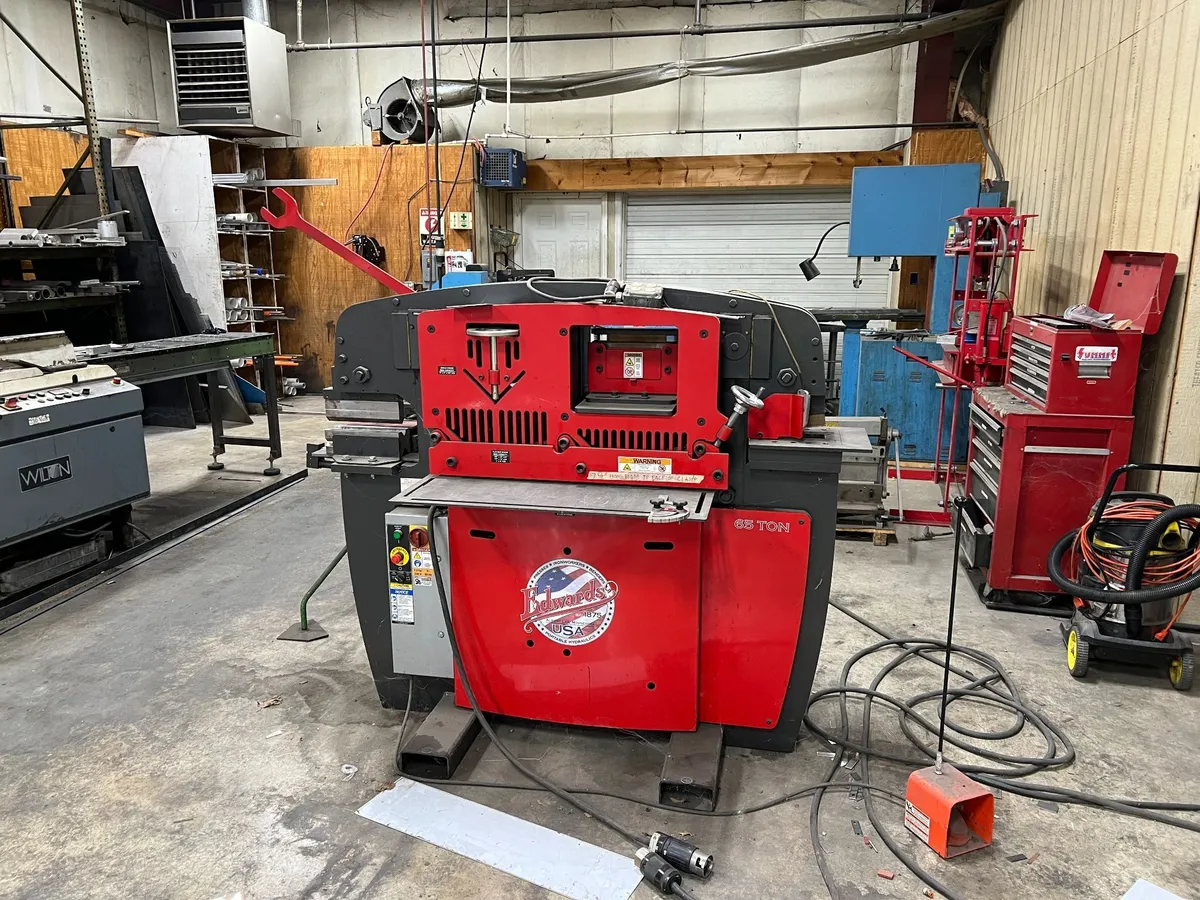

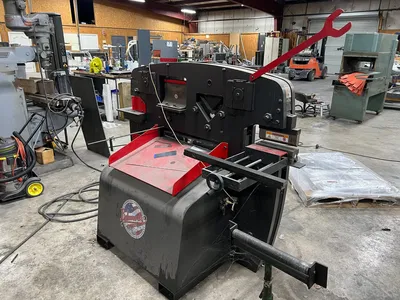

Edwards 65 Ton Hydraulic Ironworker (2017)
Have one to sell?
ConditionUsed
1 available
Barely used 65 Ton ironworker, the ultimate mid-range Ironworker. Flexible enough to handle a wide variety of projects, this 5 workstation machine is extremely versatile. It allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend or cope all in one machine. Other features include an electric foot pedal with integrated jog control, bright LED lights to increase visibility and heavy-duty Made in USA steel construction. The PowerLink™ System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools. Accepting 14 interchangeable Attachments and 17 Accessories allows an operator to improve productivity and accuracy.
Edwards 65 Ton Hydraulic Ironworker (2017)
Motor Speed (RPM) 1765
Punch Max Capacity (In.) 1-1/16 diam. in 3/4 mild steel
Punch Stroke (In.) 1-13/16
Punch Work Height (In.) 36-9/16
Flat Bar Shear Max Capacity 1/2" 14
Flat Bar Shear Max Capacity 3/8" 24
Flat Bar Shear Max Capacity (In.) 3/8 x 24, 1/2 x 14, 1x4
Flat Bar Shear Work Height (In.) 34-1/2
Flat Bar Shear Max Round Capacity (In.) 1
Angle Shear Max Capacity (In.) 5 x 5 x 3/8
Angle Shear Work Height (In.) 43-1/2
Weight (Lbs.) 4750
Coper Notcher Max Capacity (In.) 2-1/2 x 5 x 3/8
Flat Bar Shear Max Square (In) 1
Coper Notcher Work Height (In.) 39-1/2
Flat Bar Shear Max Round (In) 1
Hydraulic Pump (GPM) 10-1/2
Punch Shut Height (In) 6-15/16
Punch Open Height (In) 8-3/4
Amps 11
Hydraulics (GPM) 10-1/2
Rating (Tons) 65
Reservoir (Gal.) 17
Hydraulics (PSI) 3500
Hydraulic Reservoir (Gal.) 17
Valve Pressure (PSI) 3500
Motor (HP) 7.5 HP 3 ~ 460V
Overall Dimensions (L x W x H) (In.) 45 x 62-1/8 x 57
Motor Amps 11
Shipping Dimensions (L x W x H) (In.) 46 x 69 x 63
Gross Weight (Lbs) 4750
Height 63.0000
Length 46.0000
Weight 4750.0000
Width 69.0000
Adjustable electric stoke control
Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
ANSI B11.5-1988(02) Compliant Guarding
ETL Certified Controls
Five Workstations: Standard (4) - Punch, Flat Bar Shear, Angle Shear, and Coper Notcher. Open Cavity (1): Customize your ironworker with four optional attachments including Brake, Rod Shear, Multi-Shear, and Pipe Notcher
Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
Optimized workstation heights for improved efficiency
Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
