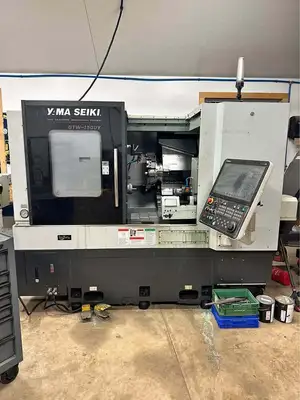

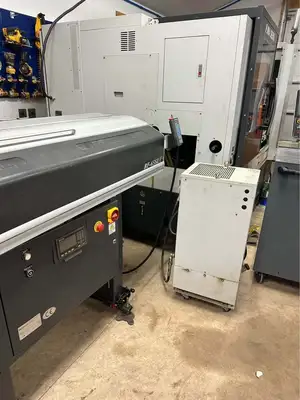

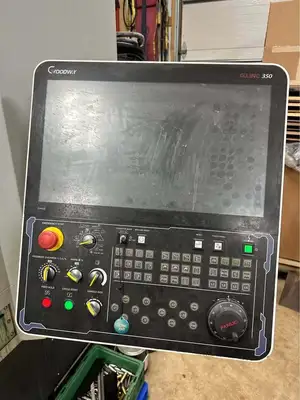

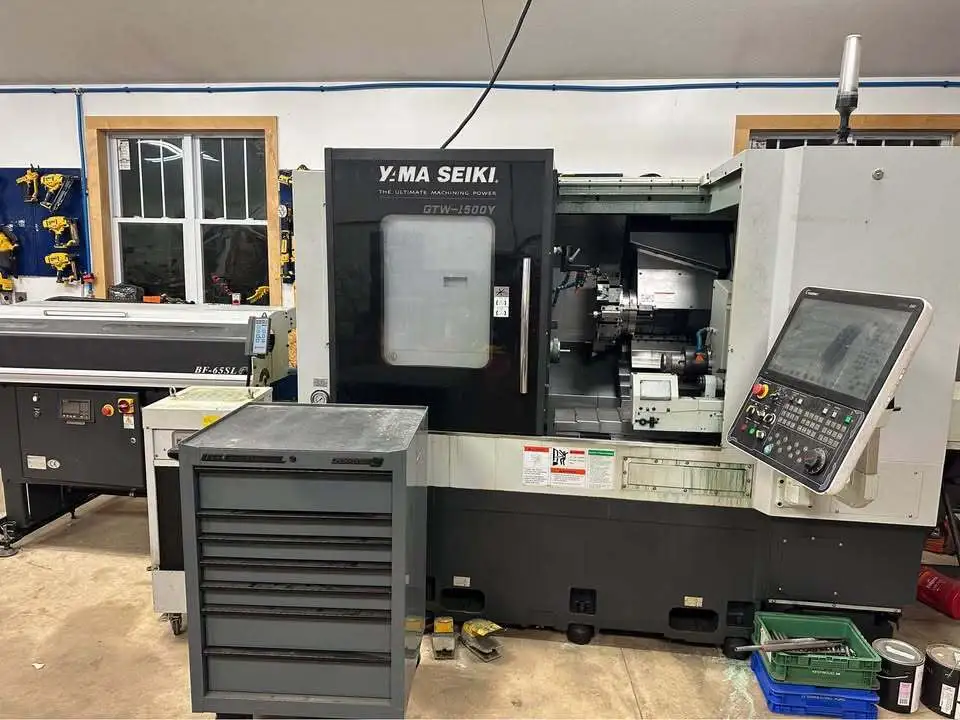

Yama Seiki GTW-1500Y Live Tool CNC Lathe (2018)

Yama Seiki GTW-1500Y Live Tool CNC Lathe (2018)

Max. turning diameter Ø 250 mm ( Ø 9.8" )
Max. swing diameter Ø 400 mm ( Ø 15.7" )
Max. turning length 210 mm ( 8.2" )

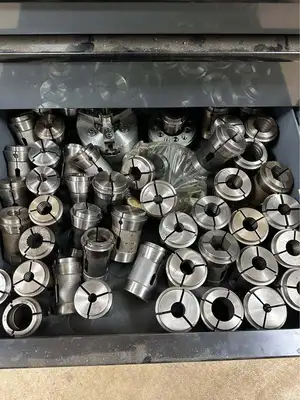

Chuck size CL42 CL52 6"
Bar capacity Ø 51 mm ( Ø 2" )
Max. turning diameter Ø 250 mm ( Ø 9.8" )
Max. swing diameter Ø 400 mm ( Ø 15.7" )
Max. turning length 210 mm ( 8.2" )
Chuck size CL42 CL52 6"
Bar capacity Ø 51 mm ( Ø 2" )
X & Z AXES
X1 / X2 axes travel 180 / 310 mm ( 7.1" / 12.2" )
Z1 / Z2 axes travel 268 / 550 mm ( 10.5" / 21.6" )
X1 / X2 axes servo motor ( cont. ) 1.2 kW ( 1.6 HP )
Z1 / Z2 axes servo motor ( cont. ) 1.2 kW ( 1.6 HP )
X1 / X2 axes rapids 18 / 24 m/min. ( 708 / 945 IPM )
Z1 / Z2 axes rapids 30 m/min. ( 1,180 IPM )
X1 / X2 axes ball screw
Ø x pitch Ø 32 mm ( Ø 1.2" ) x Pitch 10 / Ø 36 mm ( Ø 1.4" ) x Pitch 8
Z1 / Z2 axes ball screw
Ø x pitch Ø 32 mm ( Ø 1.2" ) x Pitch 10

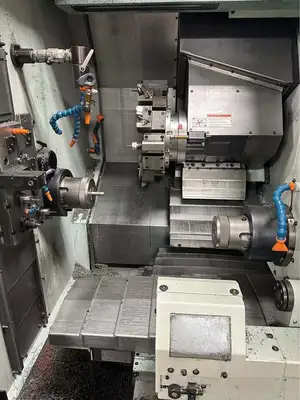

Stations 12
Turret disk diameter Ø 310 mm ( Ø 12.2" )
Live tooling drive motor 2.5 kW ( 3.3 HP )
Indexing drive motor FANUC α8 / 4000is

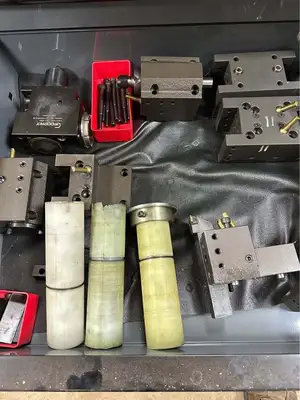

O.D. tool shank size □ 20 mm ( □ 3/4" )
I.D. tool shank size Ø 25 mm ( Ø 1" )
Live tooling shank size ER 25 ( Ø 16 mm ( Ø 0.6" ) )
Live tooling RPM range 4,000 rpm

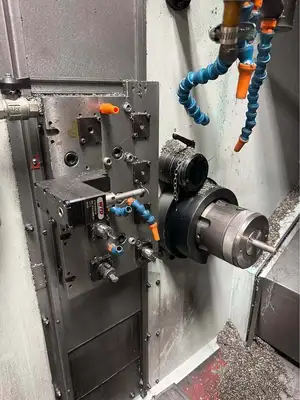

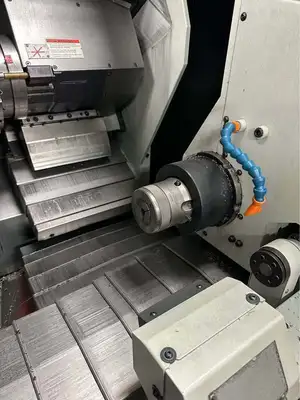

Sub Spindle
Chuck size CL42 CL52 5"
Hole through spindle Ø 43 mm ( Ø 1.69" )
Spindle nose Ø 140 mm ( Ø 5.5" ) Ø 170 mm ( Ø 6.7" ) Ø 110 mm ( Ø 4.3" )
Spindle bearing diameter Ø 90 mm ( Ø 3.5" )
Spindle speed 6,000 rpm
Spindle torque
( cont. / 15 min. / 25% ) 15 / 20 / 22 Nm ( 11 / 14.7 / 16.2 ft-lb )
Spindle motor
( cont. / 30 min. / 25% ) 3.7 / 5.5 / 5.5 kW ( 5 / 7.4 / 7.4 HP )
Y1 / Y2 axes travel ± 35 / 250 mm ( ± 1.4" / 9.8" )
Y1 / Y2 axes servo motor ( cont. ) 1.4 / 0.75 kW ( 1.8 / 1 HP )
Y1 / Y2 axes rapids 20 / 24 m/min. ( 788 / 945 IPM )
Y1 / Y2 axes ball screw
Ø x pitch Ø 32 mm ( Ø 1.25" ) x Pitch 6 / Ø 28 mm ( Ø 1.10" ) x Pitch 6
