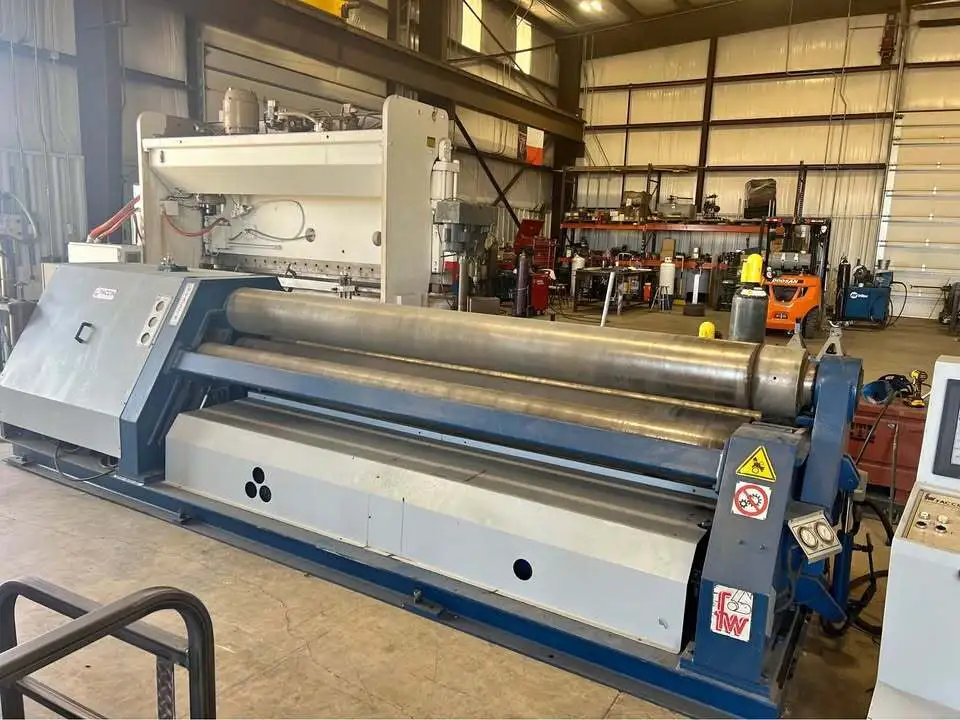

Faccin 4HEL 3128 1/2" x 10' Hydraulic Bending Roll (2006)

Faccin 4HEL 3128 1/2" x 10' Hydraulic Bending Roll (2006)

• Capacity: 1/2” x 10’
• 4-roll hydraulic system
• Precision rolling and forming
• Heavy-duty construction
Bending length - 10'

Distance between housings - 10' 2"

Top roll diameter - 11.15”

Pinch roll diameter - 10.63”

Side roll diameter - 7.87”

Driven rolls (hydraulic motors) - 2

Rotation speed - 16 feet / minute

Controls & Balancing - Electronic

... Rolling only (55-1/4” ID), full-length @ 36000 PSI - 0.472”

... With pre-bending (55-1/4” ID), full-length @ 36000 PSI - 0.315”

... Rolling only (14-1/2” ID), full-length @ 36000 PSI - 0.315”

... With pre-bending (14-1/2” ID), full-length @ 36000 PSI - 0.236”

... Rolling only (55-1/4” ID), full-length @ 52000 PSI - 0.406’

... With pre-bending (55-1/4” ID), full-length @ 52000 PSI - 0.271”

... Rolling only (14-1/2” ID), full-length @ 52000 PSI - 0.271”

... With pre-bending (14-1/2” ID), full-length @ 52000 PSI - 0.203”

... Rolling only (55-1/4” ID), half-length @ 52000 PSI - 0.508”

... With pre-bending (55-1/4” ID), half-length @ 52000 PSI - 0.339”

Motor - 16 HP (12 kW)

Volts - 440

Phase - 3

Cycles - 60

Amps 0- 21.2

Approximate dimensions - 212" x 60" x 56" high

Approximate weight - 19,841 lbs. (9000 kg)
