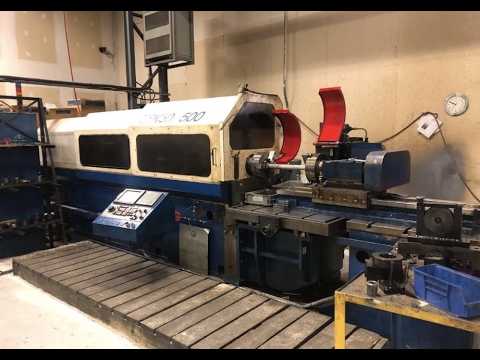

Unisig USK50-1500 2" x 60" CNC Gundrill
Have one to sell?
ConditionUsed
1 available

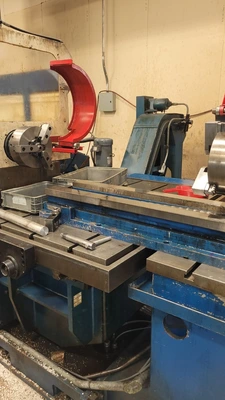

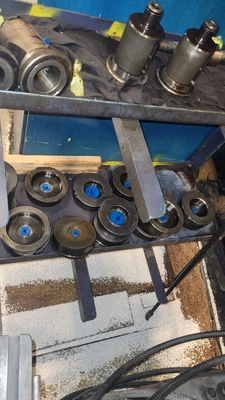

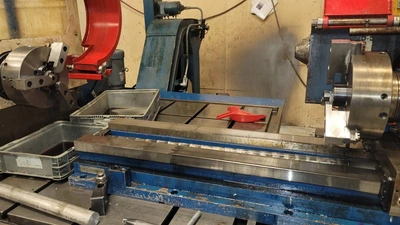

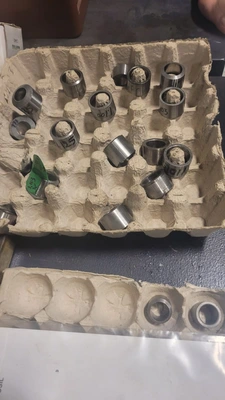

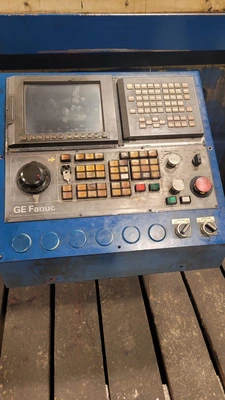

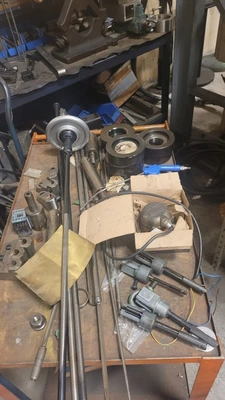

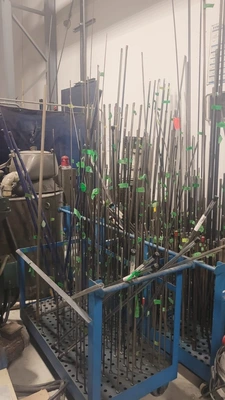

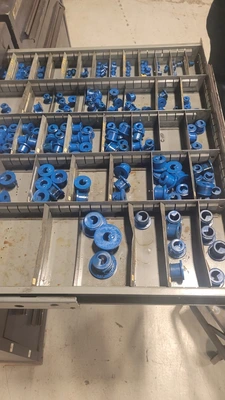

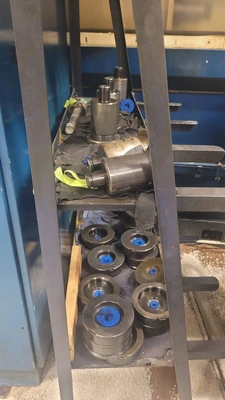

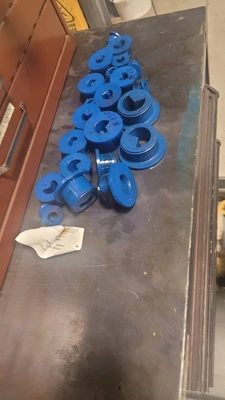

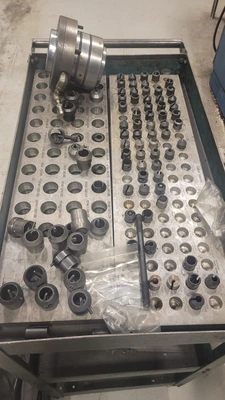

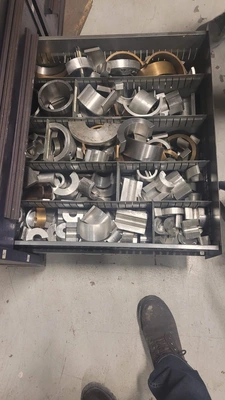

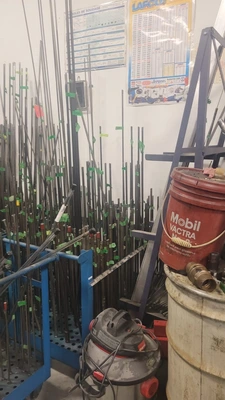

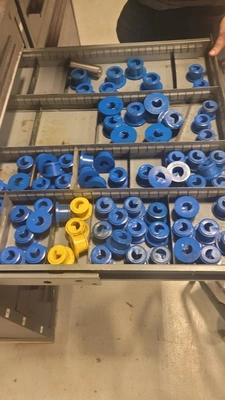

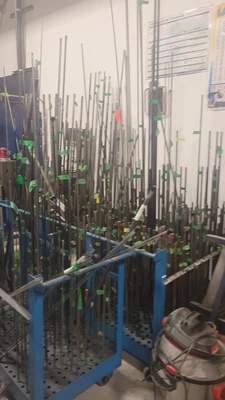

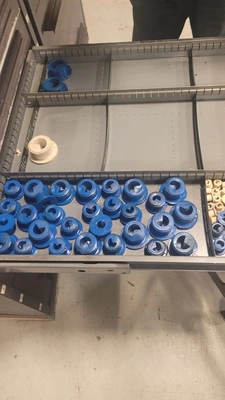

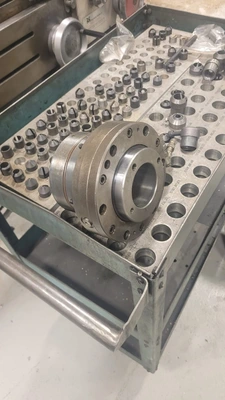

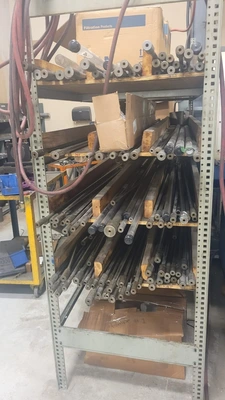

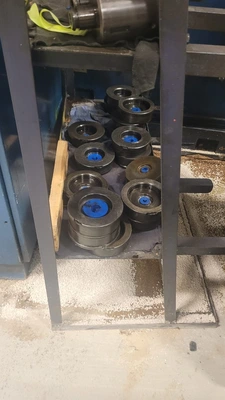

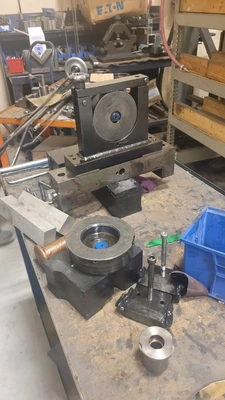

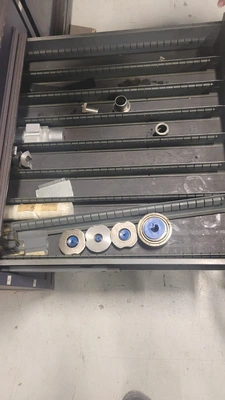

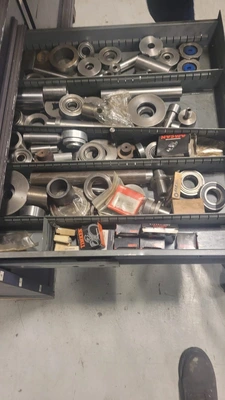

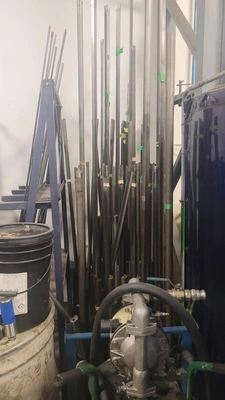

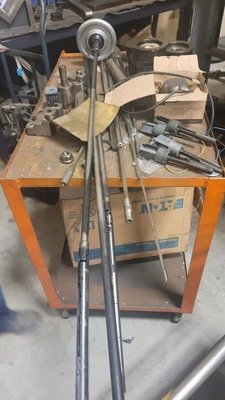

GE 3 Axis Fanuc CNC, Counter Rotation, 2" x 60" Capacity, 3 Jaw Chuck, Chip Conveyor, Coolant Filtration, Misc Tooling, T-Slotted Knee Table which the Workpiece is fixtured to. It has the capacity to automatically and productively drill .188"-2.0" diameter holes, 60" deep in many different types of materials

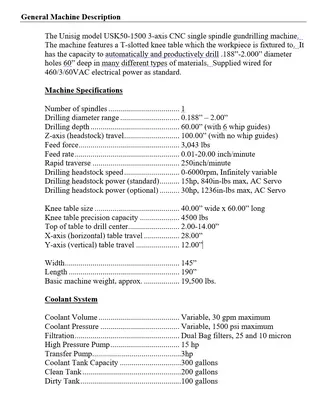

Unisig USK50-1500 2" x 60" 3 Axis CNC Gundrill
# Spindles 1
Drilling Diameter Range 0.188" - 2.0"
Drilling Depth 60.0" (with 6 whip guides)
Z Axis Headstock Travel 100.0" (with no whip guides)
Feed Force 3043 lbs
Feed Rate 0.01-20.0 IPM
Rapid Traverse 250 IPM
Drilling Headstock Speed 0-6000 RPM Inf Variable
Drilling Headstock Power 15 HP
Drilling Headstock Power 30 HP OPT

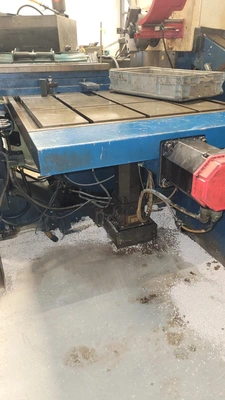

Knee Table 40" x 60"
Top of Table to Drill Center 2" - 14"
Max Table Load 3,300 lbs
X-Axis Travel 28"
Y-Axis Travel 12"
Dimensions 190" x 145"
Weight 19500 Lbs
Coolant System
Volume Variable 30 GPM
Pressure Variable 1500 PSI
Filtration Dual Bag Filters
High Pressure Pump 15 HP
Coolant Capacity 300 Gal
Clean Tank 200 Gal
Dirty Tank 100 Gal Transfer Pump 3HP
GE 3 Axis Fanuc CNC, Counter Rotation, 2" x 60" Capacity, 3 Jaw Chuck, Chip Conveyor, Coolant Filtration, Misc Tooling, T-Slotted Knee Table which the Workpiece is fixtured to. It has the capacity to automatically and productively drill .188"-2.0" diameter holes, 60" deep in many different types of materials
