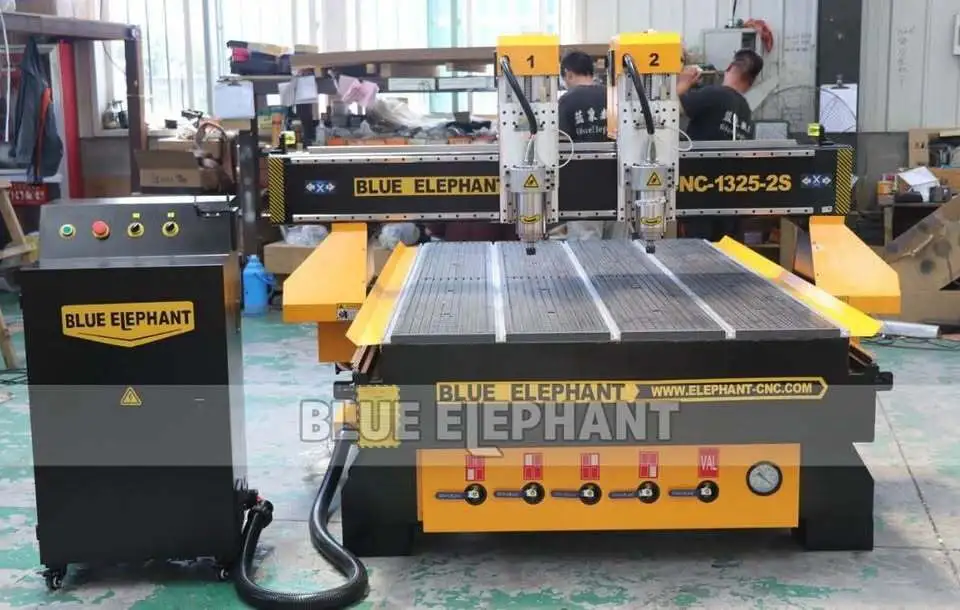

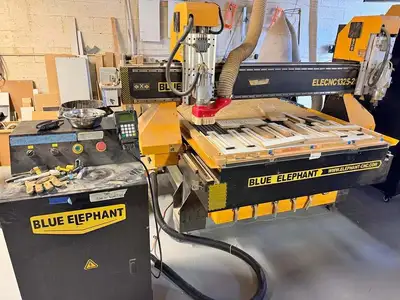

Blue Elephant ELE1325 Double Head CNC Router (2023)
New Never Installed
Standout Premium Features:
• Dual Spindle Heads: Two powerful 3kW water-cooled spindles (up to 24,000 RPM) for simultaneous or independent operation - double your output on intricate cuts, engravings, and milling without tool changes.
• Vacuum Table with T-Slots: Hybrid hold-down system with a robust 7.5kW JQT two-stage air-cooled vacuum pump - secures materials firmly for vibration-free precision on wood, acrylic, MDF, and more. No slipping, maximum efficiency!
• Working Area: Massive 1300x2500x200mm (about 4x8 ft) - tackles full sheets with ease.
• Heavy-Duty Build: Thicker 10-12mm steel structure for ultimate stability and longevity - handles heavy loads without flexing.
• Precision Guidance: Taiwan PMI #20 square linear guides and reliable stepper motors/drivers for ultra-accurate movements.
• Cooling & Control: Water-cooled spindles keep things running cool under load; 3.7kW Fuling inverter for seamless speed adjustments; DSP A11 hand controller for intuitive, PC-free operation.
• Automation Perks: Automatic lubrication system to minimize maintenance.
• Power Setup: 220V 3-phase 60Hz - plugs right into standard US industrial power.
This isn’t your entry-level router - the dual water-cooled spindles, pro vacuum system, and beefy frame make it stand out from cheaper singles.
C axis function on machine
Boring head, drilling head 9 vertical drilling function
9KW HSD ATC Air cooling spindle
Aggregated head included
