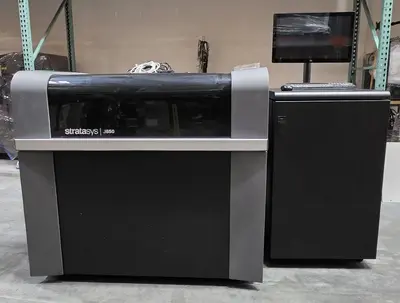

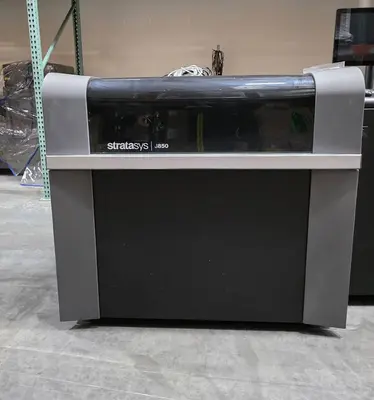

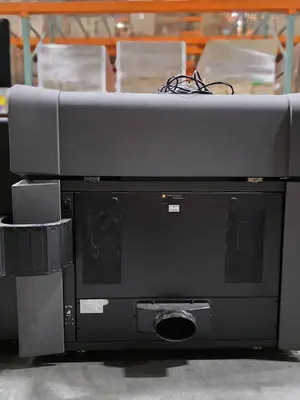

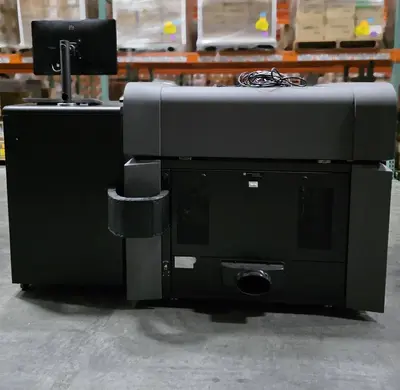

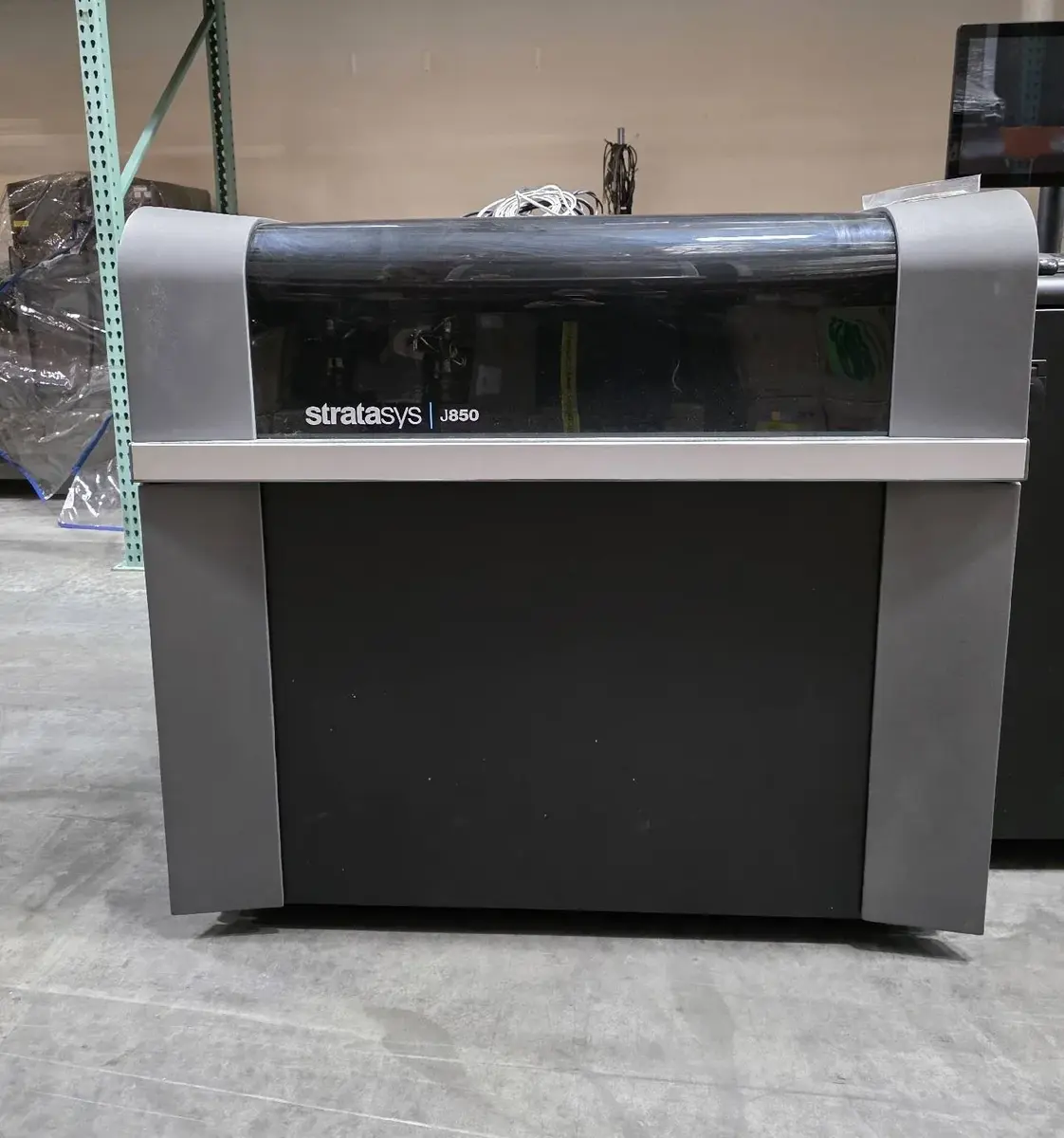

Stratasys J850 Pro 3D Printer (2021)

Stratasys J850 Pro 3D Printer (2021)

Print prototypes that look and feel like the finished product. The J850 Pro can print up to seven materials simultaneously, allowing for virtually unlimited material combinations and multi-material parts. From consumer products to medical devices, the J850 Pro helps you simplify and speed up product development. High print resolution ensures smooth surfaces for parts and incredible accuracy, even for details like printed graphics and complex geometries.
Model Materials

• Vero™ family of materials in black, white and gray
• Agilus30™ family of flexible materials
• Transparent VeroClear™ and VeroUltraClear
• VeroUltra™ materials in black and white
Digital Model Materials
Composite materials including:
• Digital ABS Plus™ and Digital ABS2 Plus™ in ivory
• Rubberlike materials in a variety of Shore A values
• Translucent color tints
Support Materials SUP705™ (water jet removable)
SUP706B™ (soluble)
Build Size 490 x 390 x 200 mm (19.3 x 15.35 x 7.9 in.)
Layer Thickness Horizontal build layers down to 14 microns (0.00055 in.)
55 microns (0.002 in.) in Super High Speed1 mode
Workstation Compatibility Windows 10
Network Connectivity LAN — TCP/IP
System Size and Weight System: 1400 x 1260 x 1100 mm (55.1 x 49.6 x 43.4 in.); 430 kg (948 lbs.)
Material Cabinet: 1119 x 656 x 637 mm (44 x 25.8 x 25.1 in.); 153 kg (337 lbs.)
Operating Conditions Temperature 18 – 25 °C (64 – 77 °F); relative humidity 30-70% (non-condensing)

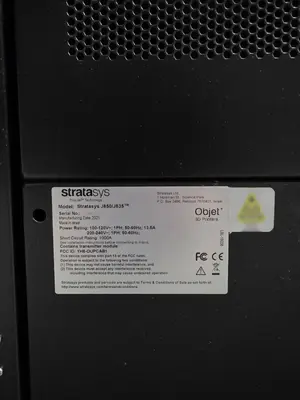

Power Requirements 100–120 VAC, 50–60 Hz, 13.5 A, 1 phase
220–240 VAC, 50–60 Hz, 7 A, 1 phase
Regulatory Compliance CE, FCC, EAC, RCM, R-NZ
Software GrabCAD Print
Build Modes
High Quality: up to 7 base resins, 14-micron (0.00055 in.) resolution
High Mix: up to 7 base resins, 27-micron (0.001 in.) resolution
High Speed: up to 3 base resins, 27-micron (0.001 in.) resolution
Super High Speed: 1 base resin, 55-micron (0.002 in.) resolution
Accuracy Typical deviation from STL dimensions, for models printed with rigid materials, based on size: under 100
mm – ±100μ; above 100 mm – ±200μ or ± 0.06% of part length, whichever is greater.
