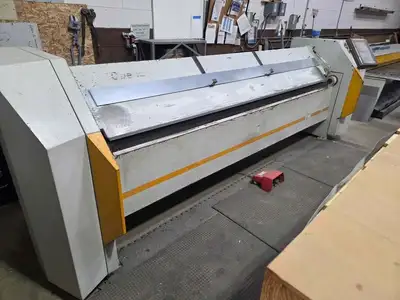

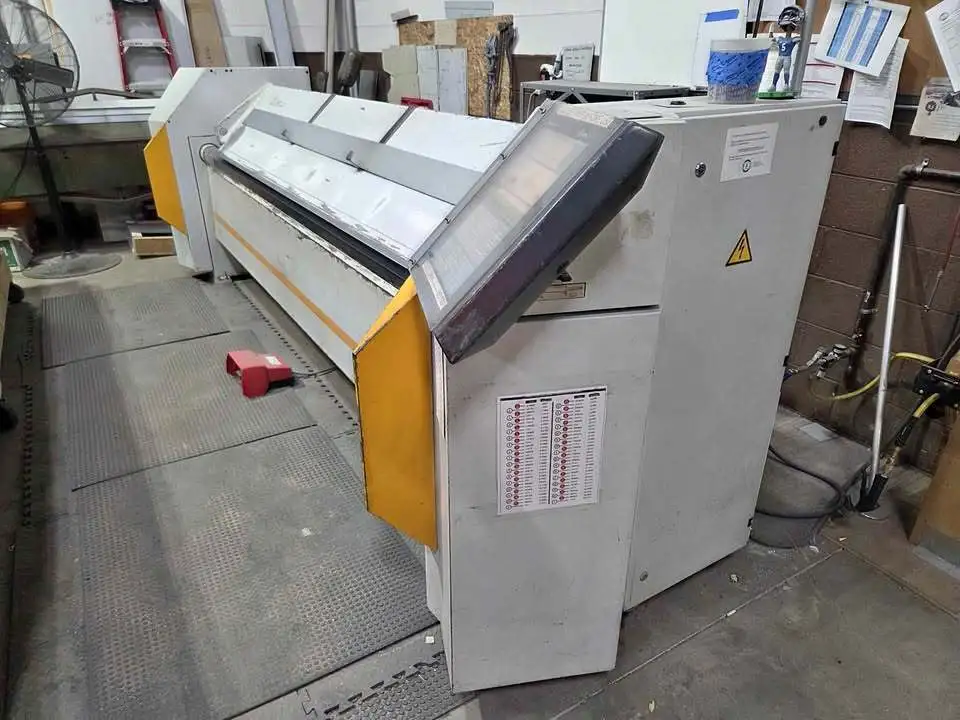

RAS Turbobend 61.31 CNC Folding Machine (2005)

RAS Turbobend CNC Folding Machine (2005)

Max Thickness: 0.0591″Max Thickness (gauge): 16 gauge
Max Bending Length Length: 124″ (3150 mm)
Maximum Sheet Thickness: 16 ga/1.5mm
Folding Beam Adjustment: 0” – 0.217”/ 0 – 5.5mm
Maximum Length: 124”/3150mm
Motor Drive Power Upper Beam: 1 hp/.75 kw
Back gauge Depth: 0.236” – 39.4” / 6-1000mm
Motor Drive Power Folding Beam: 1.5 hp/1.1 kw
Machine Length: 170”/4320mm
Down stroke Speed: 2.5”/sec 6mm/sec
Machine Width: 55.1”/1400mm
Folding Beam Speed: 180 degrees/sec
Machine Height: 54.33”/1380mm
Back gauge Speed: (0.4” to 39.3”/8mm – 1000mm) 1.9 sec
Working Height: 33.5”/850mm
Back gauge Accuracy: .004”/.15mm
Max Upper Beam Upstroke: 0 – 4.73”/ 0 – 120mm
Dimensions: 175″ L x 64″ W x 56″ H
Machine Weight: 5,500 lbs.
