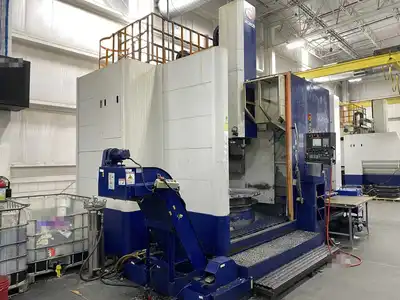

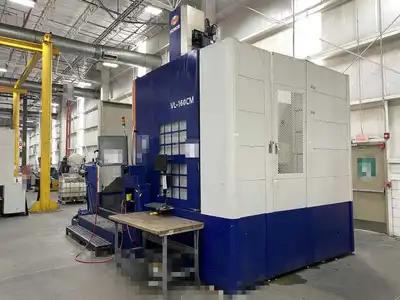

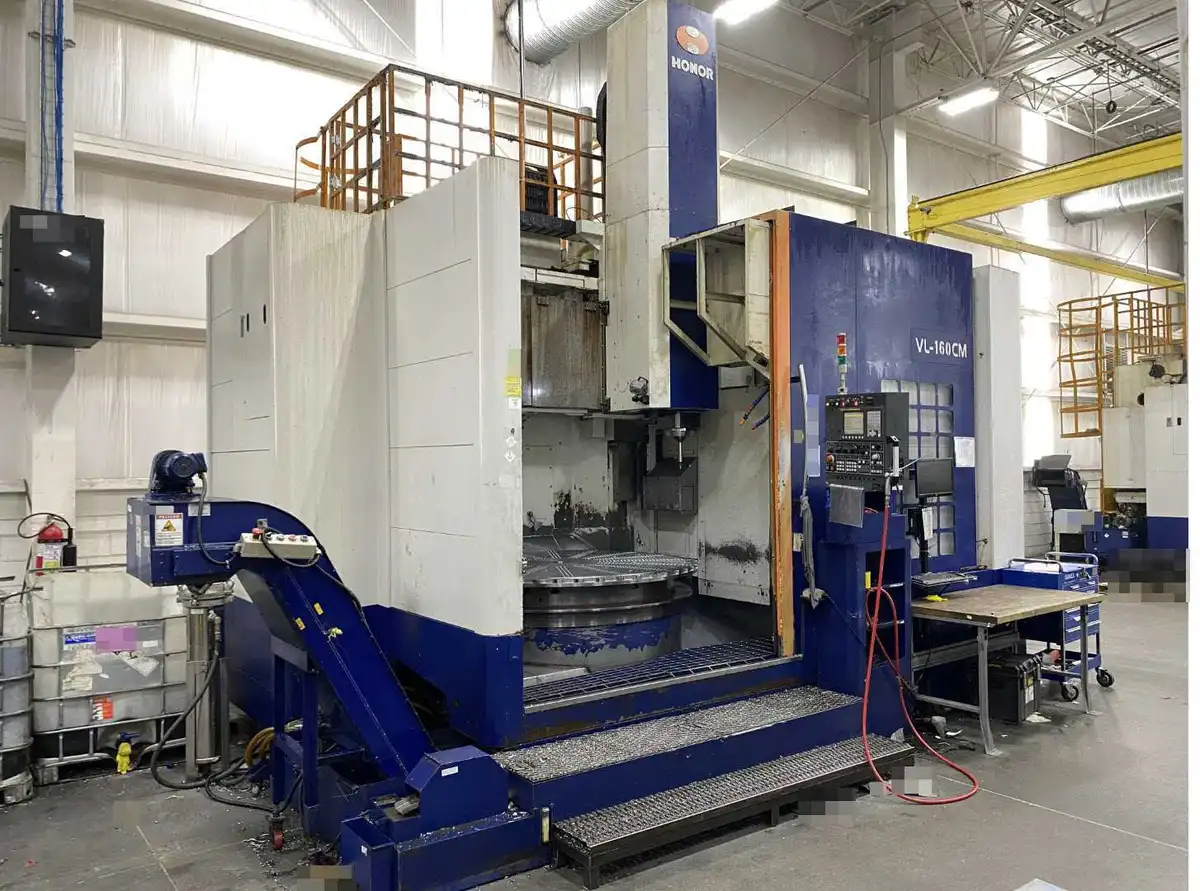

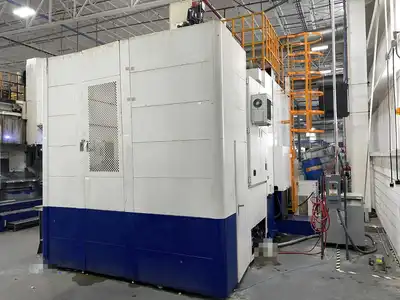

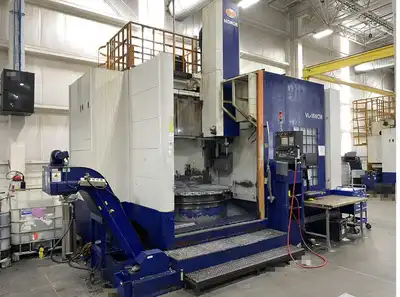

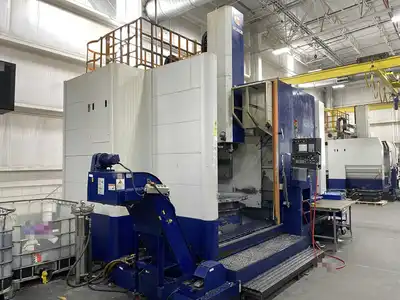

Honor Seiki VL-160CM Live Tool CNC Vertical Boring Mill (2015)

Honor Seiki VL-160CM Live Tool CNC Vertical Boring Mill (2015)

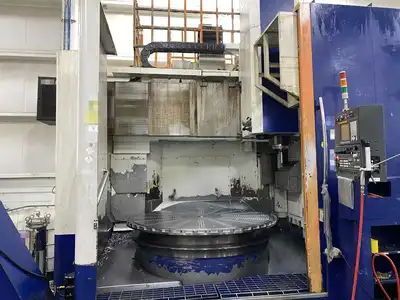

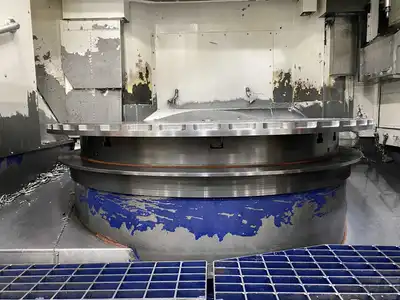

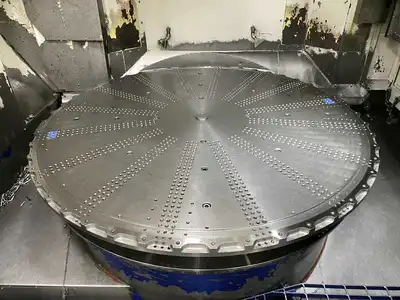

Table Diameter 63" (1600mm)
Max Swing Diameter 78.7" (2000mm)
Max Turning Diameter 78.7" (2000mm)
Max Turning Height 46" (1170mm)
Distance Ram to Table 25.6" - 57.1" (650-1450mm)
Max Workpiece Weight 22,000 lbs (10,000 kg)
Table Speed Range 3-250 RPM
Spindle Gear 2-Step
C-Axis Yes (Standard)
Live Tool Spindle Speed 50-2250 RPM
ATC Stations 16

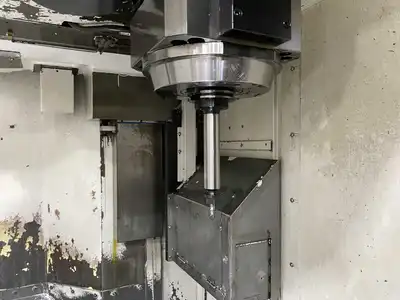

Ram Cross-Section 8.66" x 8.66" / 9.84" x 9.84" (220x220mm / 250x250mm)
X-Axis Travel 53.1" (-200 to +1150mm)
Z-Axis Travel 35.4" (900mm)
Cross Rail Travel 31.5" (800mm, 4-step x 200mm)
Rapid Feed Rate (X/Z) 394 IPM (10 m/min)
Cutting Feed Rate 0.001-500 mm/min
Feed Override 0-150%
Spindle Motor (Cont./30min) 50/60 HP (37/45 kW)
Feed Motor (X/Z) 9.4 HP each (7.0 kW)
Live Tool Motor 15/20 HP (11/15 kW)
Spindle Bearing Diameter 27.5" Timken Cross Roller
Spindle Torque 15,800-23,000 N-m
Control Fanuc 0i-TD
Floor Space (L x W) 258" x 159" (6565 x 4050mm)
Machine Height 220" (5600mm)
Machine Weight 62,400 lbs (28,300 kg)
