| Chuck / Table Dia | 32" | 812.8 mm |
| Swing | 39.4" | 1,000.8 mm |
| Work Ht-U/R | 36.4" | 924.56 mm |
| Maximum Turning Length | 37.1 in | |
| Vertical Travel X | 29.5 in | |
| Horizontal Travel Z | 23.6 in | |
| RPM | 1,500 RPM | 1,500 RPM |
| Control | CNC (Fanuc) | CNC (Fanuc) |

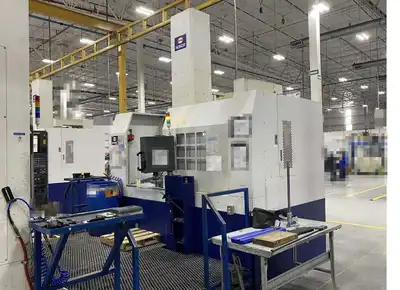

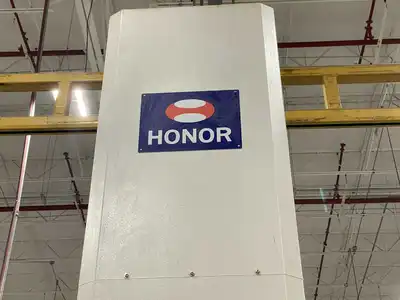

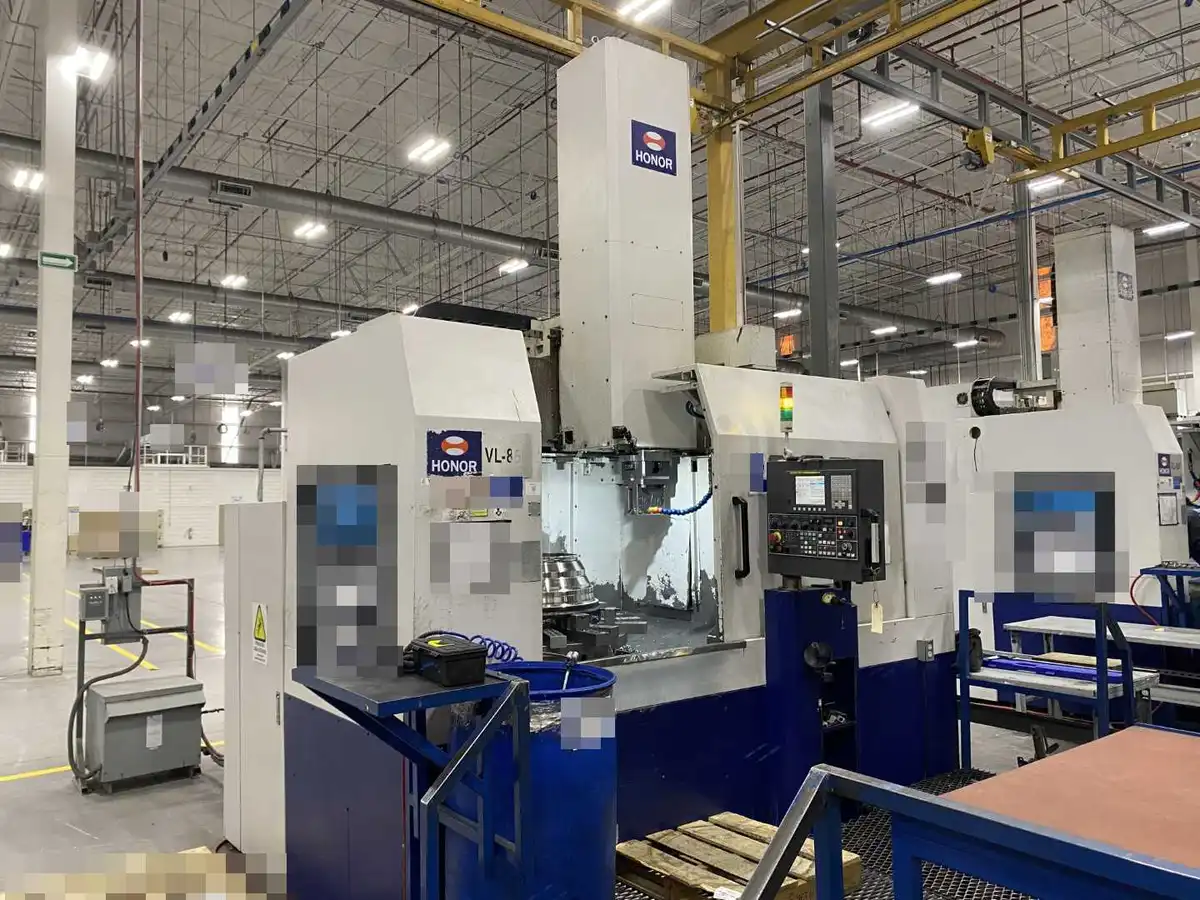

Honor Seiki VL-86C CNC Vertical Boring Mill (2016)
Control Fanuc 0i-TF
Table Diameter 32" (800mm)
Max Swing 37.4" (950mm)
Max Turning Diameter 37.4" (950mm)
Max Turning Height 25.6" (650mm)
Turret Stations 12
Table Speed 5-600 RPM (2-speed)
Spindle Motor 25/30 HP (18.5/22 kW)
X-Axis Travel 25.6" (650mm)
Z-Axis Travel 23.6" (600mm)
Rapid Traverse X/Z 590 / 394 IPM
Max Workpiece Weight 4,409 lbs (2,000 kg)
Machine Weight ~28,660 lbs (13,000 kg)

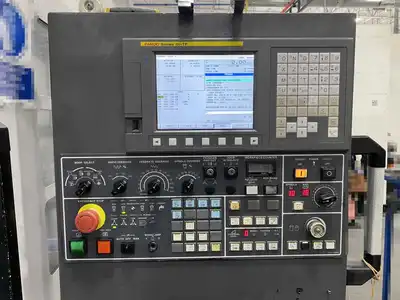

Fanuc 0i-TF CNC Control

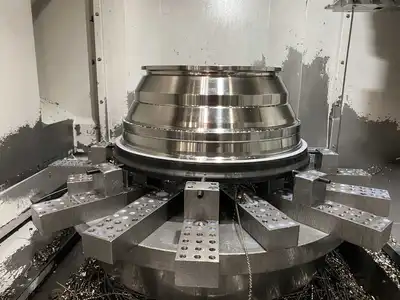

32" Hydraulic Chuck
Chip Conveyor
Fully Enclosed Splash Guard
Coolant System with Tank
Tooling
15000 Hours
