| X | 127" | 3,225.8 mm |
| Y | 66" | 1,676.4 mm |
| Z | 33" | 838.2 mm |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 30 | 30 |
| Taper | 50 | 50 |
| Table-W | 64" | 1,625.6 mm |
| Table-L | 118" | 2,997.2 mm |

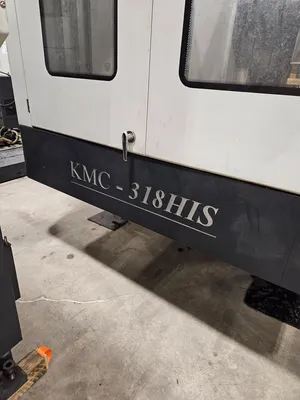

Kao Ming-318 Double Column Bridge Mill (
Table Size : 64.9" X 118"
Table Load Capacity: 22,000LBS.
Distance Between Columns: 70.86"
Spindle Nose To Table: 5.9" ~ 39.37
X - Axis Travel: 127.1"
Y - Axis Travel: 66.9"
Z - Axis Travel: 33.4"
W - Axis Travel : 0
W - Axis Positions: 0
Rapid Traverse X, Y, Z: 788 945, 591 IPM
Cutting Feed Rate: 393 IPM
Spindle Speed: 10,000
Spindle Taper: CT 50
Number Of Gear Ranges: 0
Main Motor: 45 HP
Automatic Tool Changer: 60 ATC
Tool Diameter: 5.9"
Tool Length: 13.7"
Tool Weight: 44 LBS.
Machine Weight: 37,400 LBS.

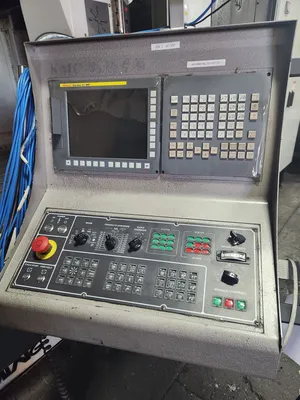

Fanuc Series OI-MF control
High Pressure Coolant Through Spindle
30 ATC
Total hours 4,035
New Renishaw Table mounted tool setter Renishaw
CMM software

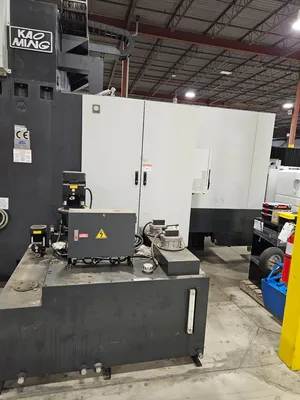

Chiller unit.
Chip conveyor
Air blast
Excellent working condition. Like new
This equipment has been sold. Similar equipment available now is shown below.
