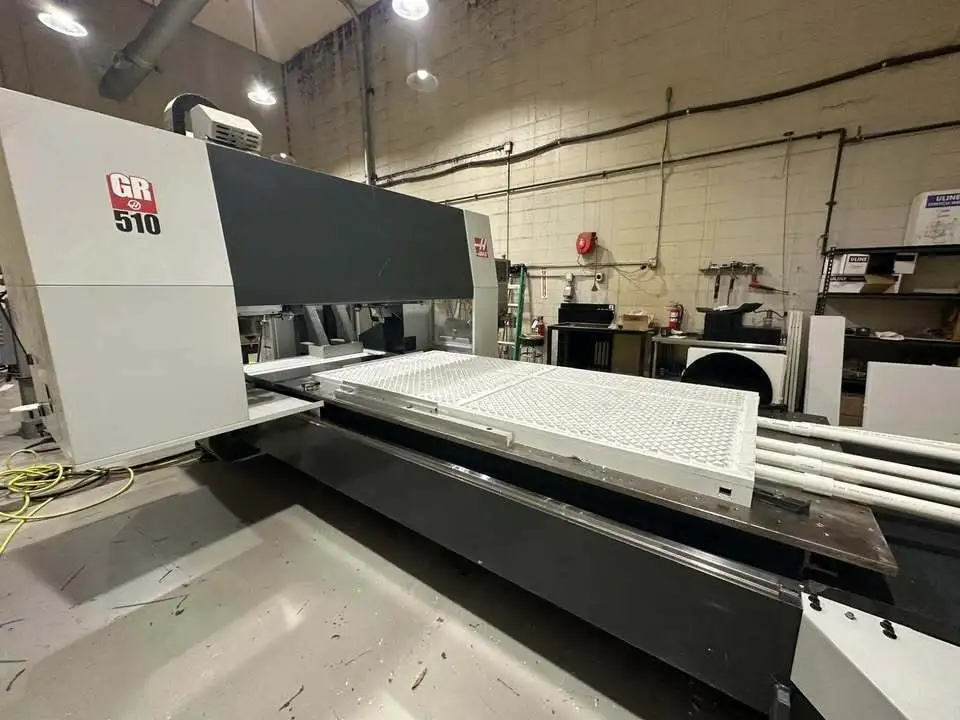

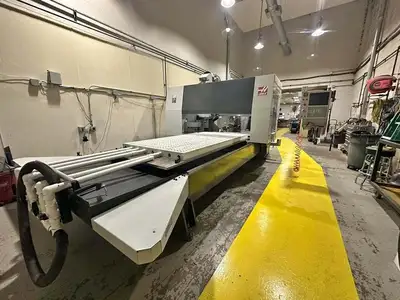

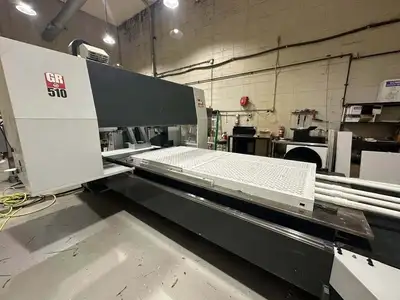

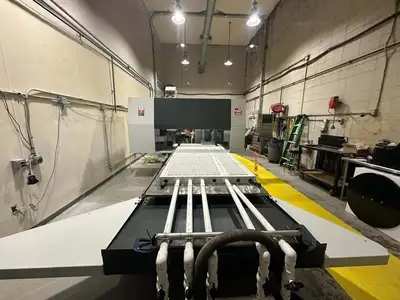

Haas GR510 CNC Gantry Router (2020)

2020 HAAS GR510 CNC Gantry Router

Specs:
X Axis Travel: 121"
Y Axis Travel: 61"
Z Axis Travel: 11"
Spindle Speed: 15,000RPM
Spindle Motor: 15HP
Spindle Nose to Table: 2.5" - 13.5"
Max Torque: 48.0 ft-lbf @ 1500 rpm
Drive System: Direct Speed, Belt Drive
Spindle Taper: CT40
Max Weight on Table (evenly distributed): 6000 LBS Distance Between Columns: 62"

Feedrates
Max Cutting: 800 IPM
Rapids on X: 800 IPM
Rapids on Y: 2100 IPM
Rapids on Z: 1100 IPM

Axis Motors
Max Thrust X: 2520 LBF
Max Thrust Y: 1020 LBF
Max Thrust Z: 2050 LBF

Tool Changer
Tool Capacity: 10
Max Tool Diameter (full): 3.5"
Max Tool Weight: 12 LBS
Dimensions: 206" x 111" x 108"
Weight: 19,400
Options:
HAAS CNC Control
Probe
Haas CNC Control
Upgraded 15,000 RPM Spindlne
Gantry Router Coolant System
Programmable Coolant Nozzle
Steel Table Inch
32 GB Expanded Memory
Second Home Position
High Speed Machining
Remote Jog Handle with Touchscreen Display
Rigid Tapping
Low Volt
Chip Tray Filter Kit
Early Power Failure Detection Module
Ethernet Interface
HaasConnect: Remote Monitoring
HaasDrop
Media Display M-Code M130
10 Pocket Carousel Tool Changer
Description:
This 2020 HAAS GR510 Router is equipped with the HAAS CNC Control, offering a wide array of options and upgrades to enhance its functionality and usability.

One of the key features of this router is the probe system, which allows for precise measurements during machining processes. With the upgraded 15,000 RPM spindle, users can achieve faster cutting speeds, making it ideal for a range of projects. The Gantry Router Coolant System is included to ensure optimal performance during extended use, while the programmable coolant nozzle enhances cooling efficiency.

The router's steel table inch ensures robust stability during operations. Moreover, the expanded 32 GB memory capacity is a valuable addition, facilitating the storage of larger programs and complex data sets. A second home position is available for increased flexibility in machining tasks.

High speed machining capabilities make this router suitable for industries requiring speed and precision. The remote jog handle, complete with a touchscreen display, offers straightforward control and easy operation. Rigid tapping feature is included for tasks needing precise threading without excessive manual adjustments.

Additional noteworthy features include a low voltage option and a chip tray filter kit for maintaining a clean workspace. The early power failure detection module adds an extra layer of security to prevent potential data loss or damage. Connectivity options are enhanced with the Ethernet interface and HaasConnect for remote monitoring. The HaasDrop feature facilitates seamless file transfers.

Media display capabilities are facilitated by the M-Code M130, allowing users to access visual media directly on the machine, enhancing operational insight. The 10 pocket carousel tool changer increases efficiency by readily providing tools during various stages of machining.
