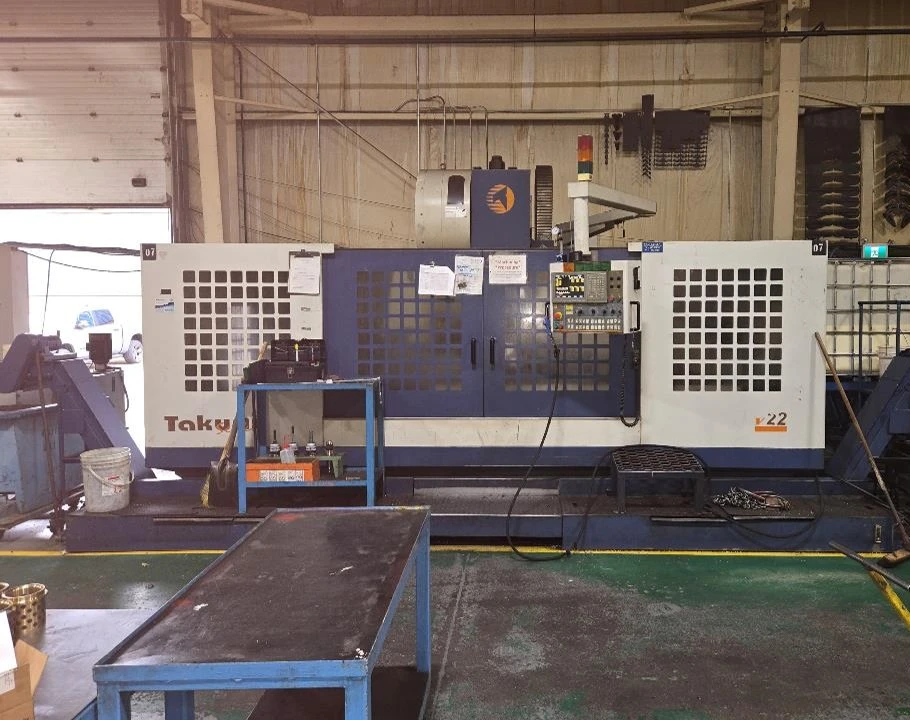

Takumi V22 Vertical Machining Center (2004)

Work Area: 86.6" x 40.35" (2,200 x 1,025 mm)
Maximum table load of 6,614 lbs (3,000 kg).
Axis Travels:
X-axis: 86.6" (2,200 mm).
Y-axis: 41.96" (1,066 mm).
Z-axis: 29.52" (750 mm).
Spindle Performance:
Speed: 6,000 RPM (gear-driven for high torque).
Power: 35 HP (26 kW).
Torque: Peak torque of 488.6 ft-lbs (662.4 Nm).
Taper: CAT 50.
Tooling: Standard 24-tool swing-arm automatic tool changer
Rapid Traverse Rate: 551 in/min (X/Y) and 472 in/min (Z).
High Rigidity: Utilizes hand-scraped contact areas and large box ways to ensure precision and dampening during heavy cutting.
Thermal Management: Includes a standard spindle chiller to dissipate heat and pre-tensioned ballscrews to minimize thermal growth.
Control System: Typically equipped with the Fanuc 0i-MF Plus control system, though older models may feature Mitsubishi controllers.
Heavy Construction: The machine has a net weight of approximately 54,013 lbs (24,500 kg), providing the mass necessary for extreme process stability.
