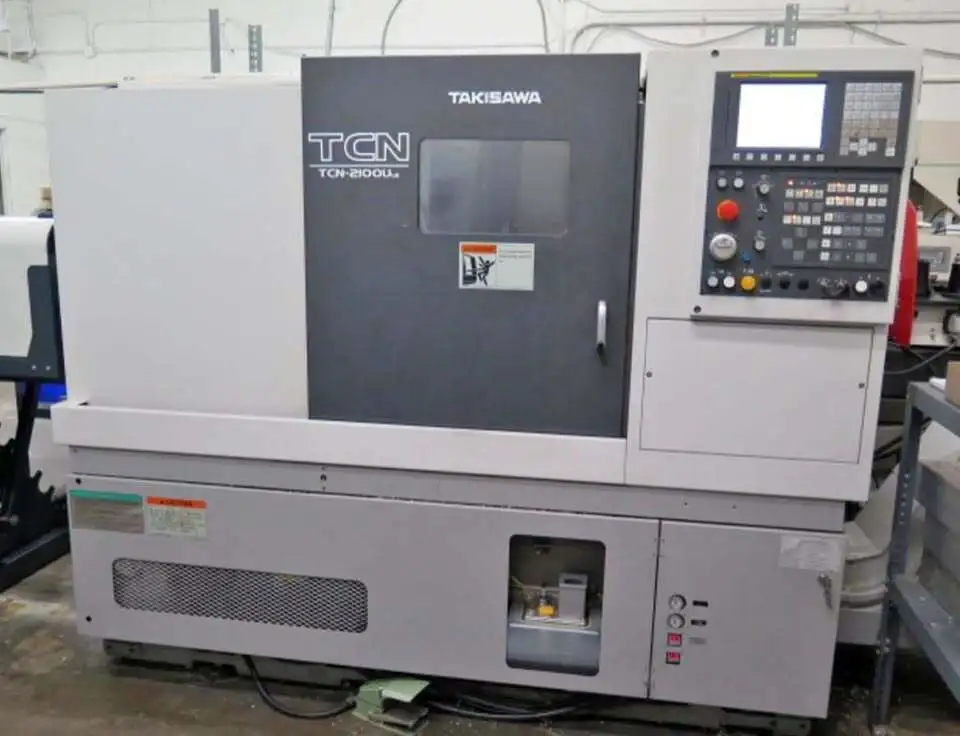

Takisawa TCN-2100U L6 CNC Lathe (2019)

Takisawa TCN-2100U L6 CNC Lathe (2019)

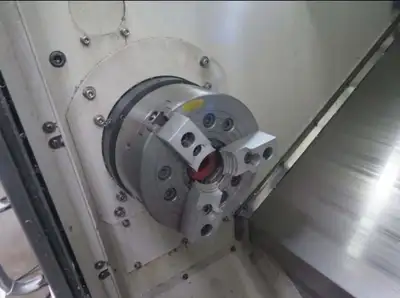

Chuck Size: 8 inches.
Max Turning Diameter: 340 mm to 410 mm (approx. 13.4" to 16")
Max Turning Length: 600 mm (23.62").
Bar Capacity: 51 mm (2.0").
Spindle Speed: Standard 3,200 RPM, with an option for 5,000 RPM.
Spindle Motor Power: 11 kW / 7.5 kW (15 min/continuous).
Turret & Motion

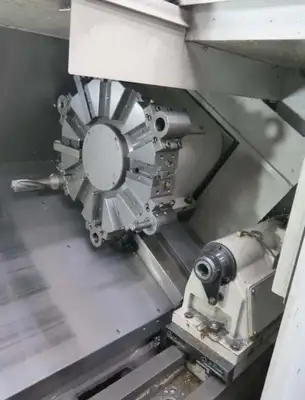

Turret Type: Direct-mount type.
Tool Stations: 8-station (standard) or 12-station (optional).
Rapid Traverse Rate: 24 m/min (
-axis) and 30 m/min (
-axis).
Slide Ways: Highly rigid rectangular box ways on all axes.
Physical Dimensions
Machine Weight: Approximately 3,200 kg (7,055 lbs).
Floor Space Required: 2,095 mm x 1,532 mm (approx. 82.5" x 60.3").
Machine Height: 1,700 mm (66.9").
