Kafo VMC-21100 84" x 40" x 30" 4 Axis Vertical Machining Center (2006)
Have one to sell?
ConditionUsed
1 available
4 Axis, 84" x 40" x 30" Fanuc 0iMC Control
Kafo VMC-21100 4 Axis Vertical Machining Center (2006)
X-Axis: 84.6″
Y-Axis: 40.4″
Z-Axis: 31.4″
Rapid Traverse Rates: 810 Inch Per Minute
Cutting Feed Rates: 630 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.9″ – 30.9″
Table:
Length: 95.2″
Width: 40.7″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 6800 lbs
Taper Size: 50
Speed Range: 7000 RPM
Spindle Power: 30 HP
Tool Changer Capacity: 30
Max Tool Weight: 18 lbs
Max Tool Dia: 5.9″
Max Tool Length: 11.8″ Tool Changing Time: 1.5 Seconds

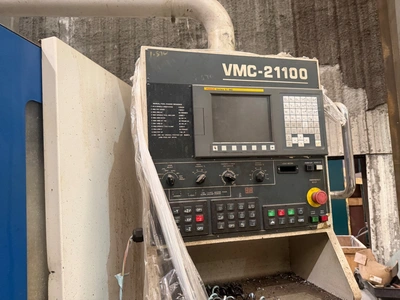

Fanuc 0iMC Control

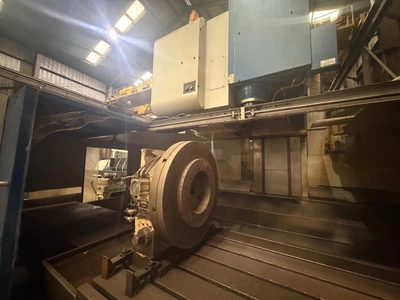

4th Axis Rotary Table
Thru Spindle Coolant
