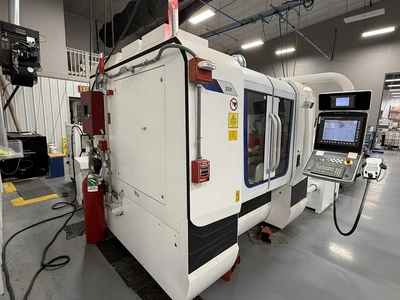

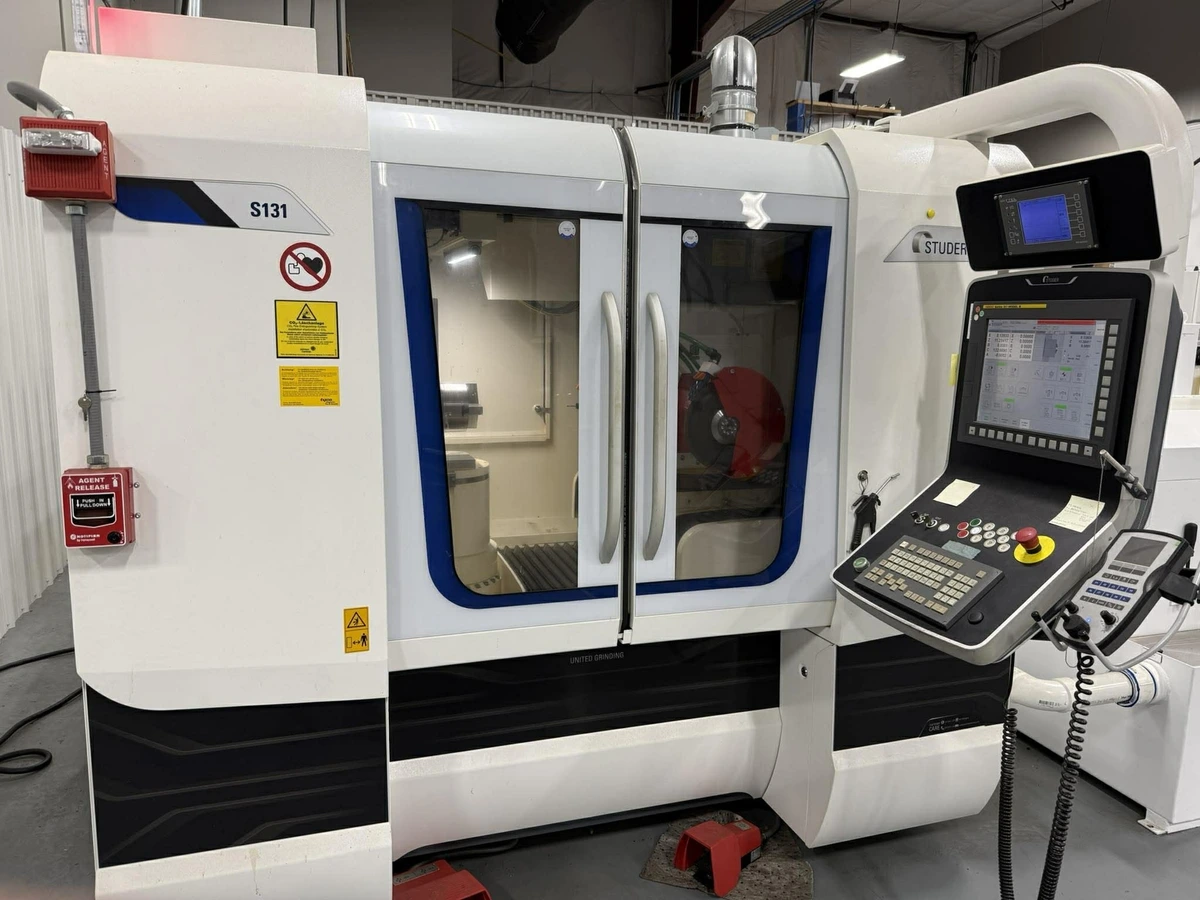

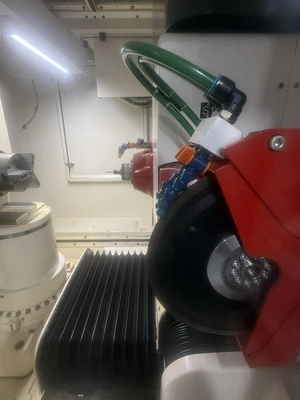

The compact machine shows its strength with flange parts and smaller workpieces of all types. It has a host of sophisticated technical features such as the revolutionary StuderGuide® guideway system, high-precision axis drives with linear motors, extremely fast direct drive of the grinding spindle turret, automatic swiveling of the workpiece table etc.
Linear Axes:
Max. Travel X - 13.8 inch
Max. Travel Speed X - 787 inch/min
Max. Travel Z - 15.7 inch
Max. Travel Speed Z - 787 inch/min
Spindle Drive:
Max. Spindle Power - 20 hp
Max. Number Of Revolutions - 120'000 rpm
Max. Grinding Wheel Diameter - 10 inch
Max. Grinding Wheel Width - 1 inch
Swiveling Axes:
Swiveling Range B - 330 deg
Swiveling Range C - ∞ deg
Workpiece Data:
Workpiece Length - 11.8 inch
Workpiece Diameter - 9.8 inch
Max. Workpiece Weight - 220 lbs
Center Height - 4.9 in
