Bendmak Pro60 2" x 2" x 1/4" Angle Bending Roll (2025)

Bendmak Pro60 Angle Bending Roll (2025)

GENERAL SPECIFICATIONS
Capacity 2" x 2" x 1/4"
Roll Diameter: 6.96”
Shaft: 60/60 MM
Bending Speed: 6.4 M/Min
Motor Power: 5.36 HP
Length: 55.11”
Height: 60.23”
Width: 45.27”
Weight: 2,380 LBS
Shaft Diameter 60 mm (2.36")
Roll Diameter 177 mm (6.96")
Bending Speed 6.4 m/min (approx. 21 ft/min)
Motor Power 4 kW (5.36 HP)
Machine Weight 1,080 kg (approx. 2,380 lbs)
Dimensions (W x L x H) 940 x 1260 x 1390 mm
Standard Features

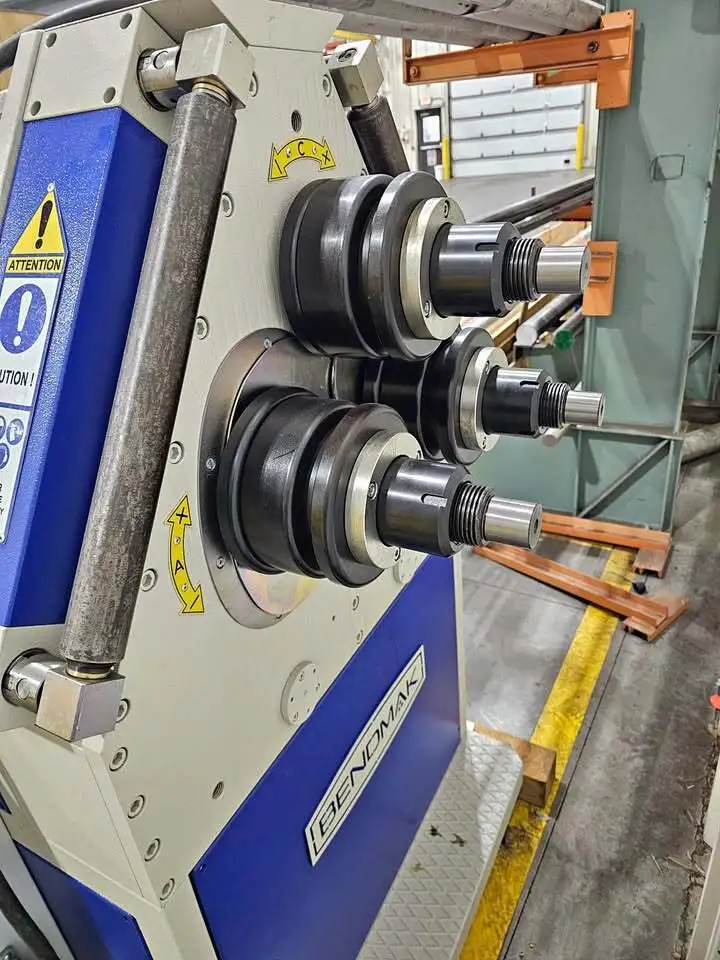

Drive System: All three rolls are motorized, driven by a hydraulic motor and planetary gearbox system.
Adjustment: Two bottom rolls are hydraulically moveable up and down independently for pre-bending.

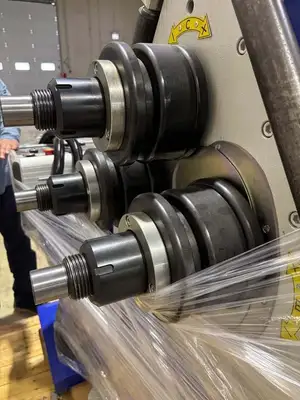

Guide Rolls: Manually adjustable in two directions to facilitate angle bending and reduce deformation.

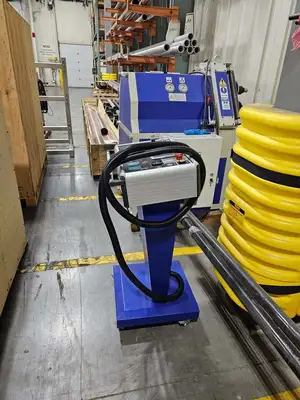

Control: Comes with a separate, moveable control panel equipped with a digital readout to track the position of the lower rolls.
Durability: Shafts are made of special steel, induction hardened, and ground for high bending momentum.

Bending Capacities
The machine is typically rated for:
Angle Iron: Approximately 2" x 2" x 1/4" (50x50x6 mm).
Flat Bar: Hard way capacity of approximately 2-3/8" x 3/8".
Materials: Suitable for bending tubes, profiles, T-angles, I-beams, and square/round bars with optional special rolls.
