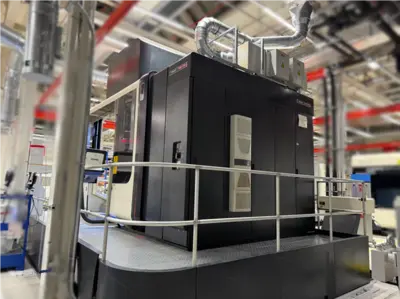

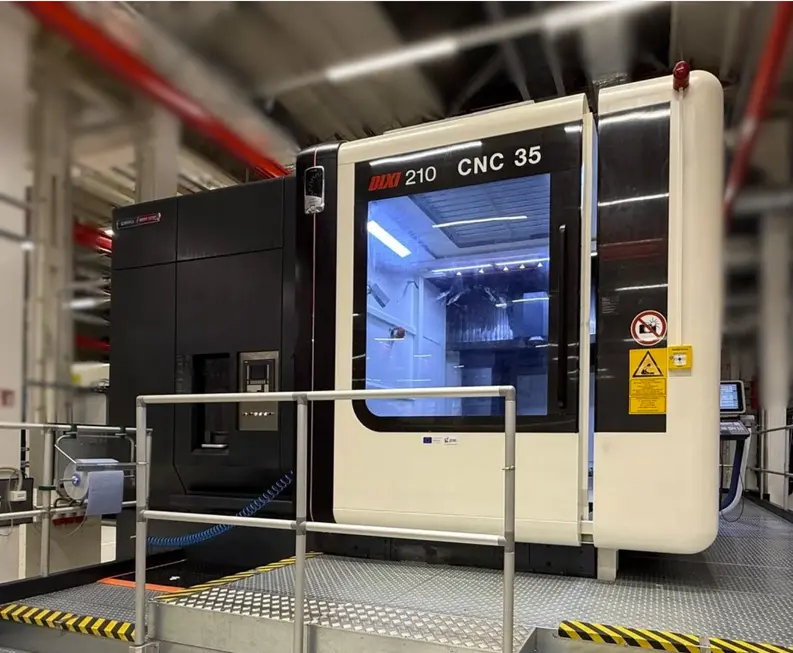

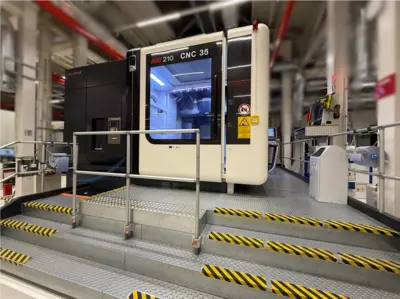

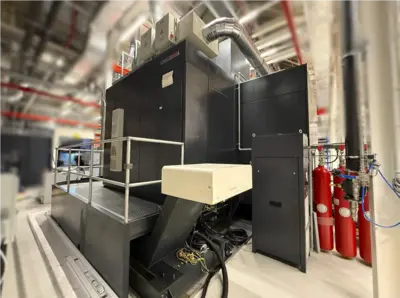

DMG MORI DMU 210P duoBlock 5 Axis Universal Machining Center (2013)

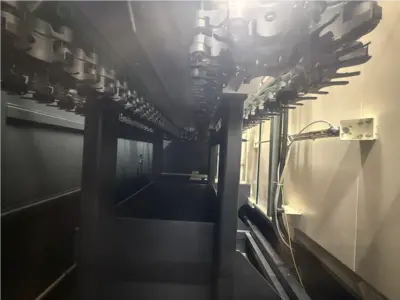

DMG MORI DMU 210P duoBlock 5 Axis Universal Machining Center (2013), 5 Axis, 120 ATC, 82" x 82" x 49", 18000 RPM

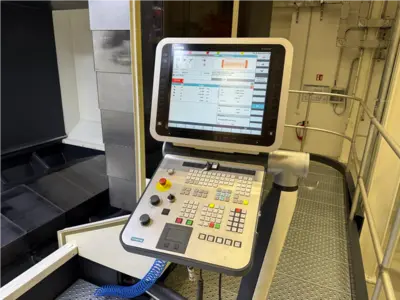

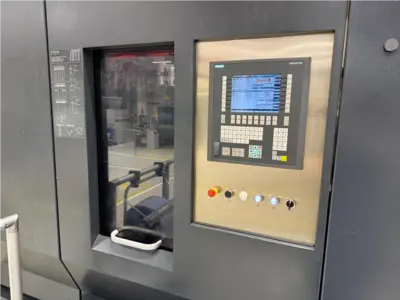

- Siemens 840D SL

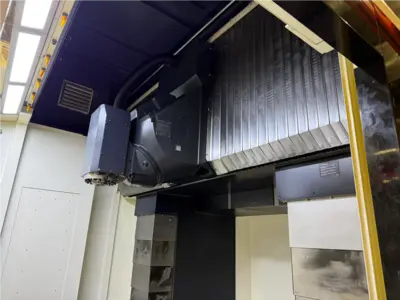

- Universal milling head with controlled B-axis
- NC rotary table with cooled drive train
- In-process tool measurement, type: BLUM Laser NT Hybrid
- Coolant supply 40 bar through the spindle center
- Coolant tank 2,500 l
- Chip conveyor
- Rotating inspection window
- Electronic handwheel
- 3D path control
- Infrared measuring probe, Renishaw PP60 optical (OMP
60)
- 3D quickSET
- 4-color signal tower
- Rinse gun with pump
- Operating mode 4
- Machine adaptation for aluminum and glass machining,
comprising:
- Linear guides with additional Viton wipers
- Ball screws partly with additional Viton/felt wipers
- Sealing air for all linear measuring systems
- Lubrication interval reduced to 10 to 15 minutes (overgreasing)
- Adjustment of the maintenance plan for steel covers
- Interface for camera monitoring and integration into the
control system
- Machine equipped for vacuum operation, including:
- 2-channel rotary union, special centering bush and cable
conduit in T-slots to the table edge
- Additional compressed air connection at the table plate
edge (opposite vacuum port)
- Integration of vacuum monitoring with terminals for NC
stop and error message "Vacuum error"
- Oil-resistant rubber hose secured by 2 clamps at the rotary
union
- Evaluation of "minimum level" error in feed and spindle
stop
- Monitoring of coolant flow for internal and external supply
- Machine prepared (cable routing) for use of spindle
growth sensor (SGS)
At the beginning of 2025, the ball screws and linear guides
in X, Y, and Z axes were replaced.

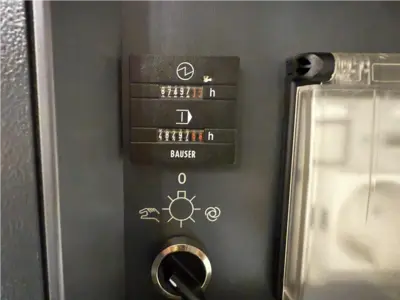

Operating hours: approx. 87,327 h
Spindle hours: approx. 48,297 h
