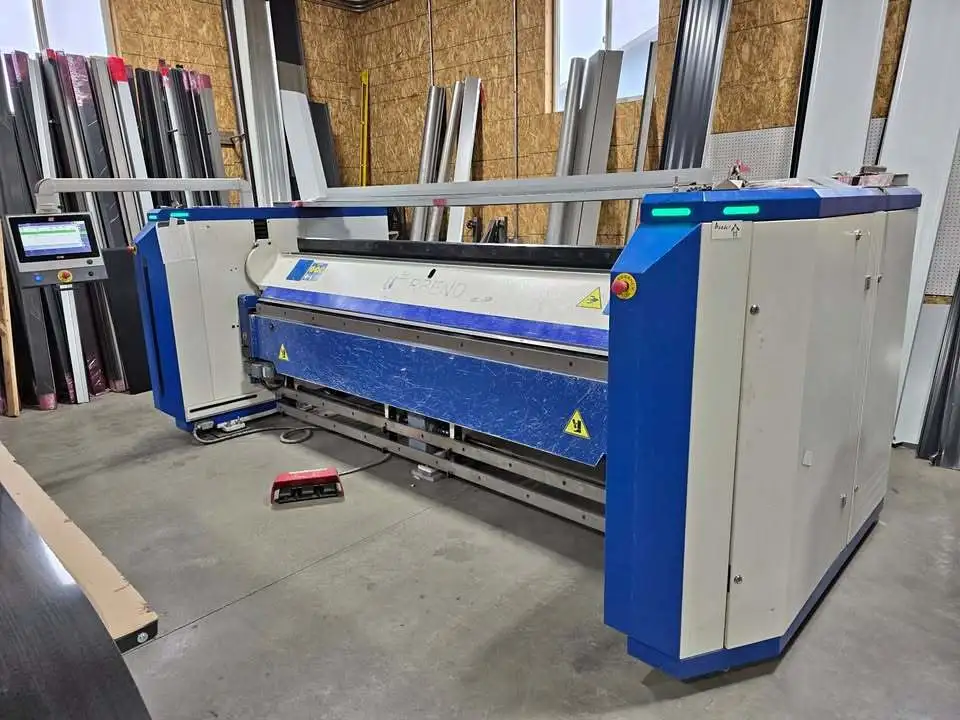

Erbend MFD 3220 CNC Folding Machine (2021)
Have one to sell?
ConditionUsed
1 available
12 Guage x 10', Combi Function, Like New Condition, The Erbend rotating combi beam gives the machine lightning-fast automatic tool changes. This gives the ability to have a 30° sharp tool for linear bends and segmented tooling for four-sided forming at the same time
Erbend MFD 3220 CNC Folding Machine (2021)
Max. Sheet Length: 126″
Capacity:
Mild Steel: 14 Gauge (2mm)
Stainless Steel: 18 Gauge (1.2mm)
Aluminum: 11 Gauge (3mm)
Clamping Beam (Z-Axis):
Drive Power: 2 HP
Opening Height (No Tools): 6.3″ (160mm)
Clamping Speed: 2.36″ /Sec.
Folding Beam (Y-Axis):
Drive Power: 4 HP
Folding Angle: 0 – 150°
Folding Speed: 65° /Sec.
Folding Beam Adjustment (A-Axis):
Adjustment Height: 1.37″ (35mm)
Adjustment: Manual
1M Backgauge System (X-Axis):
Drive Power: .53 HP
Speed: 9.8″ /Sec.
Gauging: 0.078″ Min. – 39.37″ Max.
Clamping Beam Rotation (C-Axis):
Rotational Speed: 20° /Sec.
Standard Features:
AC motorized drive X, Y, Z, C-Axis (clamping, folding, backgauge, clamp rotation)
15.6″ touchscreen controller on swivel arm with ERFOLD BASIC CNC line-by-line and 2D software control
Flat rail bottom beam tool for feather grooves
COMBI clamping beam with two tool stations
Clamping beam open height 6.29″ (160mm)
(90mm) high goats foot tools on station one
R1 or 20° sharp nose clamping beam tools on station two
Folding beam tools, two sets: .59″ (15mm) & .98″ (25mm)
Manual folding beam adjustment 1.38″ (35mm) (A-Axis)
Front light barriers
LED function lights (red, green, & blue)
Three switch foot pedal
Dimensions
175 x 87 x 75 in.
Weight
10,141 lbs.
