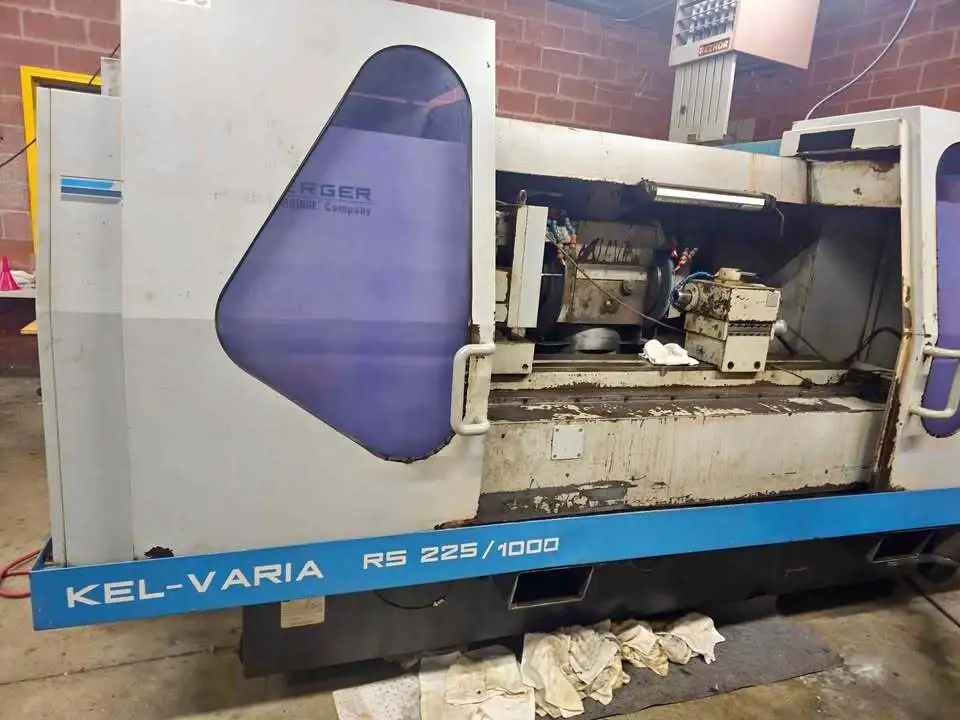

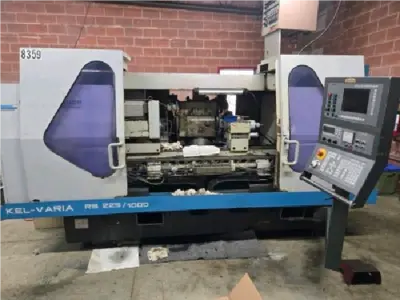

Kellenberger Kel-Varia RS 225/1000 CNC Cylindrical Grinder

Kellenberger Kel-Varia RS 225/1000 CNC Cylindrical Grinder

Model: KEL-VARIA RS 225/1000
Control: Kelco 90

Center Height: 8.85” (225 mm)
Max. Swing: 17.7” (450mm)
Max. Between Centers: 39.4” (1000 mm)
Grinding Length: 39.4” (1000 mm)
Weight of Workpiece: 330 lbs (150 kg)
Workhead Spindle Speed: 1220 RPM
Grinding Wheel Diameter: 19.6”
LONGITUDINAL SLIDE: Z-Axis
Travel: 45.27”” (1150 mm)
Rapid Traverse Speed: 15 m/min
Swiveling range of upper table: 9/9/7 deg.
WHEELSLIDE: X-Axis
Travel: 12.59” (320 mm)
Rapid Traverse Speed: 7.5 m/min

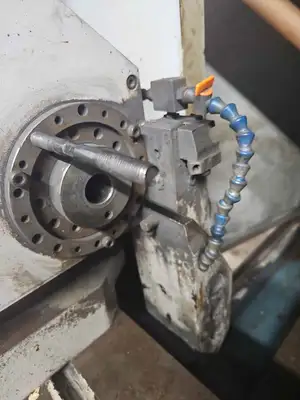

Workhead:
Rotational spindle speed: 8 – 800 rpm

Tailstock:
Internal taper: MT4
Retraction of sleeve: 1.96” (50 mm)

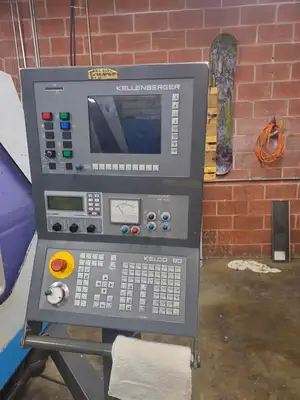

CNC Control: Kelco 90

Measuring System:
Gap Control: KEL-TOUCH
Active. Long. Positioning: Movomatic
Passive Long. Positioning: Movomatic

Approx. Dimensions: 142” x 81”
Approx. Weight: 9,200 lbs
