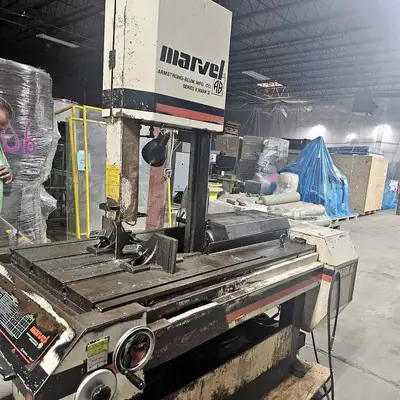

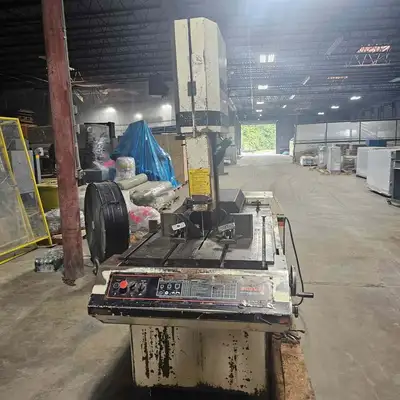

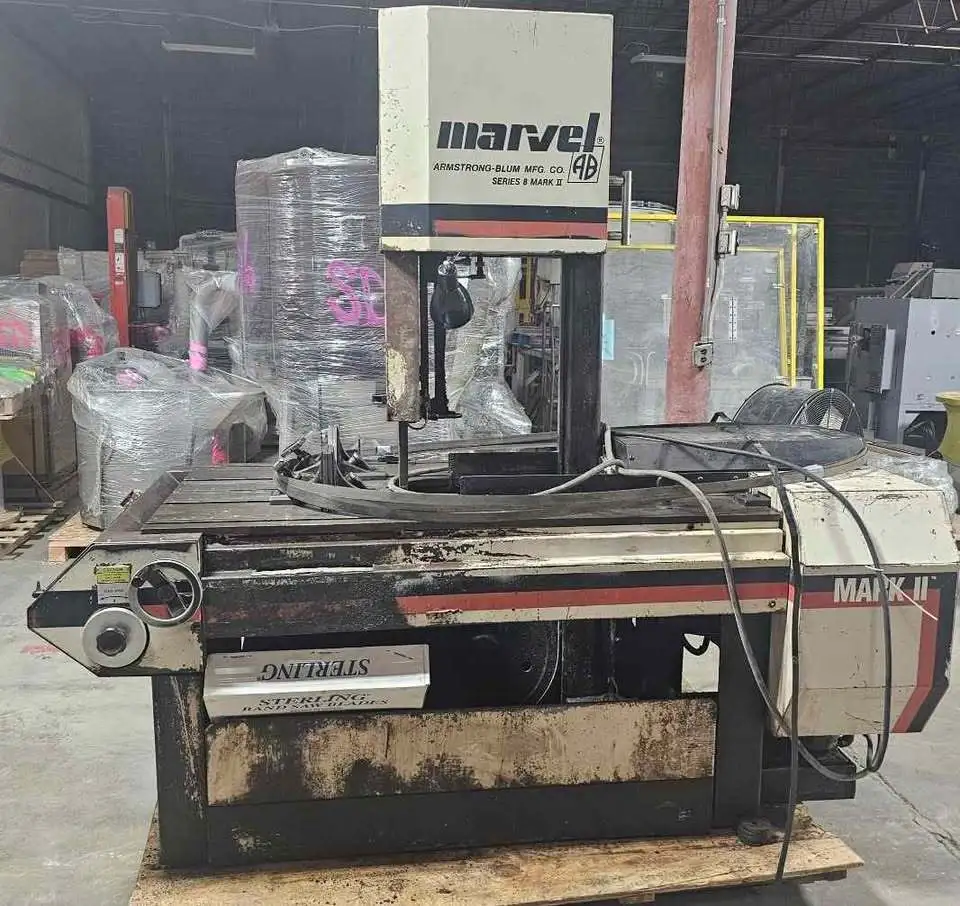

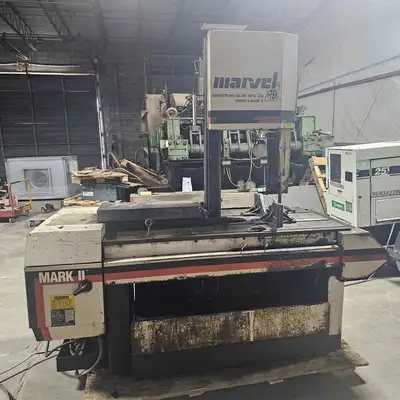

Marvel Series 8 Mark II Vertical Band Saw (1995)
Have one to sell?
ConditionUsed
1 available
Marvel Series 8 Mark II Vertical Band Saw (1995)
Capacity @ 90 deg.: 18 x 22″
Capacity @ 45 deg.: 12.75″ x 17″
Max tilt to right: 45 degree
Max tilt to left: 45 degree
Throat depth: 18″
Throat height: 22″
Blade speeds: 40 – 450 FPM infinitely variable
Blade dimensions: 14’6″ x 1″ x .035″
Blade guides: Carbide
Blade drive type: Motor to pulley
Blade tension: Manual
Coolant type: Flood
Motor horsepower: 2 HP
Voltage: 230/460 volt
Currently wired: 230 volt (full load amps at 230v = 9)
Wheel diameter: 18″
Working surface of table: 24.25″ x 33″
Working height: 35″
Dimensions: 90″ L x 49″ W x 85″ H (94” H on skid)
Weight: 2,870 lbs.
•Manual column tilt 45 degrees left to right
•Full coolant system
•Manually operated table vises
•Manual blade tension (with racket handle)
•Saw head infeed can be operated with power feed or use of hand wheel
Extra blades included.
