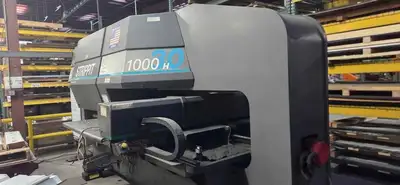

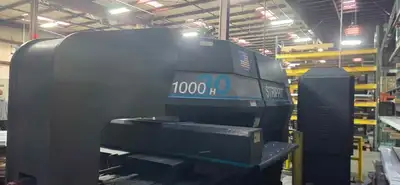

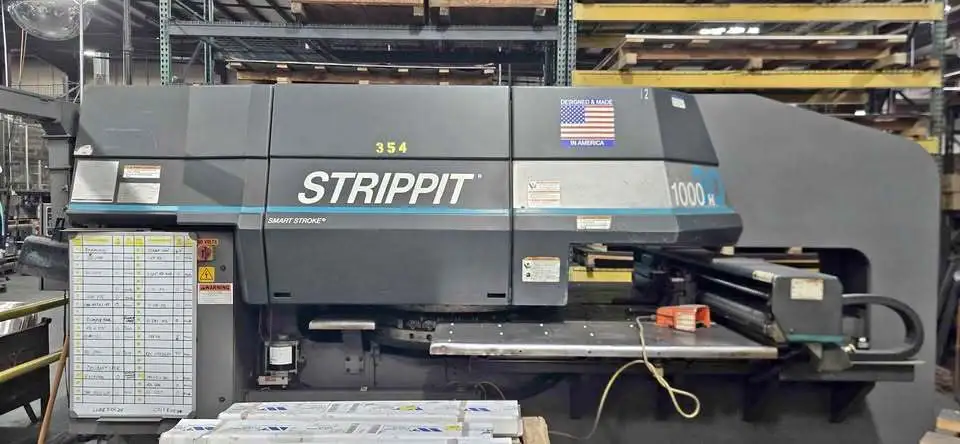

Strippit FC1000H/30 CNC Turret Punch (2000)

Strippit FC1000H/30 CNC Turret Punch (2000)

Tonnage............................... 33 Tons
Maximum Stock Thickness............... 0.250"
Feed Clearance........................ 0.866"
Turret Drive Bi Directional........... 40 Stations (6 @ 3.5", 34 @ 1.25")
One Station Index Time................ 0.9 Sec
Normal Stock Size..................... 40" X 50"
W/Progr. Move.................. 40" X 100"
Hole Punch Capacity:
3.5" Dia In 10 Gage Mild Steel
1.625" Dia In .250" Mild Steel
Maximum Workpiece Weight.............. 226 Lbs
Production Rate....................... 440 Hpm On 1" Moves
Combined Axis Speed................... 3933 Ipm
Maximum X-Axis Travel................. 51.25"
Maximum Y Axis Travel................. 43.875"
Hydraulic Press Drive................. 30 Hp
Approximate Machine Weight............ 29,000 Lbs
Overall Floor Space (Including Controls)..... 196" X 256" W X 91" H
