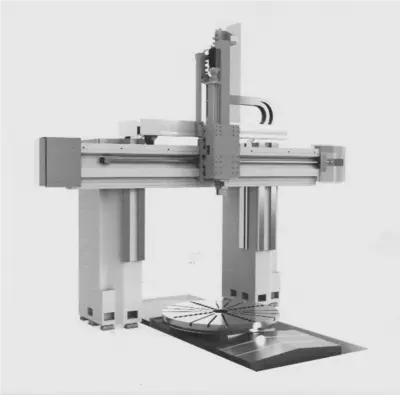

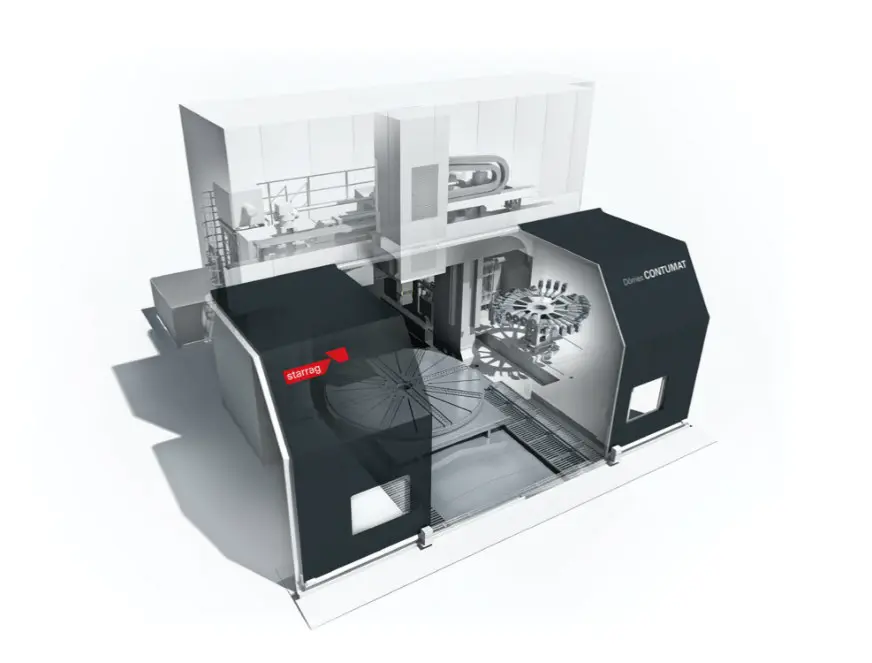

Starrag Dorries 2VC2800/280MC-FC-V Contumat High-Production 4/5 Axis Vertical Turning Center
Have one to sell?
ConditionUsed
1 available
4/5 Axis, 110" Table, 131" Swing, 122" Under Ram, Siemens CNC. This is not a machining centre with a turning table but a real high power, heavy duty vertical turning machine with the high power turning table on guideways to provide a Y axis and with the option of a CNC swiveling head for huge 5 axis work. (this head is available at additional cost).
This configuration enables the machine to turn a round component to its maximum diameter and machine a square component to a similar dimension – and many more possibilities in between
For large precise and complex components in these industries this is the perfect ‘one stop’ machine
Defense, Aero Engine, Nuclear, Turbines, Rail, Oil and Gas, Pumps, Gearboxes, Rockets etc.
Starrag Dorries 2VC2800/280MC-FC-V Contumat High-Production 4/5 Axis Vertical Turning Center
Table diameter 2800mm (110.23”) with 4 independent jaws
Swing 3350mm (131.88”)
Maximum table load 35 tonnes
Maximum height under ram 3100mm (122”)
Main drive motor 2 x 60Kw
Table speeds 1.6-180Rpm (infinitely variable in 2 ranges)
Cutting force on turning tool 50Kn
Ram section 250x250mm (9.84x9.84”)
Live spindle drive motor 30Kw
Live spindle speeds 20-4000Rpm (infinitely variable in 2 ranges)
Through spindle coolant
Dorries-Scharmann Milling System: System 250-2
Milling spindle holder HSK-A100
TOOLING - Angular milling head + 8 modular heads + tool setting head + driven lathe tool holders
Z-AXIS (Ram traverse) 1500mm (59.06”)
C-AXIS (table rotation for milling) Speed 0-3Rpm
C-AXIS Circular feed 0.001-1080 degrees per minute
X-AXIS (Saddle traverse along cross rail) 1550mm (61.02”) left / 1950mm (76.77”) right
Saddle cross-feed rate – infinitely variable up to rapids 18m/min
Y-AXIS (Table traverse) 2800mm - 1400mm each in/out from centre (enabling off-centre machining)
V-AXIS (Crossrail rise fall for positioning) in increments of 100mm (3.94”) - total 900mm (35.43”)
Crossrail rise and fall traverse speed 425mm/min
Electrics
Operating voltage 380/415v (via transformer) or 460v (without transformer)
Control voltage 24vDC. Frequency 50Hz Total connected power load approximately 175Kva
ABB ROBOT ARM TOOL CHANGE SYSTEM
Loads + unloads modular heads/driven lathe tool holders etc up to 65Kg individual weight
Equipped with an extensive range of Tooling & Spares.
Price includes
- new safety guarding, installation on customers foundation, commissioning and testing
- 12 months warranty with service checks at 6 and 12 months
