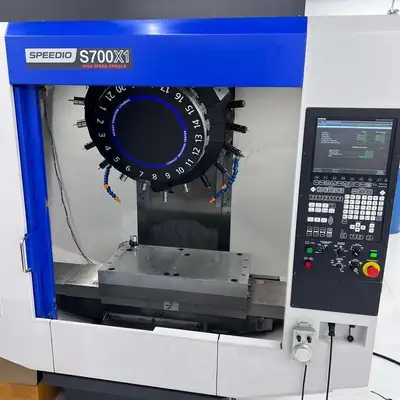

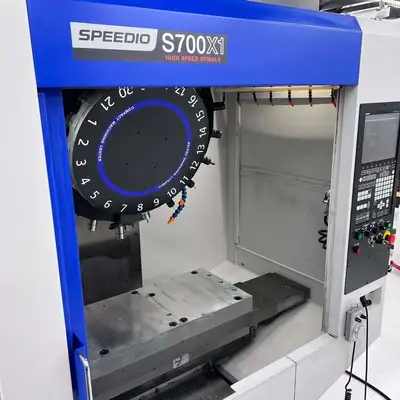

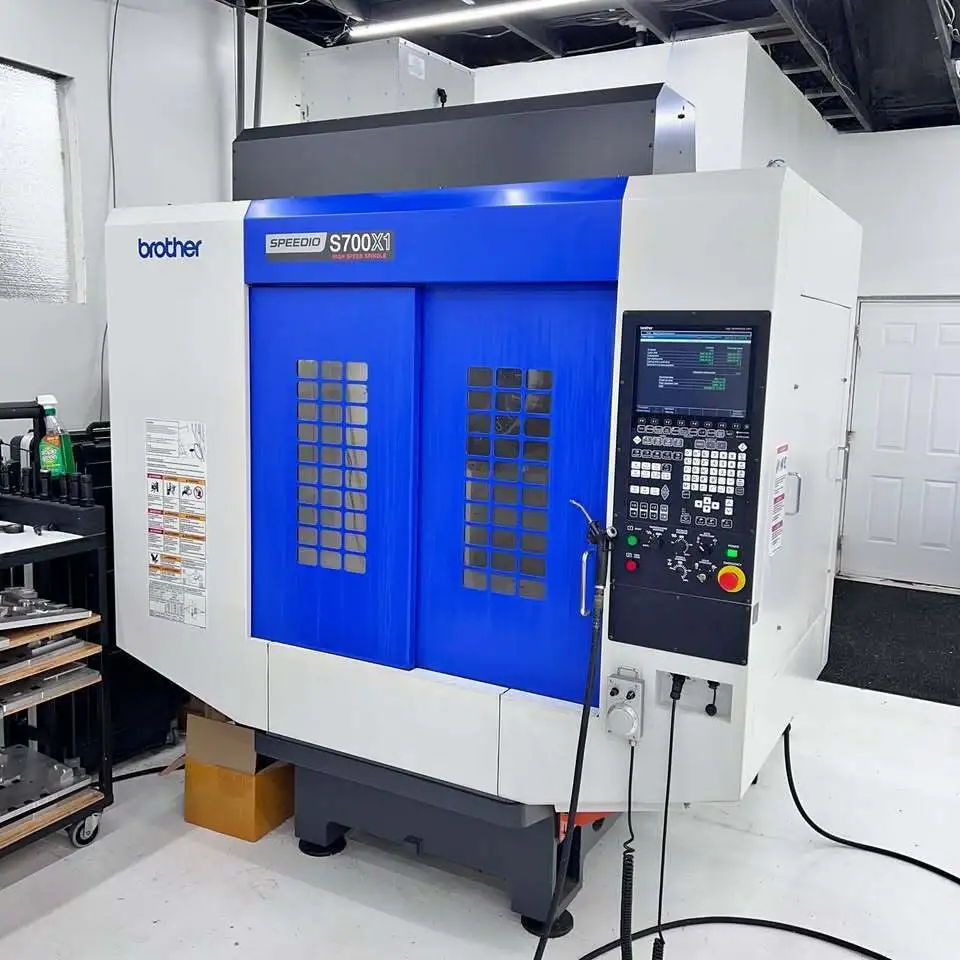

Brother Speedio S700X1 High Speed Vertical Machining (2020)
Have one to sell?
ConditionUsed
1 available
Very Very Low Hours, 27000 RPM, Show Room New, 3-axis CNC mill with 27,000 RPM spindle. This Japanese mill is one of the most capable high-speed 30-taper production mills available, with extremely fast rapids and tool changes. Engineered for modern high-speed machining and years of production work
Brother Speedio S700X1 High Speed Vertical Machining (2020)
Travels:
X: 27.6
Y: 15.7
Z: 11.8
Distance Tabletop to Spindle Nose: 7.1″-18.9″
Table Work Area Size: 31.4 x 15.7″
Max Load Capacity: 661 lbs
Spindle Speed: 27,000 rpm
Tapping Speed: 8000 rpm
Spindle Taper: BT30
Rapid Traverse X & Y Axis: 1969 ipm
Rapid Traverse Z Axis: 2204 ipm
Tool Pull Stud: MAS P30T-2
Tool Storage: 21
Tool Change Time tool to tool in seconds: .8
Tool Change Time chip to chip: 1.4 Motor (10 min/cont.): 11.8/8.4 hp For Axis Feed
X&Y: 1.34 hp For Axis Feed Z: 2.68 hp
Machine Weight: 5291 lbs
Floor Space Required: 80.7″ x 87.4 x 98.3h

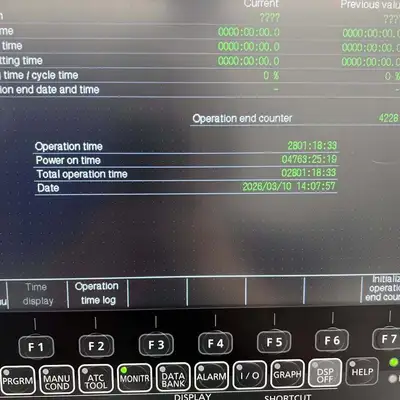

2800 Hours,
Brother C00 control with built-in PLC
27,000 RPM spindle
03/2020 build date
Cut aluminum and plastic only its entire life
Ran Synergy 735 coolant its entire life

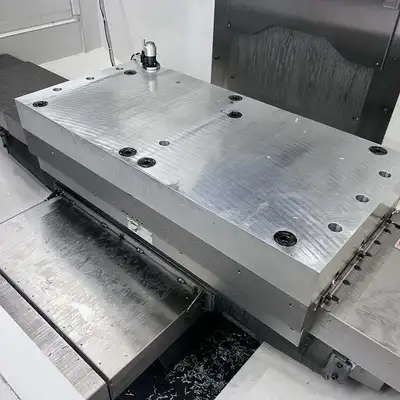

Original machine table has never been used Table was protected with LPS-3 and covered with a fixture plate

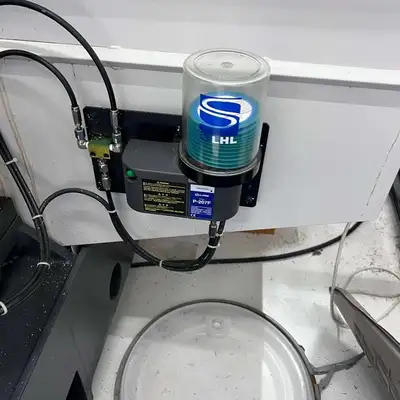

Auto grease lubrication system

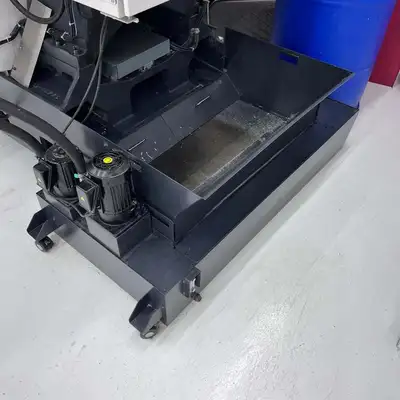

150L coolant tank with chip shower
High Accuracy Mode BII
Safety door interlock system
Manual pulse generator
2-light work light kit
Shower gun
Metrol TM26D-01 tool setter with 60 mm rise
Top cover

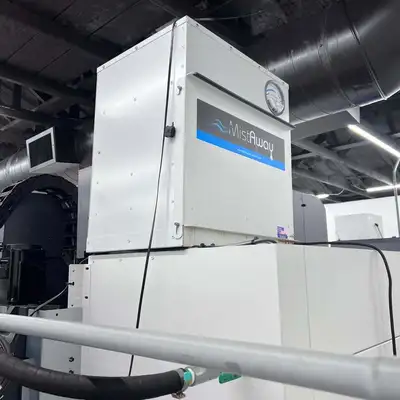

MistAway MA700C coolant mist collector, 700 CFM
Tooling:
ER and SK/BT30 toolholders available with the machine for an additional $1,000.
