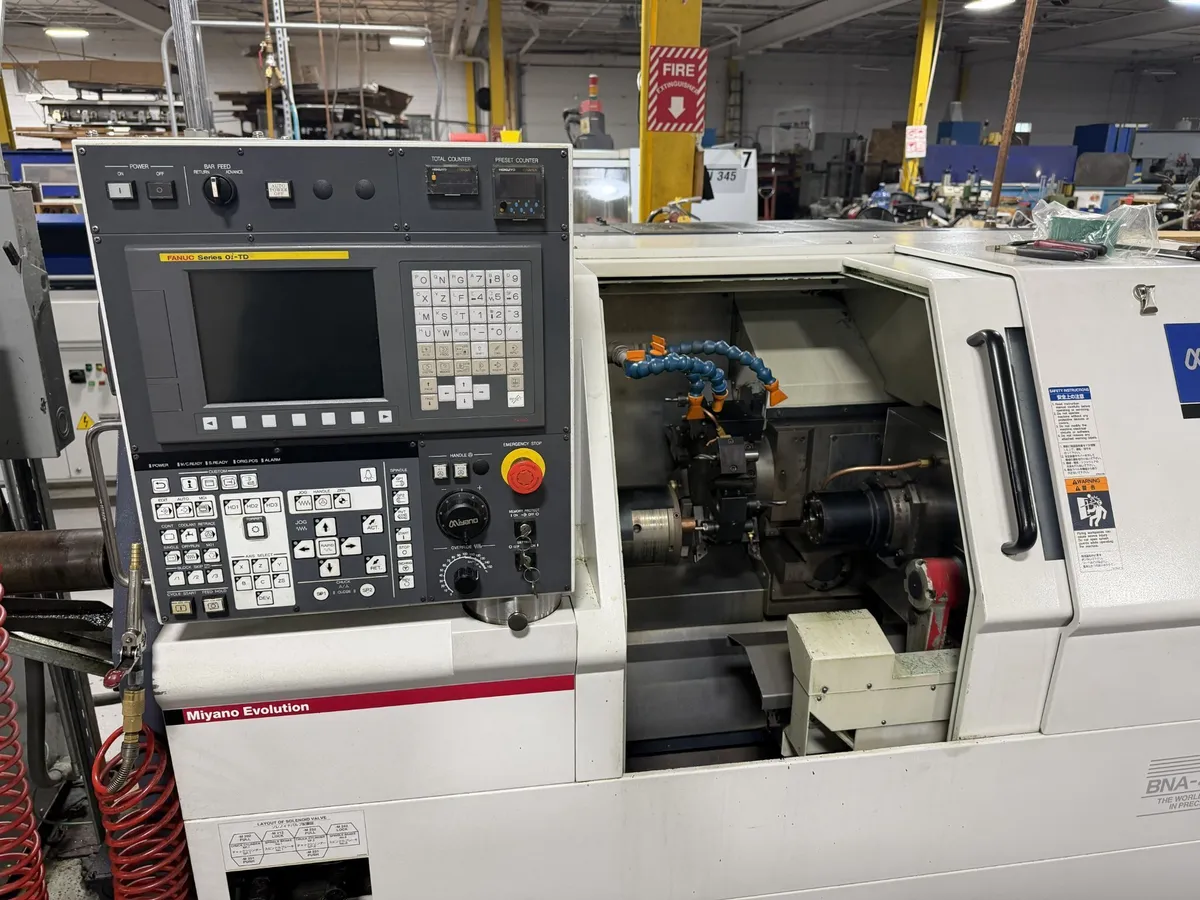

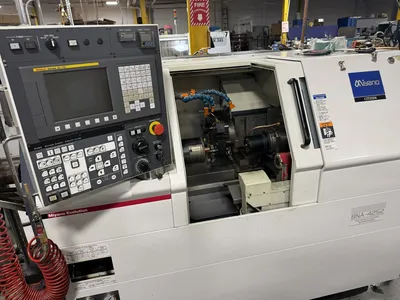

Miyano Model BNA-42S2 Live Tool CNC Lathe with Sub Spindle (2015)
Have one to sell?
ConditionUsed
1 available
Iemca Boss 545 Barfeed
Chip Conveyor
Miyano Model BNA-42S2 Live Tool Sub-Spindle CNC Lathe
Chuck Size: 5"
Bar Capacity: 1.5"
Power: 10 hp
Machining Length: 3.93"
Spindle Speed: 6,000 RPM
Spindle Motor: 10 HP
maximum bar diameter SP1: 42mm
maximum bar diameter SP2: 34mm
standard machining length: 100mm
number of spindles: 2
draw tube diameter SP1: 43mm
draw tube diameter SP2: 30mm
rapid feed rate X1 axis: 20m/min
rapid feed rate Z1 axis: 20m/min
rapid feed rate B axis: 20m/min
live tool motor: 2.8/1.0kW (16 Nm)
Chip Conveyor
Iemca Boss 545 Barfeeder
Live Tooling
Sub Spindle
