(3) Available, New (2023) Never Used

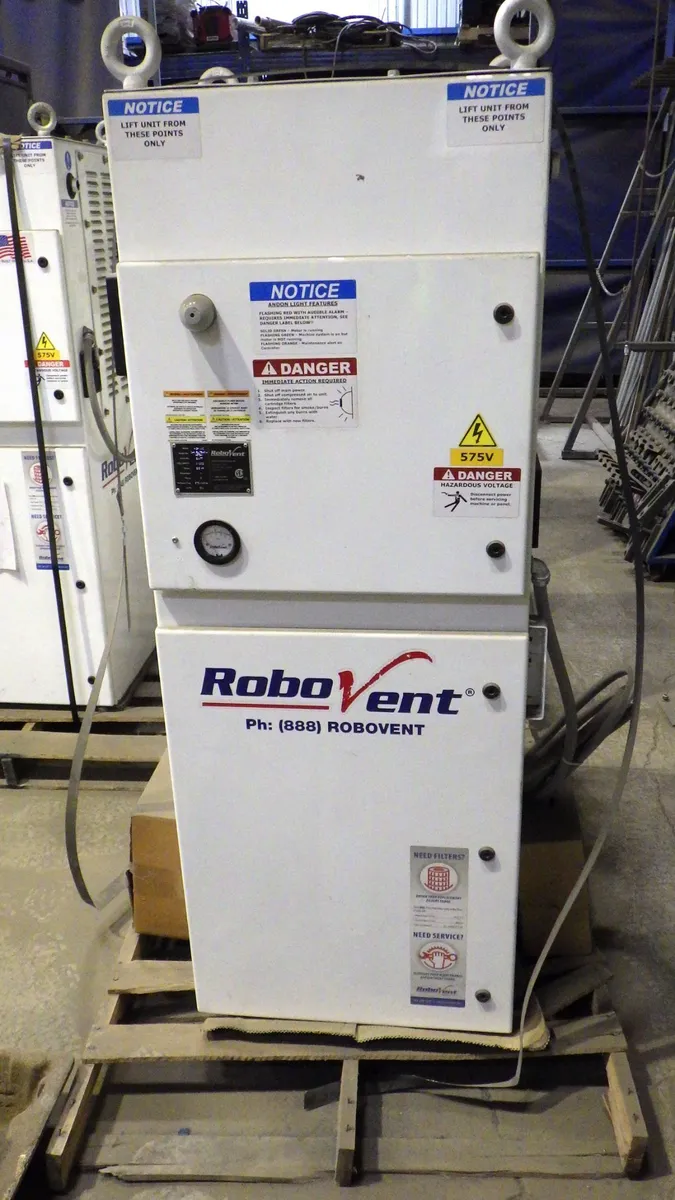

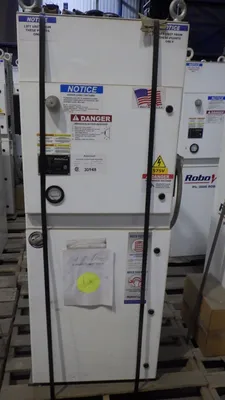

Robovent High Vac C-HVE-175-80 High Vacuum Extractor (2023)
(3) Available, New (2023) Never Used
Filter Cartridges: (1) PL-14D26-A15-SF
Media Area: 233 sq. ft.
Weight: 650 lbs.*
Regenerative Blower: 5.5HP Single Stage
Maximum Airflow: 140 CFM
Maximum Vacuum: -76in WG
Voltage & Current: 240 V = 16.8 FL Amps
480 V = 8.4 FL Amps
575 V = 7.0 FL Amps
Intake: 3-inch Diameter Air Inlet
Clean Air Exhaust
B Filter Access Door
C Motor (enclosed)
D Compressed Air
& Solenoid Access
E Hopper with
20-Gallon Drum
F Exhaust Silencer
G Air Inlet (3" Diameter
Motor Controls: Motor Starter, Overload & Disconnect all included
in controls system, only connection to power supply required, making
installation simple and fast
Automatic Filter Cleaning System: Pulse solenoid valve, nozzle,
& air tank, with associated pressure differential sensor, enables the
responsive filter cleaning in relation to level of accumulated dust,
to save air consumption, energy costs & increase filter life
Blower Inlet Flow Relief Valve: Prevents harmful overpressure
developing at the blower if flow becomes obstructed, preventing
damage to the blower
Heavy Duty Construction: Fully welded 7 & 11 gauge steel,
Polyester powder coat inside & out, enhances plant aesthetics
& provides excellent equipment durability
HDH Hopper: Hopper & duct Inlet all-in-one with dropout feature
to protect filters from larger debris. 20-gallon containment.
Vertical Filter Design: Filters load evenly and easily shed dust
right into the containment area, increasing media usage, effectiveness
& filter life.
Exhaust Silencing: Blower muffler minimizes generated noise
& increases operator comfort (10 to 15 dB(A) sound level
reduction approx.)
eDriveā¢: Built-in VFD adjusts to compensate for filter loading, only
connection to power supply required, making installation simple & fast
ePad Controls: A simple, integrated control system at your fingertips
PleatLock A15 Filters
Snaplock Filter Clamps
