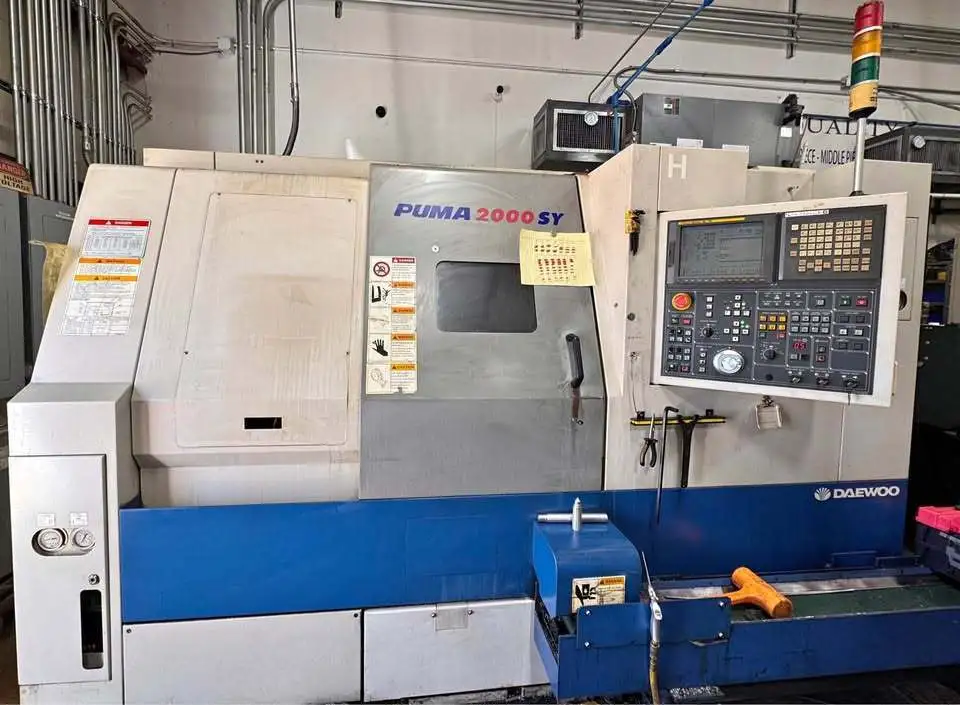

Doosan Puma 2000 SY Live Tool CNC Lathe

Max. Turning Diameter: 13″
Max. Swing over Bed: 23.6″
Distance between Spindles: 33.8″
Max. Turning Length: 20.10″
Max. Bar Capacity: 2.625″
X-Axis Travel: 33.8″
Y-Axis Travel: 9.84″
Z-Axis Travel: 22.8″
X Rapid Traverse Rate: 740 Inch Per Minute
Z Rapid Traverse Rate: 945 Inch Per Minute
Spindle Bore: 3.0″
Main Spindle Nose: A2-6
Sub Spindle Nose: A2-5
Main Spindle Speed: 45-5,000 RPM
Sub Spindle Speed: 60-6,000 RPM
Main Spindle Power: 20 HP
Both Spindle Indexing: 0.001 Degree
Power Source: AC 200/220 V, Three Phase, 50/60 Hz
Weight : 11000 lbs Approx.
Overall Dimensions: 120″ x 67″ x 88″ High
