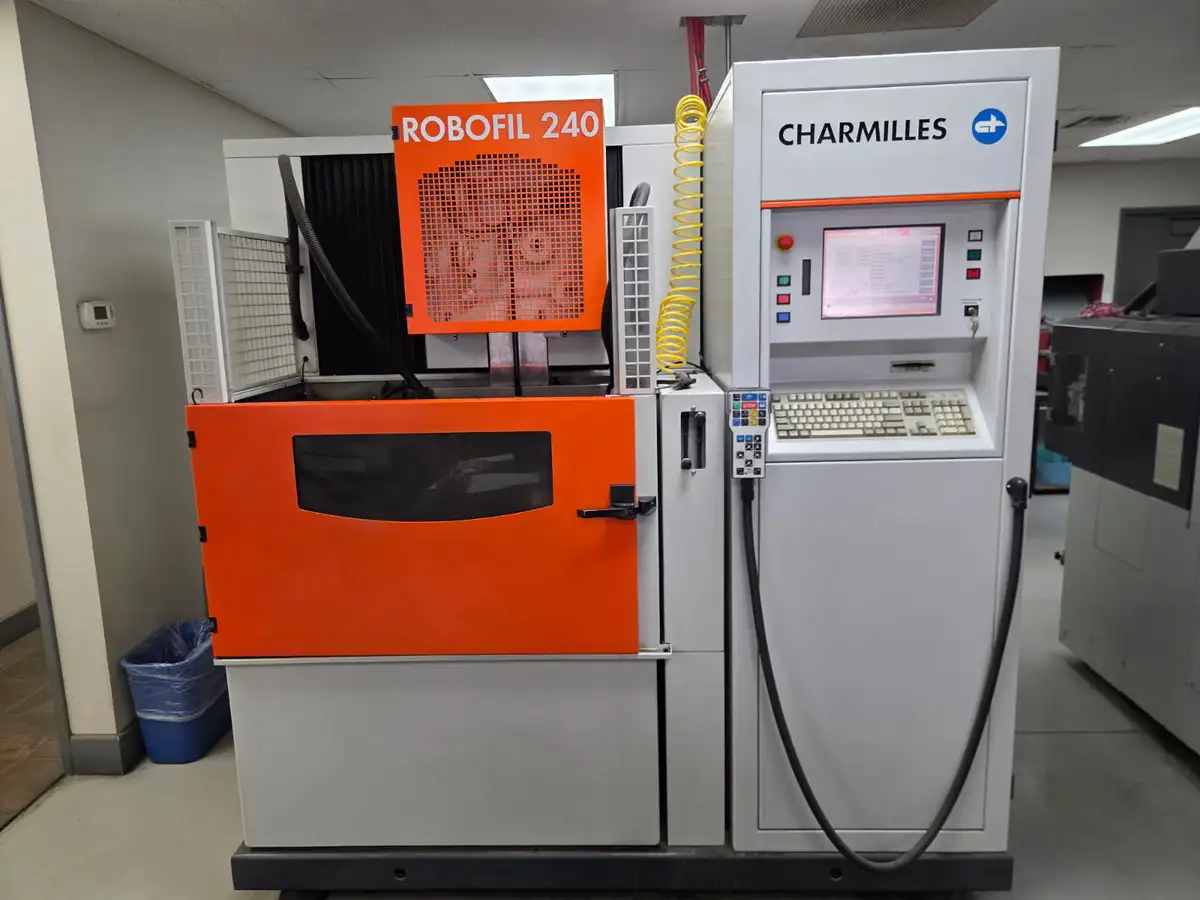

Charmilles Robofil 240 CNC Wire Type EDM (2002)
Have one to sell?
ConditionUsed
1 available
CNC Wire Type, 17,000 HOURS
Charmilles Robofil 240 CNC Wire Type EDM (2002)
Max Workpiece Dimensions: 39.37" x 21.65" x 8.66"
Table Size: 26.77" x 17.72"
Floor to Table: 39.37"
Front Door Dimensions: 32.28"
Max Workpiece Weight: 1,653 LBS
Machining Travels ( X, Y & Z ) 13.77" x 8.66" x 8.66"
Travels (U & V): 13.33" & 8.66"
Wire Diameter Capability: .004" - .012"
Taper Capacity Standard: 0 - 30 Degrees
Max. Taper deg/inch +/- 45 @ 8.66
Dielectric Capacity: 201 GAL
Approximate Machine Weight (Dry): 5400 LBS
Approximate Machine Dimensions: 79.53" x 80.71" x 78.74"
17000 Hours
