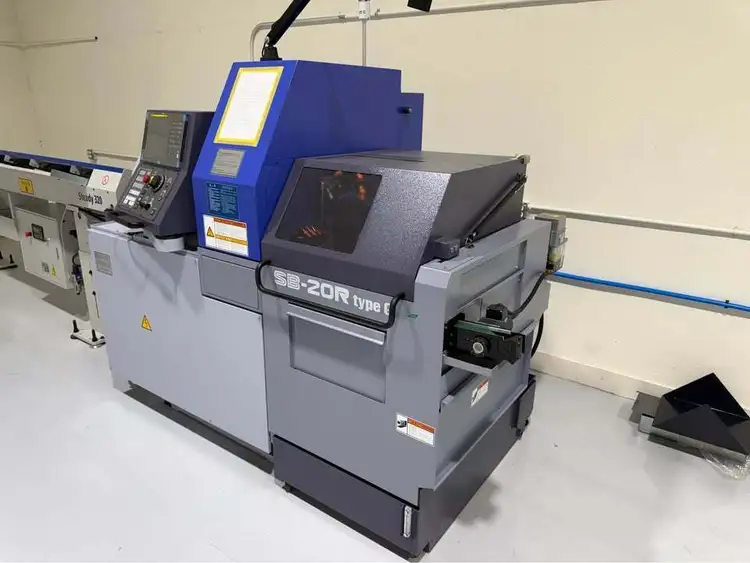

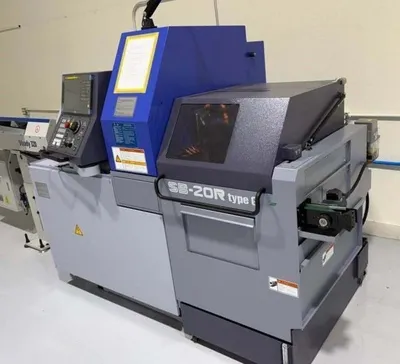

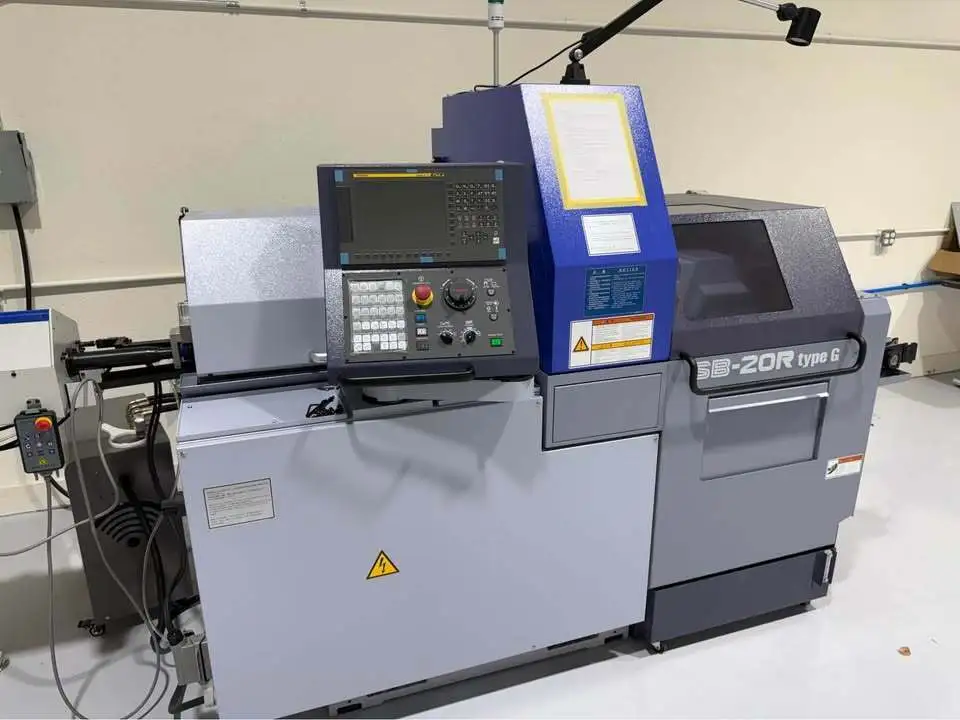

Star SB-20RG Swiss Type CNC Lathe (2025)
Have one to sell?
ConditionUsed
1 available
Capacity:
Max Machining Diameter: 0.79"
Max Headstock Stroke: 8.0"
Max Bar Capacity: 0.79"
Max Tool Capacity: 24 Tools
Main Spindle Turning Tool Max. Drilling Capability: 0.47"
Main Spindle Turning Tool Max. Tapping Capability: M10 x P1.5
Main Spindle Power Driven Tool Max. Drilling Capability: 0.275/ER16
Main Spindle Power Driven Tool Max. Tapping Capability: M6 x P1.0
Back Spindle Max. Chucking Diameter: 0.79"
Back Spindle Stationary Tool Max. Drilling Capability: 0.31"
Back Spindle Power Driven Tool Max. Drilling Capability: 0.23
Back Spindle Power Driven Tool Max. Tapping Capability: M5 x P0.8
Spindle:
Main Spindle Indexing: 360
Main Spindle Bore: 0.79"
Main Spindle Speed: 10,000 RPM
Main Spindle Motor: 3.7 kw
Back Spindle Speed: 9,000 RPM
Back Spindle Motor: 1.1 kw
Turning Tools:
Turning Tools: 6
Front 4-Spindle Sleeve Holders: 4
Rear 4-Spindle Sleeve Holders: 4
- Fanuc Oi-TF Plus Series CNC Control
- Controlled Axes (Liner Axes) X1, X2, Y1, Z1, Z2

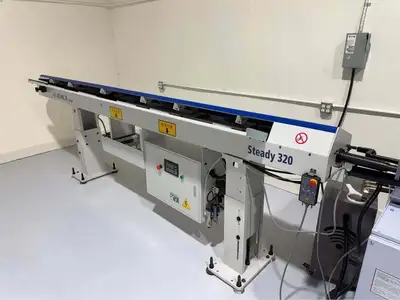

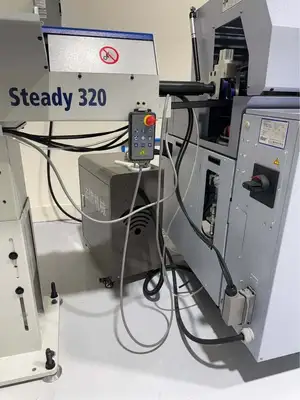

- Comes with IEMCA Steady 320 Bar Feeder
- Back Spindle
- Live Tools Capable
- Long Parts Capable
- C & Y Axis Capabilities
- MPG Control
- Main & Back Spindle Synchronization
- High Speed Rapid Travers: 1378 IPM
- Automatic Centralized Lubrication System
- Parts Conveyor
- Pneumatic Unit
- Door Interlock System
- Broken Cutoff Tool Detector
- Parts Ejection Detector
- Coolant System
