| size | 10" Chuck | 10" Chuck |
| Swing | 11.02" | 279.91 mm |
| Machining Length | 14.96" | 379.98 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.25" | 57.15 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 11.02" | 279.91 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Control | CNC | CNC |
| Weight | 12500 | 12500 |

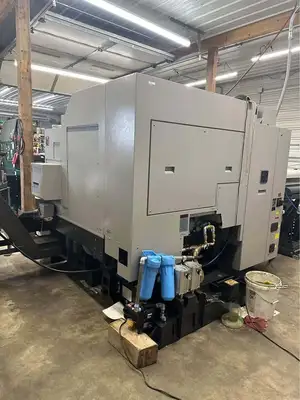

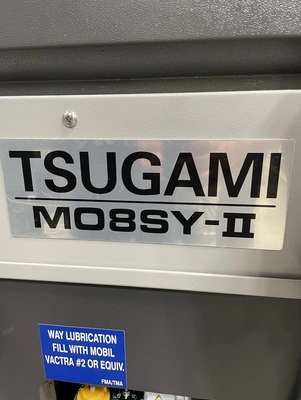

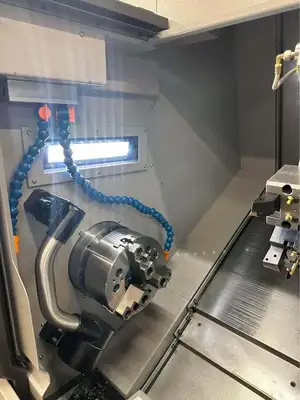

Tsugami M08SYII Live Tool Y Axis CNC Lathe with Sub Spindle (2022)
Specifications:
Max. Machining Diameter 280 mm (11.02")
Max. Machining Length 380 mm (14.96")
Distance Between Spindles 508mm (20.0")
Max. Chuck Size 8"
Max. Spindle Speed 200 to 4,500 Rpm
Sub-Spindle Speed 200 to 4,500 Rpm
Main Spindle JIS A2-6
Main Spindle Bore 2.87"

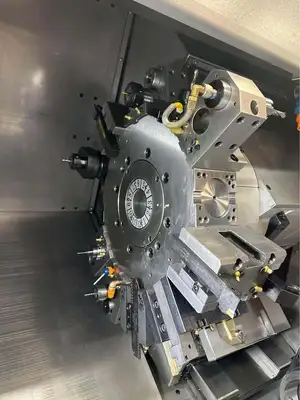

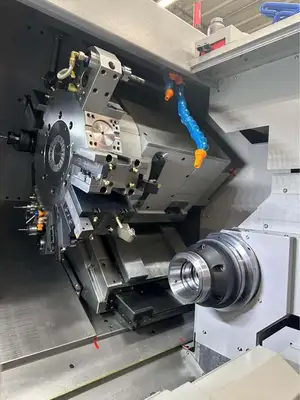

No. of Turret Stations 12
Main Live Tool Speed Up to 5,000 Rpm
Main Motor 7.5/11 Kw
Rapid Traverse Rate: X-Axis 24 Mm/min
Y-Axis 12 Mm/min
Z-Axis 30 Mm/min

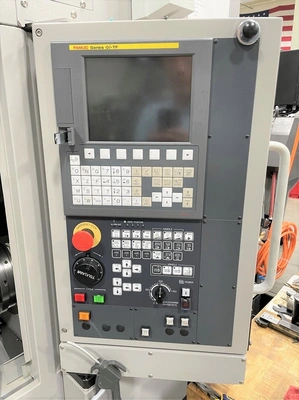

Fanuc OiTF Cnc Control
Sub-Spindle
Live Milling
Tool Presetter

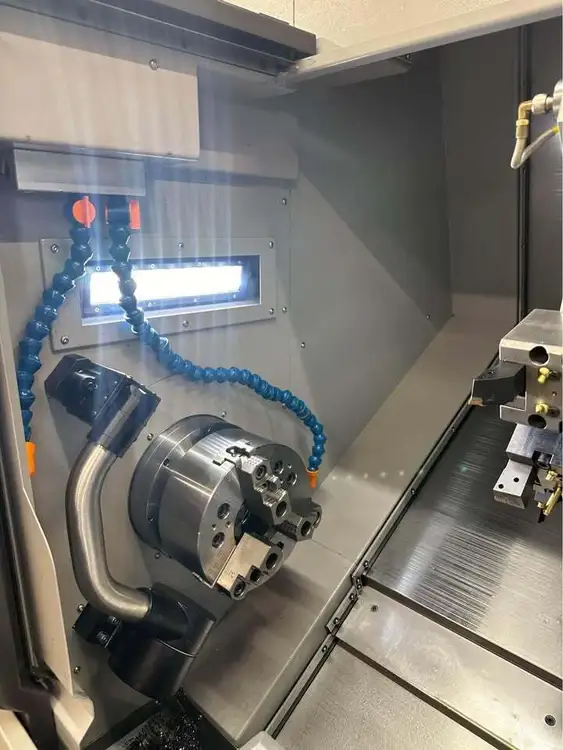

3 Jaw chuck on Main & Collet Chuck on Sub Spindle
Number of Stations 12
Lns Turbo Chip Conveyor

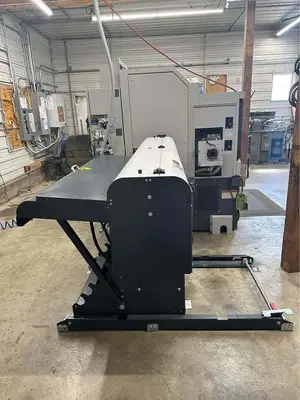

LNS Barfeed

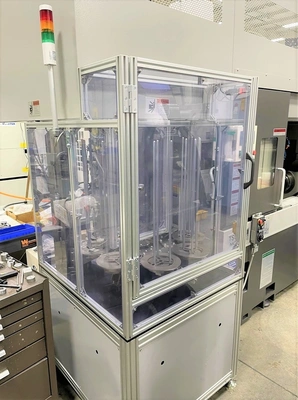

Mist-fit Misting unit
3-Jaw Chuck
Coolant
Y-Axis
Misc. Tooling
C-Axis on Main & Sub Spindle
Chuck Size 8 inch
Weight 13,007 lbs, 5,900 kg
Width x Depth x Height 97.24″ x 72.83″ x 75.98″(2,470 x 1,850 x 1,930mm)
Royal QG-65 collet chuck for main and sub spindles
