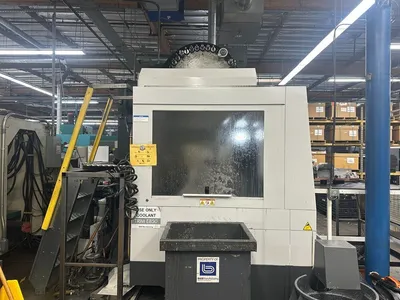

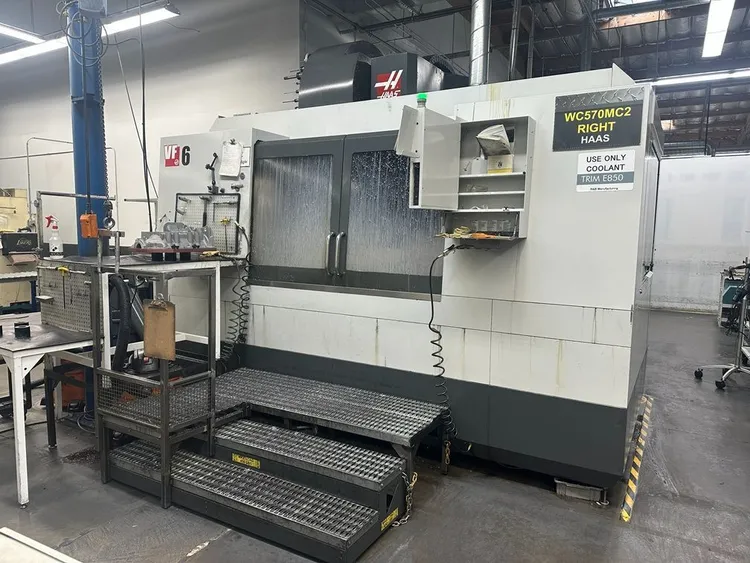

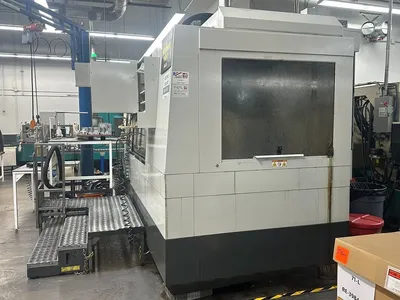

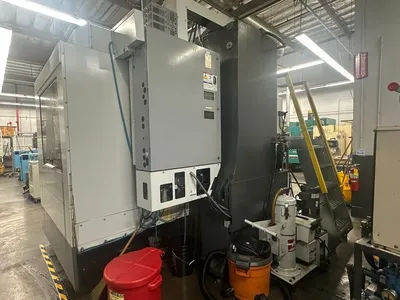

Haas VF-6/40 Vertical Machining Center (2010)

Haas VF-6/40 Vertical Machining Center (2010)
Travels S.A.E METRIC
X Axis 64.00 in 1626 mm
Y Axis 32.00 in 813 mm
Z Axis 30.00 in 762 mm
Spindle Nose to Table (~ max) 34.0 in 864 mm
Spindle Nose to Table (~ min) 4.0 in 102 mm
Spindle S.A.E METRIC
Max Rating 30.0 hp 22.4 kW
Max Speed 8100 rpm 8100 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm
Max Torque w/opt Gearbox 250 ft-lbf @ 450 rpm 339 Nm @ 450 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Taper CT40 | BT40 | HSK-A63 CT40 | BT40 | HSK-A63
Bearing Lubrication Air / Oil Injection Air / Oil Injection
Cooling Liquid Cooled Liquid Cooled
Table S.A.E METRIC
Length 64.0 in 1626 mm
Width 28.0 in 711 mm
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance 4.92 in 125 mm
Number of Std T-Slots 5 5
Max Weight on Table (evenly distributed) 4000 lb 1814 kg
Feedrates S.A.E METRIC
Max Cutting 500 ipm 12.7 m/min
Rapids on X 600 ipm 15.2 m/min
Rapids on Y 600 ipm 15.2 m/min
Rapids on Z 600 ipm 15.2 m/min
Axis Motors S.A.E METRIC
Max Thrust X 3400 lbf 15124 N
Max Thrust Y 3400 lbf 15124 N
Max Thrust Z 5600 lbf 24910 N
Tool Changer S.A.E METRIC
Type SMTC SMTC
Capacity 30+1 30+1
Max Tool Diameter (full)** 2.5 in 64 mm
Max Tool Diameter, Large (adjacent empty)** 5.0 in 127 mm
Max Tool Diameter, Extra-Large (adjacent empty)** 6.0 in 152 mm
Max Tool Length (from gage line) 16.00 in 406 mm
Max Tool Weight 12.0 lb 5.4 kg
Tool-to-Tool (avg) 2.80 s 2.80 s
Chip-to-Chip (avg) 3.60 s 3.60 s
General S.A.E METRIC
Coolant Capacity 95 gal 360 L
Air Requirements S.A.E METRIC
Air Required† 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
Electrical Specification S.A.E METRIC
Spindle Speed 8100 rpm 8100 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Spindle Power 30.0 hp 22.4 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 70 A 70 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 35 A 35 A
Dimensions - Shipping S.A.E METRIC
Domestic Pallet 195.0 in x 102.0 in x 128.5 in 496 cm x 260 cm x 326 cm
Export Crate 195.0 in x 105.5 in x 130.5 in 496 cm x 268 cm x 331 cm
Weight 22300 lb 10116.0 kg
Domestic Pallet w/EC Option 195 in x 102 in x 138 in 496 cm x 260 cm x 351 cm
Export Crate w/EC Option 195 in x 106 in x 139 in 496 cm x 268 cm x 352 cm
Weight w/EC Option 22600 lb 10252 kg
Domestic Pallet w/50+1 SMTC 195 in x 102 in x 133 in 496 cm x 260 cm x 338 cm
Export Crate w/50+1 SMTC 195 in x 106 in x 136 in 496 cm x 268 cm x 344 cm
Weight w/50+1 SMTC 22300 lb 10116 kg
Domestic Pallet w/EC Option & 50+1 SMTC 195 in x 102 in x 141 in 496 cm x 260 cm x 358 cm
Export Crate w/EC Option & 50+1 SMTC 195 in x 106 in x 143 in 496 cm x 268 cm x 363 cm
Weight w/EC Option & 50+1 SMTC 22600 lb 10252 kg
