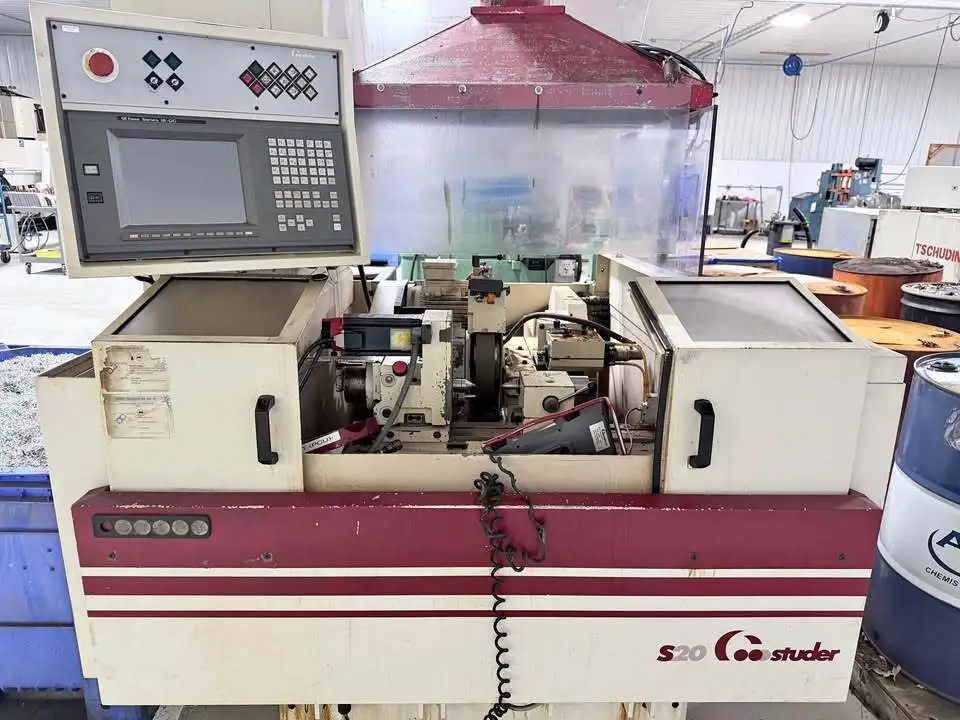

Studer S-20 CNC Cylindrical Grinder

Studer S20 CNC Grinder
Center Height: 4.0″
Center Distance: 15.75″
Max. Longitudinal Travel: 16.53″
Max. Grinding Length: 15.75″
Longitudinal Slide Speed : 0.001 – 10,000 mm/min
Longitudinal Slide Resolution: 0.0001 mm
Max. Swivel of Table: 15 Grad
Max. Wheelhead Slide Travel: 5.90″
Max. Wheelhead Slide Speed: 0.001 – 10,000 mm/min
Slide Resolution: 0.0001 mm
Wheelhead Power Requirement: 3kw
Peripheral Speed: 35m/ sec
Wheelhead Slide Coarse Adjustment: 4.72″
Swivel Range to the Right: 30 Grad
Workhead Swivel Range: 0-90°
Workhead Speed Range: 30 – 1200 RPM
Workhead Morse Taper: 4
Collets: W-20
Workhead Power Requirement: 0.5kw
Max Workpiece Wight Between Centers: 45 lbs
Live Grinding Load: 12Nm
Tailstock Morse Taper: 2
Travel Of Barrel: 0.79″
