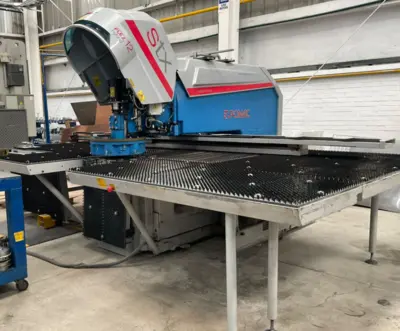

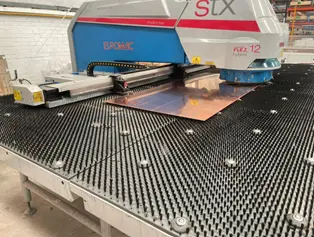

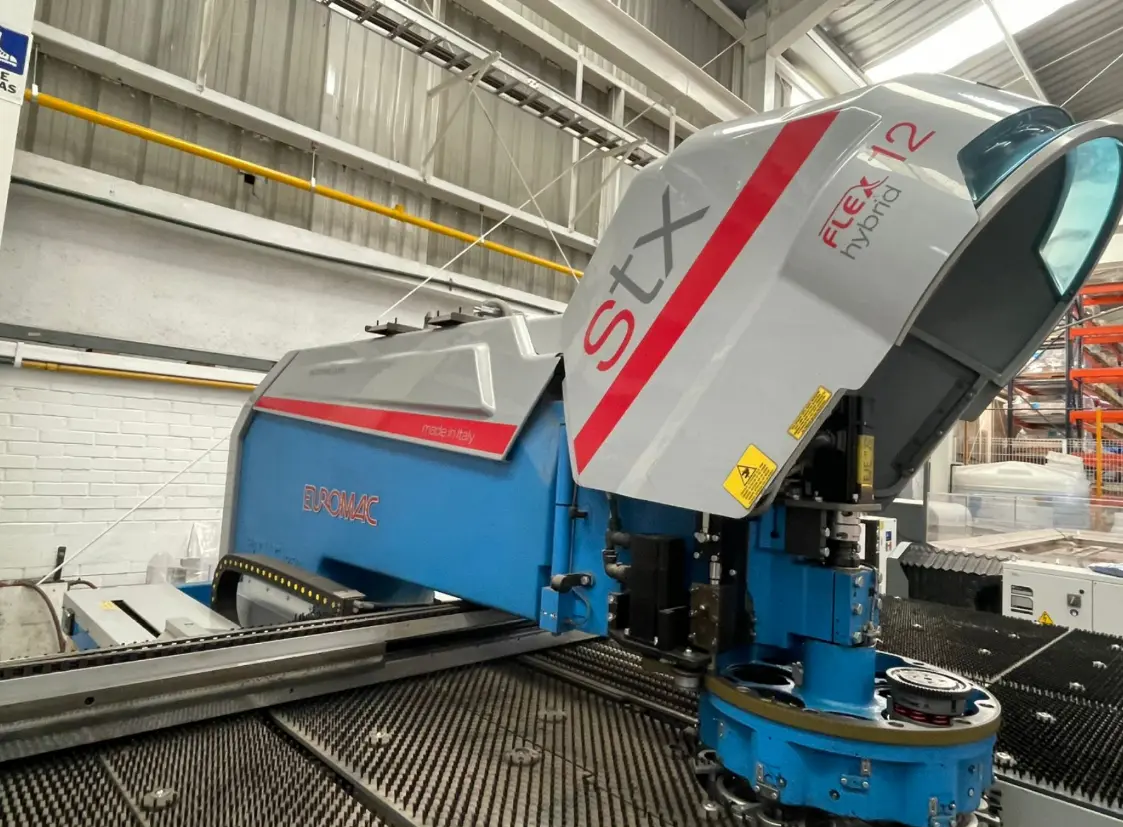

Euromac STX FLEX 6 1250/30/2500 CNC Turret Punch (2019)
Have one to sell?
ConditionUsed
1 available
Low Utilization Euromac STX Flex punching machine meets the demand for a high- performance, high-output machine able to optimize operating costs. Thanks to the more stable “Y” axis, machining and handling speeds can be increased even on large, heavy sheet sizes. The STX series is available with options: X axis up to 2500 mm, loading and unloading, vacuum, side chute door with part sensor, combined brush and ball tables and automatic hydraulic third clamp.
Euromac MTX Flex
FLEX Hybrid System
Which is better, Electric or Hydraulic? Why not get the best of both? Our unique hybrid system, which we call FLEX, is patented and combines the power of hydraulics with the precision and speed of electronic control. And it combines this with energy saving: rated at just 8.5 kW, it achieves average consumption of a mere 4.5 kW/hour when punching. Apart from setting the stroke of every punch, with the FLEX system you can also control:
Euromac STX FLEX 6 1250/30/2500 CNC Turret Punch (2019)
Rated Tonnage 33
Number of Stations (Max.) 60
Maximum Hole Diameter (in.) 3.5
Autoindex - Number of Stations (Max.) 30
Autoindex - Maximum Hole Diameter (in.) 3.5
Autoindex - Rotation Speed 250
Accuracy on 1-in. Centers .004
Srokes per Minute, Nibbling 1,080
Workpiece - Maximum Material Thickness (in.) .250
Workpiece - Max. Weight (lbs) 330
Throat Depth (in.) 50
Table Travel Dimensions X x Y (in.) 50 x 100 (repo to 32 ft.)
Table Speed Motion X, Y, Diagonal (IPM)
