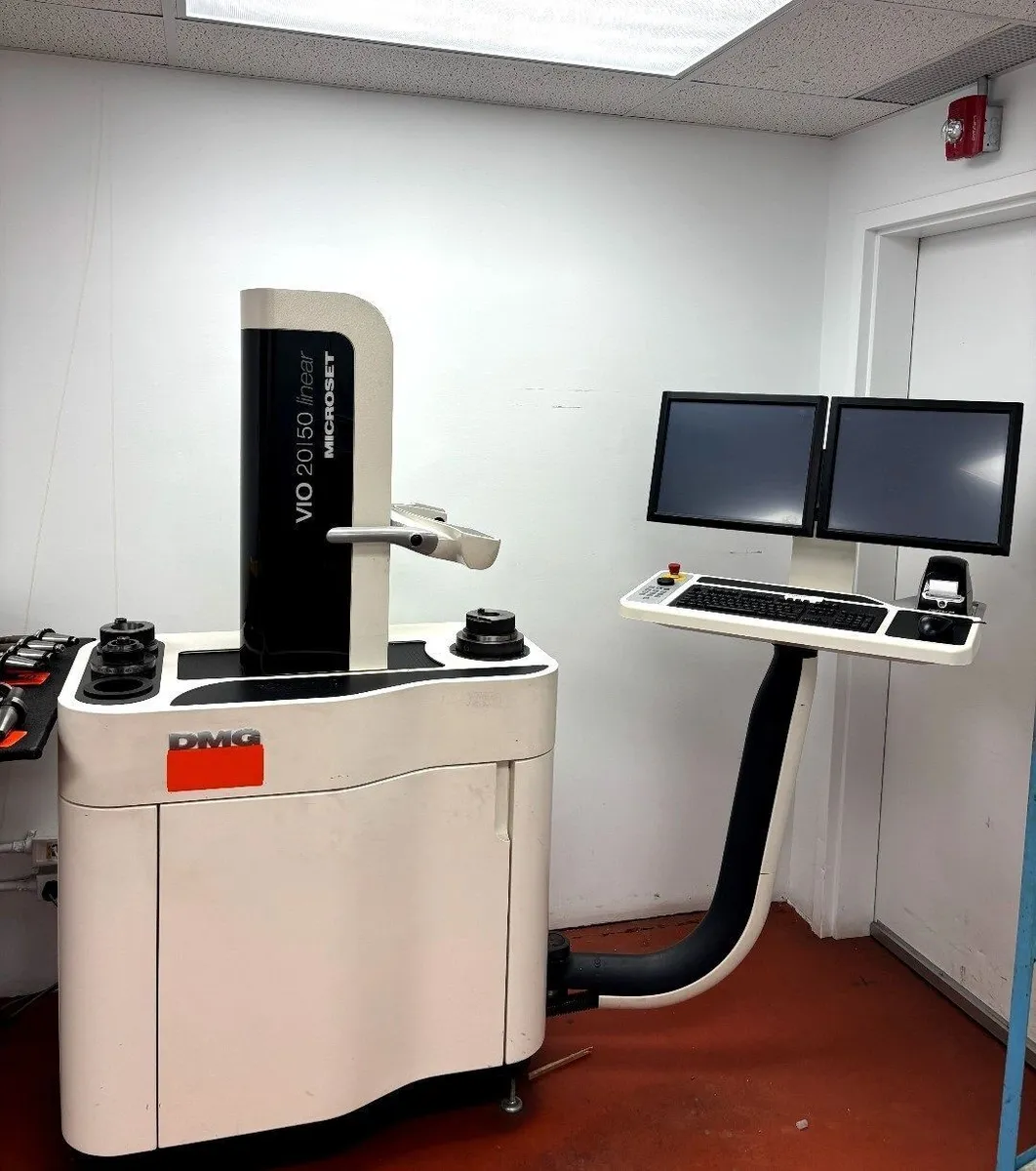

DMG VIO 20/50 Linear Microset Tool Presetter

DMG VIO 20/50 Linear Microset Tool Presetter

Measuring Range (Z-axis, length) 500 mm (19.69 in)
Measuring Range (X-axis, diameter) 420 mm (16.53 in)
Measurement Repeatability ±2 µm (0.00008")
Spindle Runout 2 µm (0.00008")
Max. Tool Weight 160 kg (352 lbs)
Construction FEM-optimized, thermally stable cast iron
Axis Drives Maintenance-free linear drives for X and Z axes
Operating System Windows 10 Professional on a PC system
Display 24" multi-touchscreen standard
Image Processing Microvision VIO system with autofocus
Features
Fully automatic measurement cycles for maximum operating convenience.
High-quality components from reputable manufacturers like Heidenhain and Bosch Rexroth.
User-friendly operation with "Release-by-touch" functionality and optional "Measure-by-touch".
Integrated tool management with memory for 1,000 zero points and unlimited tool memory.
Data exchange and transfer via USB or Ethernet LAN with post-processors for various control systems.
ISS-U universal ultra-high precision spindle with automatic adapter identification and motorized indexing (4x90° and 3x120°).
Incident light and edgefinder included for visual cutting edge inspection and precise measurement.

VIO LINEAR

Exceptional performance with high-tech standard: A tool presetting device with peak performance. Thanks to innovative drive technology, quality, precision and functionality are guaranteed.

HIGHLIGHTS

Servo-manual operation for exceptional operating comfort
High-quality components (e.g. Heidenhain, Bosch, precision spindle)
Linear drives for speed and precision
Flexible and user-friendly control panel

OPTIONS

Tailstock function: for tool measuring between tips. VIO scan – outline detection with dxf-scan.

MEASURING RANGES / SOFTWARE

Variable: X-axis 210 / 350 / 500 mm, Z-axis 500 / 700 / 1,000 mm / Microvision VIO.
