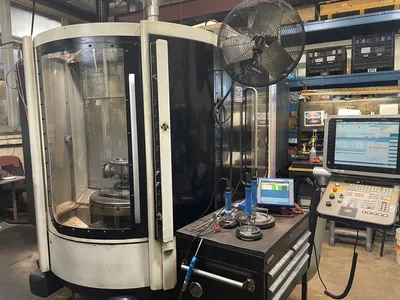

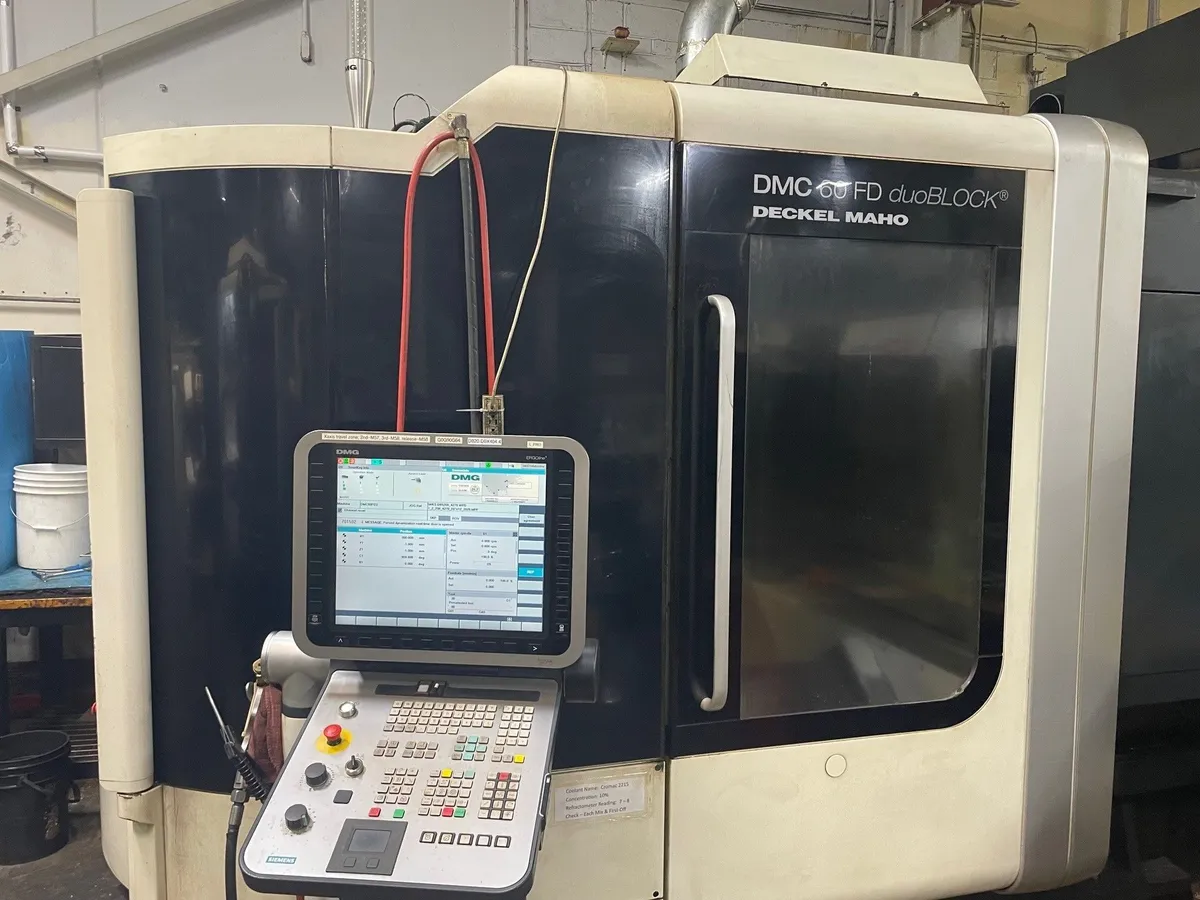

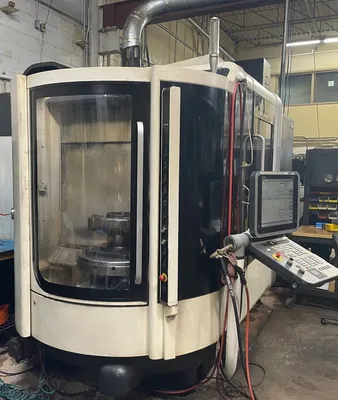

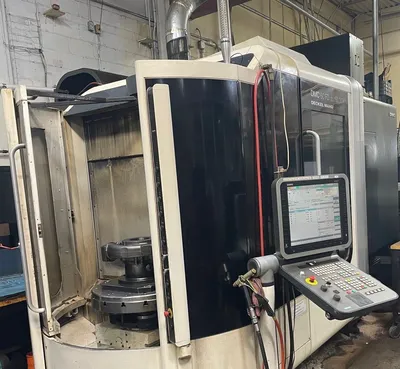

DMG Mori Seiki DMC 60 FD DuoBLOCK 5 Axis Machining Center (2012)

DMG Mori Seiki DMC 60 FD DuoBLOCK 5 Axis Machining Center (2012)

X-axis travel mm: 600
Y-axis travel mm: 700
Z-axis travel mm: 600
C-axis degrees: 360º (0,001)
B-axis degrees: -30º/180º (0,001)
Feed rates m/min: 60
Rapid traverse m/min: 60
Acceleration in the axes m/s2: 6/6/5
Milling/turning table nc:
Number of pallets: 2
Table dimensions mm: Ø630
Maximum workpiece size (D x H) mm: Ø630×850
Max. workpiece weight kg: 500
Table rotation speed rpm: 1200
Spindle
Spindle speed rpm: 12000 RPM
Spindle drive power kW: 35/24 (40%ED/cont)
Spindle torque Nm: 111/77
Cooling
Cooling through the Spindle Center bar: 40
Tank capacity: 980
Tool system
Tool holder: HSK-A 63
Tool magazine slots: 60
Tool changer: Double gripper
With free neighboring places mm: 120
With occupied neighboring places mm: 80
Max. Tool Length mm: 450
Max tool weight kg: 15
Chip-to-chip time s: 4
