| size | 21" Chuck | 21" Chuck |
| Swing | 27.56" | 700.02 mm |
| Machining Length | 82" | 2,082.8 mm |
| # Axis | 2 | 2 |
| Chuck Size | 21" | 533.4 mm |
| Bar Capacity | 6.5" | 165.1 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 1,500 RPM | 1,500 RPM |
| Turning Dia | 21.65" | 549.91 mm |
| Tailstock | Yes | Yes |

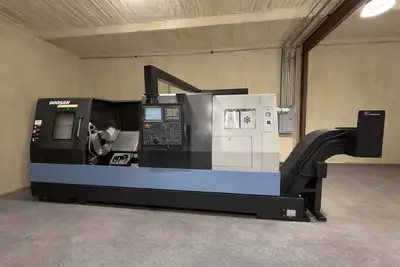

Doosan Daewoo Model 400LC 2-Axis CNC Turning Center
Swing Over Bed: 30.3"
Swing Over Saddle: 23.2"
Maximum Turning Length: 81.7
Spindle Bore / Bar Working Diameter: 7.1" / 6.5"
Spindle Speed (Geared): 1,500 RPM
Spindle Nose: A2 #15
Main Motor: 50 HP
X / Z Axis Travels: 14.1"/ 84.8"
Rapid Traverse (X/Z Axis): 630/790 IPM

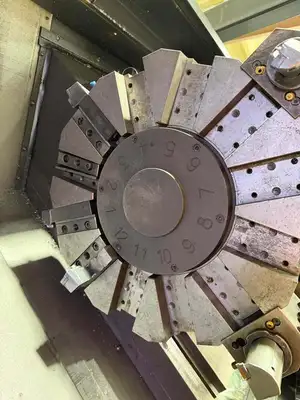

Turret: 10 Positions
Machine Dimensions: 210" X 94" X 89" TALL
Approximate Machine Weight: 25,000 LBS
Fanuc 21iTB CNC Control

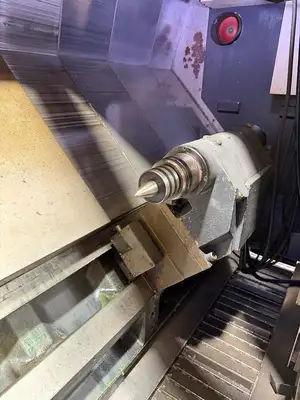

Programmable Tailstock
Tool Presetter

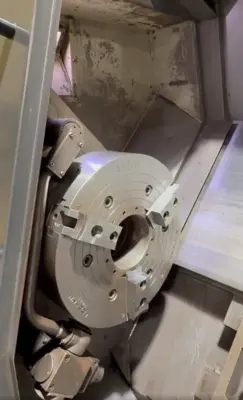

21" 3-Jaw Hydraulic Chuck
Chip Conveyor
This equipment has been sold. Similar equipment available now is shown below.
