| size | 41" x 22" x 20" | 41" x 22" x 20" |
| X Travel | 41" | 1,041.4 mm |
| Y Travel | 22" | 558.8 mm |
| Z Travel | 20" | 508 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Table-W | 22" | 558.8 mm |
| Table-L | 51" | 1,295.4 mm |
| # Axis | 4 | 4 |

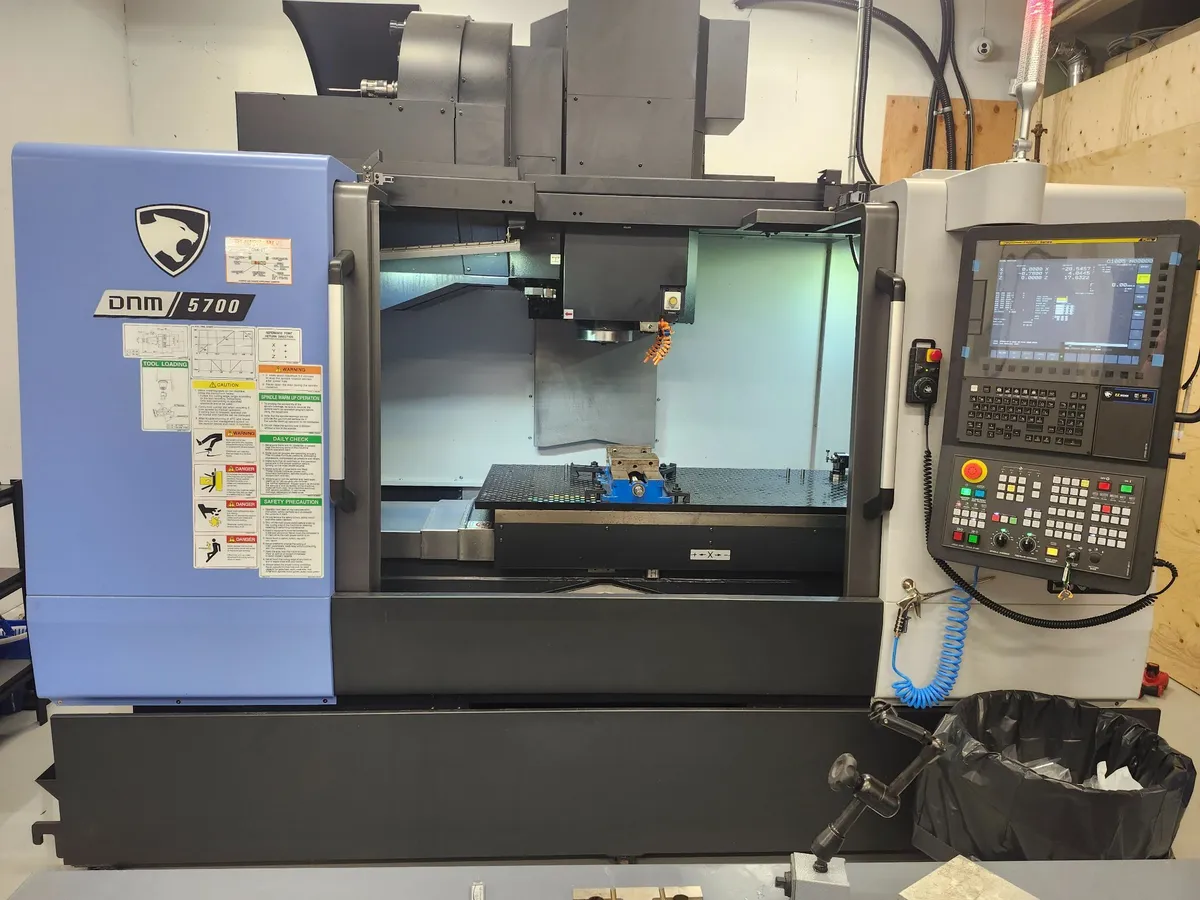

Doosan DNM 5700S Vertical Machining Center (2023)
Max. Spindle Speed: 12,000 RPM
X-Axis Travel Distance: 41.3 ”
Y-Axis Travel Distance: 22.4″
Z-Axis Travel Distance: 20.1″
X-Axis Rapid Traverse: 1,654″/min
Y-Axis Rapid Traverse: 1,654 “/min
Z-Axis Rapid Traverse: 1,417 “/min
Max. Spindle Power: 24.8 HP
Max. Spindle Torque: 86.9 ft-lbs
Spindle Taper: CAT 40 Big Plus
Table Length: 51.2″
Table Width: 22.4″
Maximum Workpiece Weight: 1,764 lbs
Machine Dimensions: 95″ x 117.5″ x 122.4” Machine Weight: 14,330 lbs

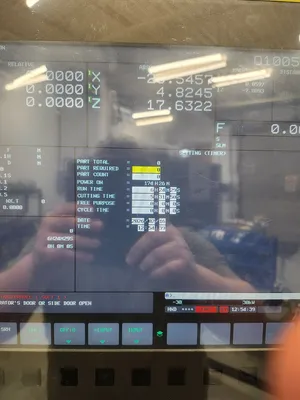

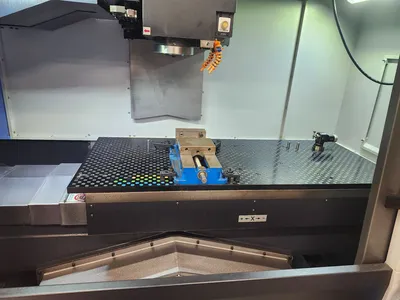

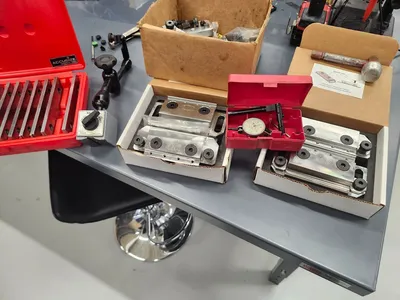

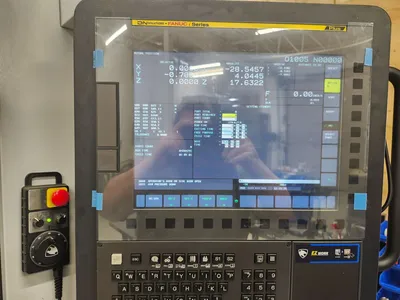

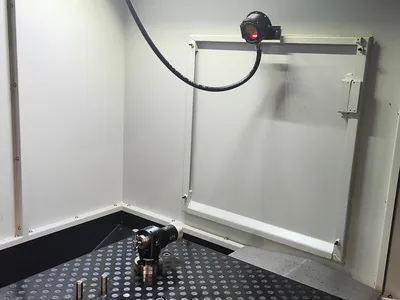

Less than 500 Hours, Wired For 4th Axis, 12000 RPM, Fanuc i Series Control, Coolant Thru Spindle, 30 ATC, Drilled and Tapped Sub Plate Kurt Vise, M Codes, Probe, , Extended macros and P numbers .......
This equipment has been sold. Similar equipment available now is shown below.
