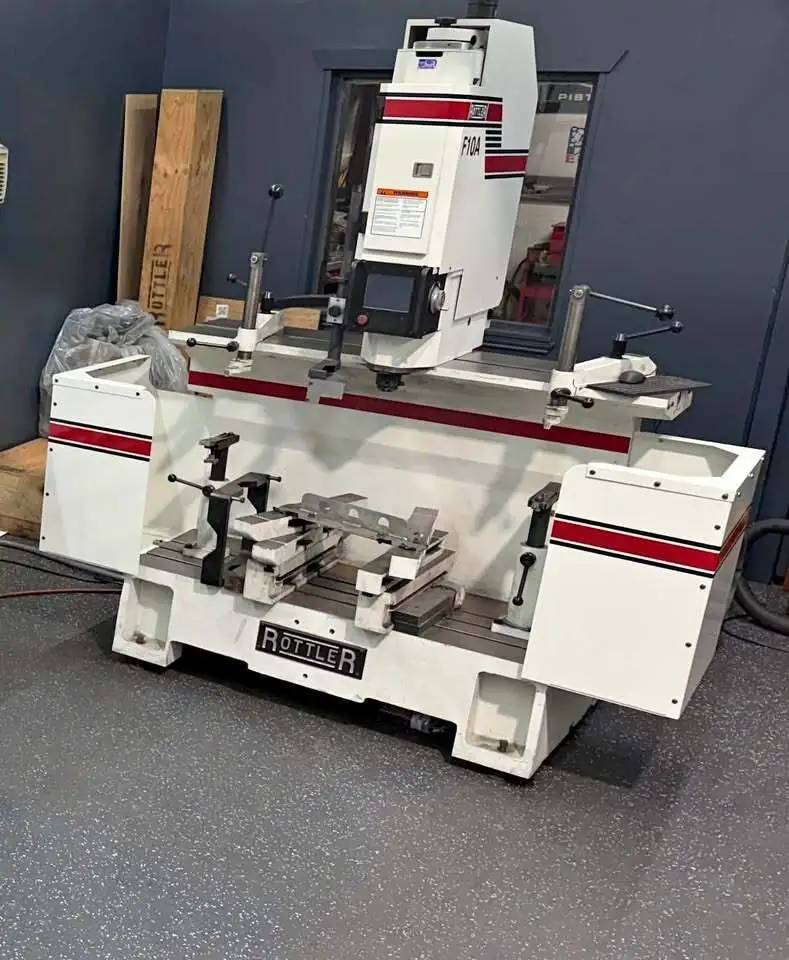

Rottler F10A Automatic Boring and Sleeving Machine (2024)

Touch Screen - 4.5"
Machine Height - 80"
Table Size - 54" x 21"
T Slot Spacing - 3.939"
T Slot Upper Width - 0.632"
T Slot Lower Width - 1.29"
T Slot Depth - 1.034"
Travel - Spindle Nose to Table - 26"
Spindle - Rotation Speed - 100 to 1200 RPM
Spindle - Motor - 3.3 HP 2.5kW HP
Bore Capacity (with Optional Cutterheads) - 1.5" - 9"
Feed per Revolution - Programmable Feed Rates .001" - .012"
Spindle Travel (Vertical) - 15"
Workhead Travel (Horizontal) - 50"
Dimensions - Machine : 45D x 61W x 80" H
Dimensions - Floor Space Requirements: 46D x 64W"
Dimensions - Shipping: 78D x 93W x 93" H
Machine Weight: 4500 lbs
Electrical Requirements: 208-240V, 30A, 50/60Hz, 1Ph
Air Requirements: 1 cfm @ 90 psi
