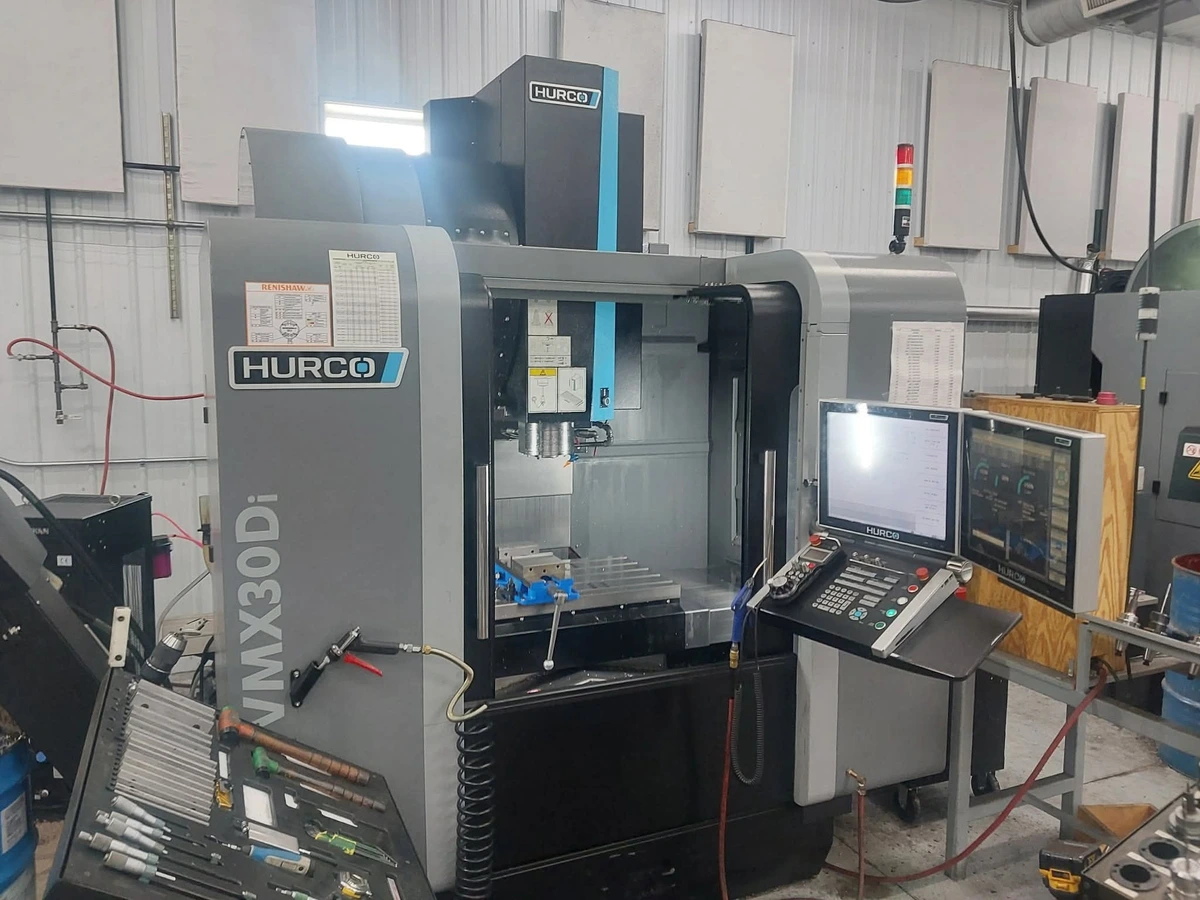

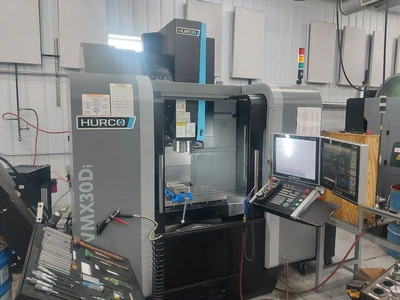

Hurco VMX30Di Vertical Machining Center (2021)

Hurco VMX30Di Vertical Machining Center (2021)

Travels & Capacity
X, Y, Z Axis Travel 762 x 508 x 610 mm
T-Slot Size 5 x 18 x 100 mm
Max. Weight on Table 1,500 kg

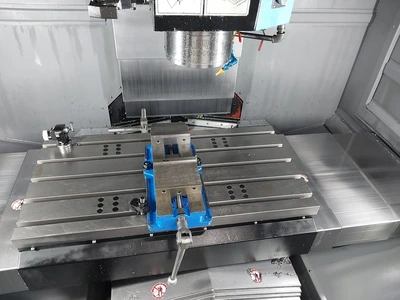

Table Size 1,020 x 510 mm
Spindle Nose to Table 152 mm min / 762 mm max

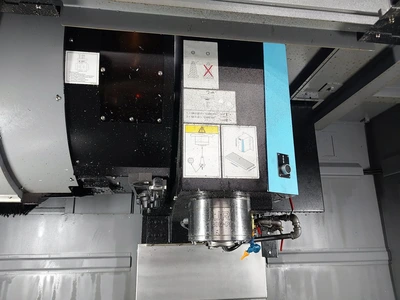

Spindle
Max. Spindle Speed 15000 rpm
Spindle Power (peak - 1 min) 15 kW
Spindle Torque (peak - 1 min) 95.45 Nm @ 1500 rpm
Tool Changer
Taper Big Plus 40
Max Tool Diameter 76 mm
Max Tool Length 300 mm
Max Tool Weight 7 kg
Feedrates
Rapid Traverse X,Y,Z Axis 45, 45, 42 m/min
Max Programmable Feedrate 32 m/min
Size
Machine Weight 4,850 kg
Machine Type 3-Axis Machining Centre
