DoALL DS-600SA 18" x 23" Dual-Miter Semi-Automatic Band Saw (2023)
Have one to sell?
ConditionUsed
1 available

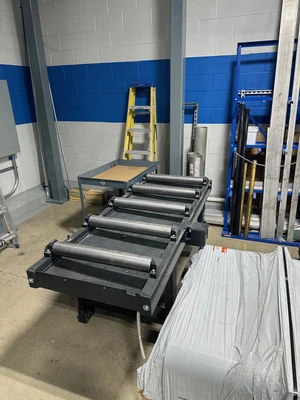

Unit has been very little as our process has changed to not need the saw currently. The unit comes with the 6.6ft input or output conveyor with drip pan/gutter.

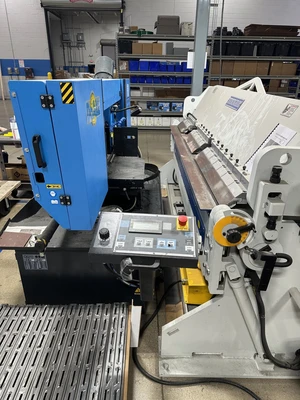

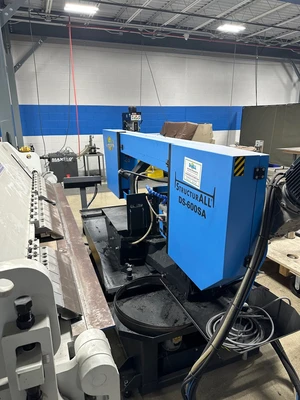

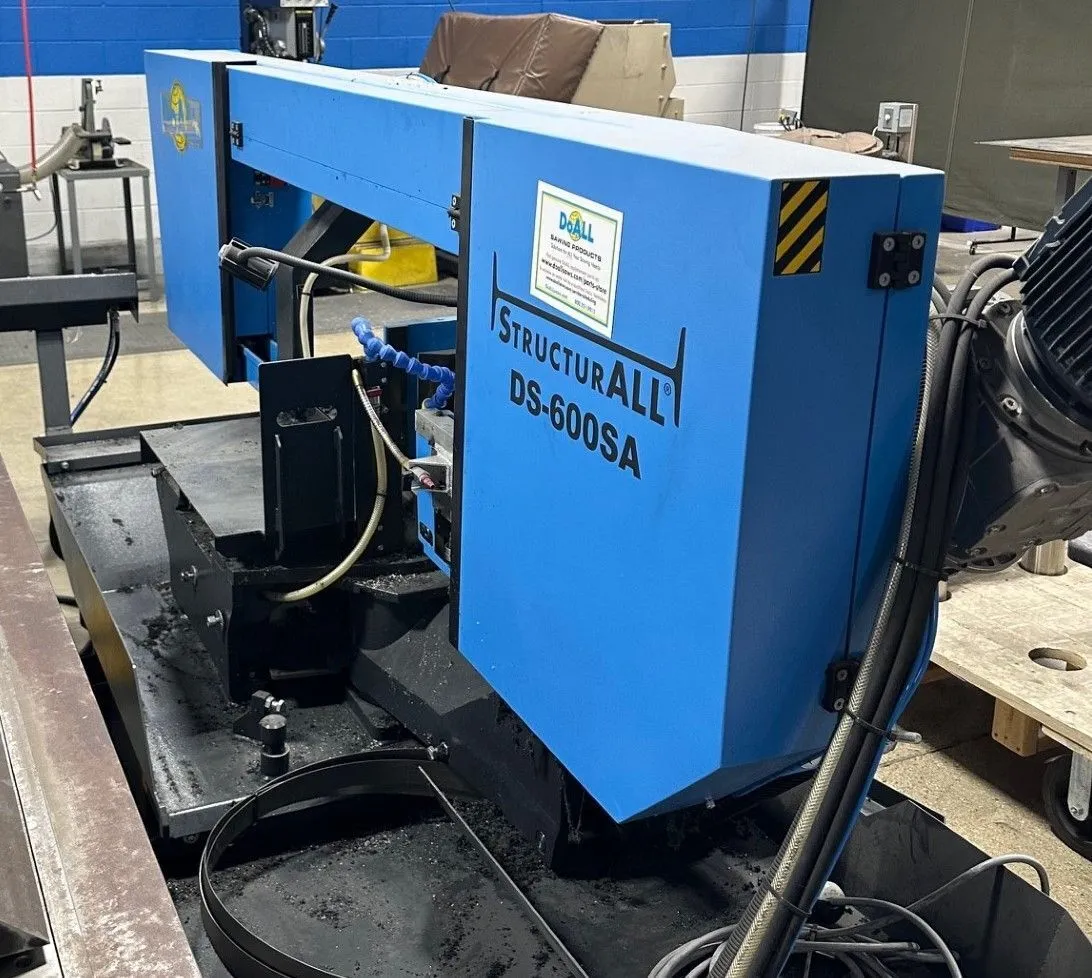

DS-600SA Dual-Miter Semi-Automatic Band Saw (2023)
Machine Capacity: w 23.5" x h 18" (600mm x 460mm)
Round Tube: 18″ (460mm)
Production Level: Intermediate/Medium
Saw Blade:
Width x Length - 1 1/2" x 212"
Band Drive:
Motor HP - 5 Hp
Band Speed 65-328 fpm
Band Tension – Hydraulic
Hydraulic System:
Motor Hp - 1 Hp
Reservoir Size 3 Gallon
Coolant system:
Flood coolant & Mist Lubricator
Motor Hp - .07 Hp
Reservoir Size – 5 Gallons
Indexer:
Length Per-Stroke – NA
Maximum Index Strokes Length – NA
Remnant Length – NA
Floor Space Dimensions:
W x L X H - 136" x 45" x 65"
Material Pass Height - 31.5"
Machine Weight - 2,646 lbs.

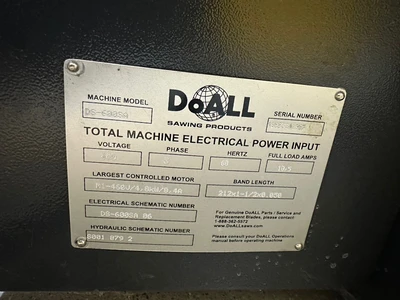

Electrical:
Voltage Requirement - 460V-60Hz-3ph, Wye configuration
Total Amp Draw (FLA) - 9 Amps
