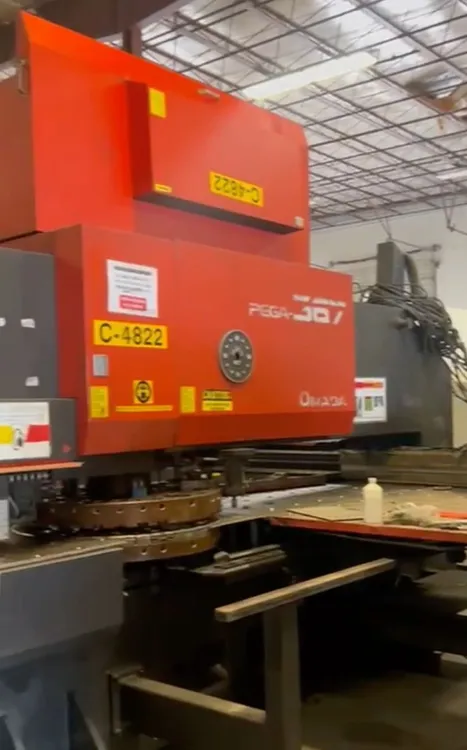

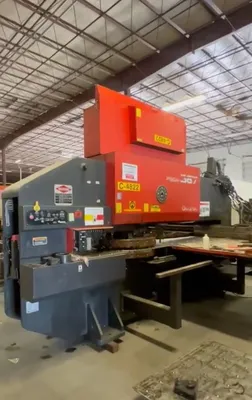

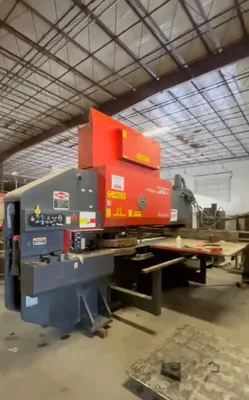

Amada Pega 367 CNC Turret Punch

Amada Pega 367 CNC TURRET PUNCH

44 STATION 2-AUTO INDEX
Wet Clutch

• Max. Punching Force 33 U.S. Tons
Year 1997
• Sheet Size 60” x 72” (longer using Auto Repo.)
• Thickest Material with Optional .250” Hyd. Clamps
• Thickest Material .250”
• Max. Hole Diameter 4-1/2”
• Max. Sheet Weight Ability 220 lbs.
• Max. Sheet Weight Sustained 220 lbs.
• Number of Stations 44 Station 2 Auto Index
• Ram Stroke Length 1-1/4”
• Strokes per Minute, Nibbling 300
• Axis Speed 2,000 I.P.M.
• Turret Speed 33 R.P.M.
• Hits per Minute 1” Moves 200
• Nibbling Hits per Minute 300
• Control Type Fanuc 04PC
• Minimum Programmable Increment .001”
• Axis Motor AC Servo Motors
• Turret Motor AC Servo Motors
• Electric Power Required 220/230/60 cycle. /3 ph. /30 amp
• Machine Weight 14 metric tons

STANDARD FEATURES:

• Automatic repositioning
• Absolute or incremental programming
• Metric or inch dimensional programmable
• Precision ground re-circulating ball leads screws for X and Y Axis
• X and Y carriages driven by AC servo motors
• Crash proof clamp sensors
• Hardened and ground turret index pins and bushings
• Safety interlocks and overrun protectors with all step control prevent accidents
• 44 Station auto-index thick type turret for long body tools

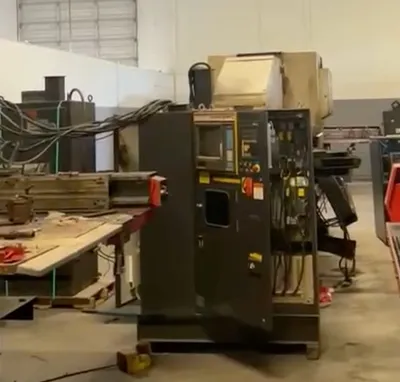

Fanuc 04PC Control
• Strip miss detection
• Trap door
• Tool hoist
• RS 232 computer port
• Lights out scheduler
• Hydraulic/mechanical clutch and brake system
• Optional Lapis USB Connect LAN Drag and drop files to and from Windows Explorer to CNC
• Ethernet connection using standard FTP protocol
• No special software required
• 10/100 Ethernet Speed. Low cost wireless option available USB Option
• DNC drip feed operation from data server
• optional Vibratory Machinery mounts, (precision leveling, lowers vibration, no anchoring,
