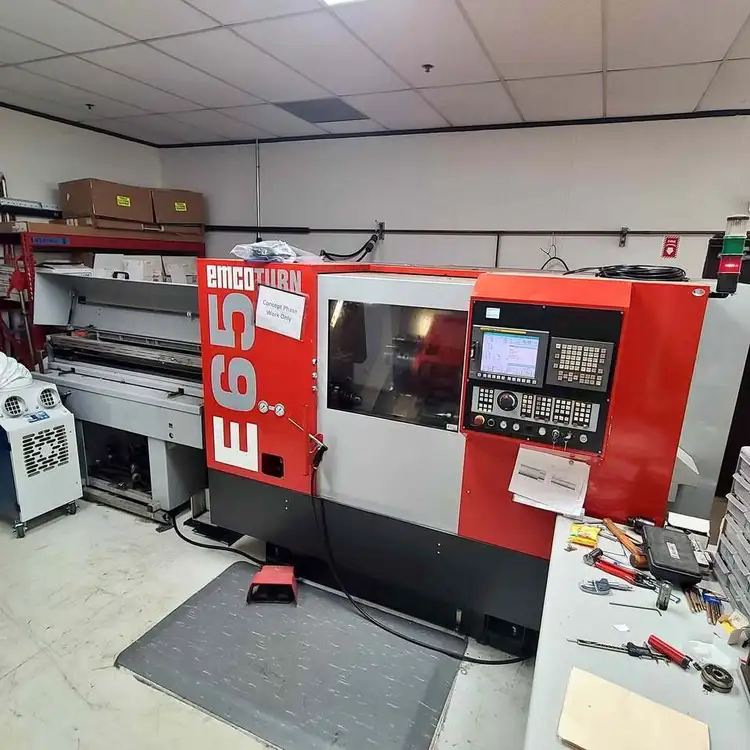

Emco Emcoturn E65 Live Tool CNC Lathe (2007)
Have one to sell?
ConditionUsed
1 available

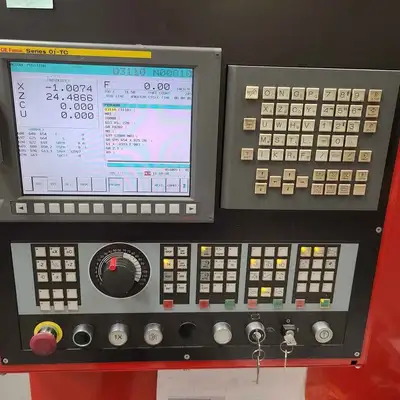

Live Tool, Barfeed, Fanuc 0iTC CNC
Emco Emcoturn E65 Live Tool CNC Lathe (2007)
Travel in X/Y/Z 210 / +/-40 / 610 mm
Bar diameter ø 65 (95) mm
Max. turning diameter ø 500 mm
Swing over bed ø 610 mm
Distance between centers 682 mm
Rapid motion speeds in X/Y/Z 30/15/30 m/min
Max. speed 5000 (3500) rpm
Spindle nose A2-6
Max. drive power 22 kW
Max. torque 305 Nm
Automatic tailstock yes
Inner cone MT4
Travel (automatic) 500 mm
VDI size 30 (40)
Number of tools 12
Driven tools 12
Max. speed 5000 rpm
Max. drive power 6,7 kW
Max. torque 25 Nm
Live Tooling, Barfeed. Fanuc CNC
