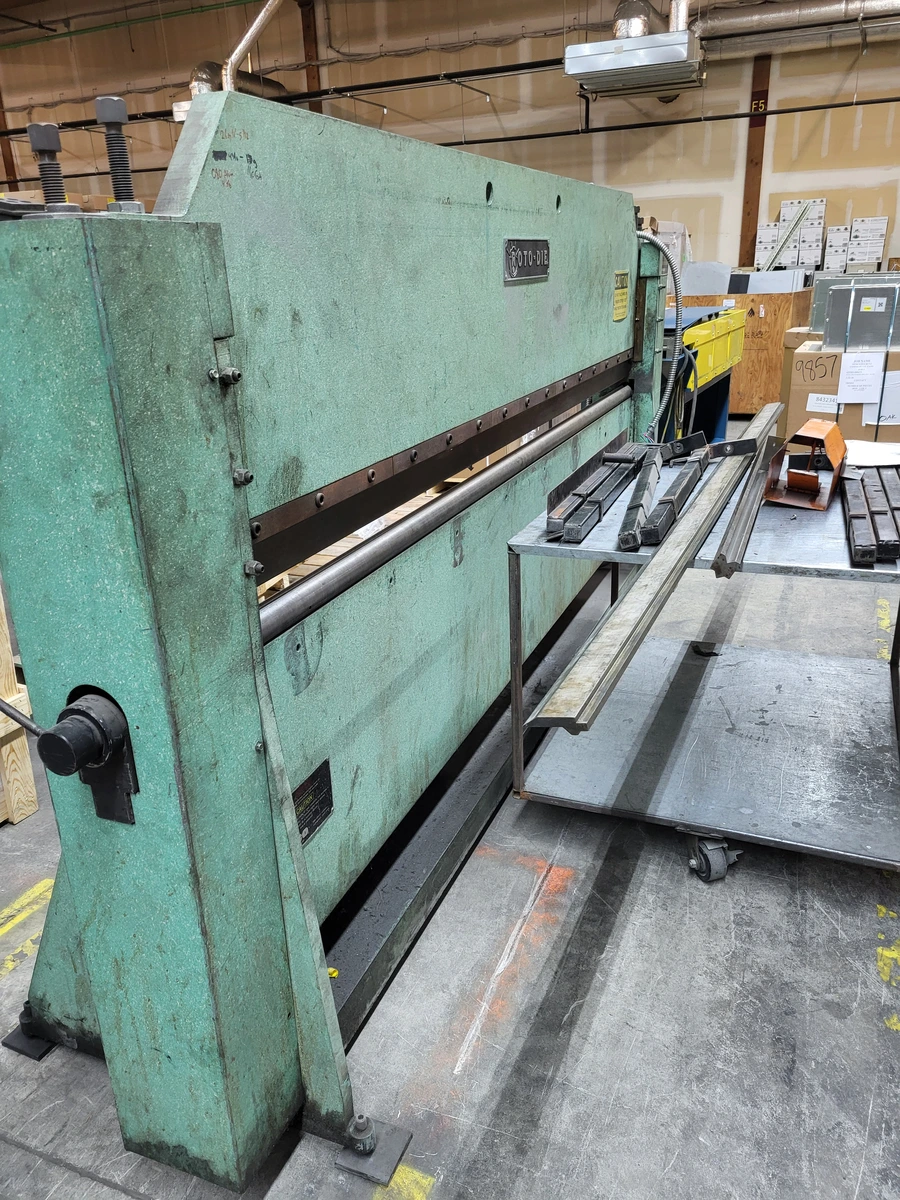

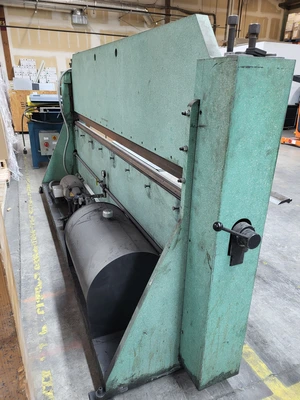

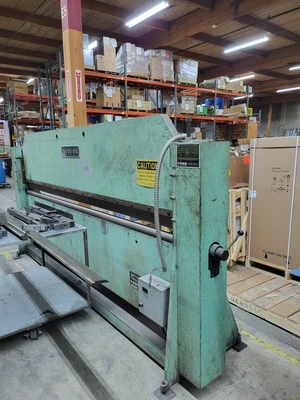

Roto-Die Model 10 Press Brake
Have one to sell?
ConditionUsed
1 available
12' x 15 Ton, Extra Dies Included
Roto-Die Model 10 Press Brake
Bending Capacity, 7/8" Die Opening - 120″ x 16 Gauge
Bending Capacity, 7/8" Die Opening with Angle Insert - 72" x 10 Gauge
Motor - 7-1/2 HP
Length of Stroke - 3″
Strokes Per Minute - 20 to 50
Die Clearance - 2-1/8″
Die Space - 7-1/2″
Overall Dimensions – Length: 12′ 1″ Front to Back: 22″ Height: 5′ 3-1/2″
Front and Rear Support Arm Range - 39"
Approximate Shipping Weight - 5,700 lbs.
12' x 15 Ton, Extra Dies Included
Imperial
| size | 15 Ton x 10 |
| Tonnage | 15 T |
| Type | MECH |
| Overall Length | 10' |
| Stroke | 3" |
Roto-Die Model 10 Press Brake
Bending Capacity, 7/8" Die Opening - 120″ x 16 Gauge
Bending Capacity, 7/8" Die Opening with Angle Insert - 72" x 10 Gauge
Motor - 7-1/2 HP
Length of Stroke - 3″
Strokes Per Minute - 20 to 50
Die Clearance - 2-1/8″
Die Space - 7-1/2″
Overall Dimensions – Length: 12′ 1″ Front to Back: 22″ Height: 5′ 3-1/2″
Front and Rear Support Arm Range - 39"
Approximate Shipping Weight - 5,700 lbs.
