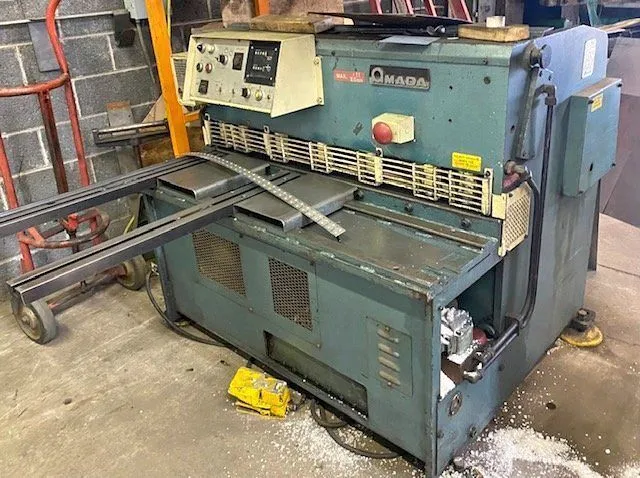

Amada S-1232 4' x 11 Gauge Power Shear

AMADA #S-1232 HYDRAULIC SHEAR
Model no. S-1232
Capacity: 4' x 11 ga. mild steel
Length of knives: 52"
Distance between housings: 54"
Gap: 3.35"
Holddowns: 7
Rake angle: 1°18'
S.P.M. approx.: 45-70
Floor to top of bed: 28.5"
EQUIPPED WITH: 27.5" front operated power back gauge with
control & readout
Electric foot switch
Pushbuttons for start - stop
Selector switch for inch - once - auto
Blade clearance adjustment

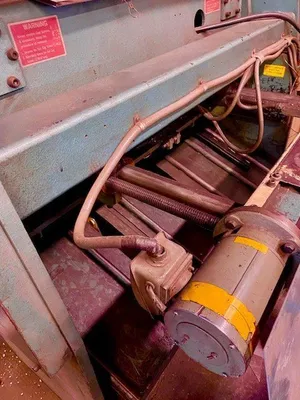

.53 HP 1680 RPM 230 volt 3 phase back gauge
motor
Hydraulic pump, driven by
7 HP 240 volt motor
Weight approx. 5000 lbs.
Overall dimensions approx. 67" L-R x 58" F-B x 51" H
