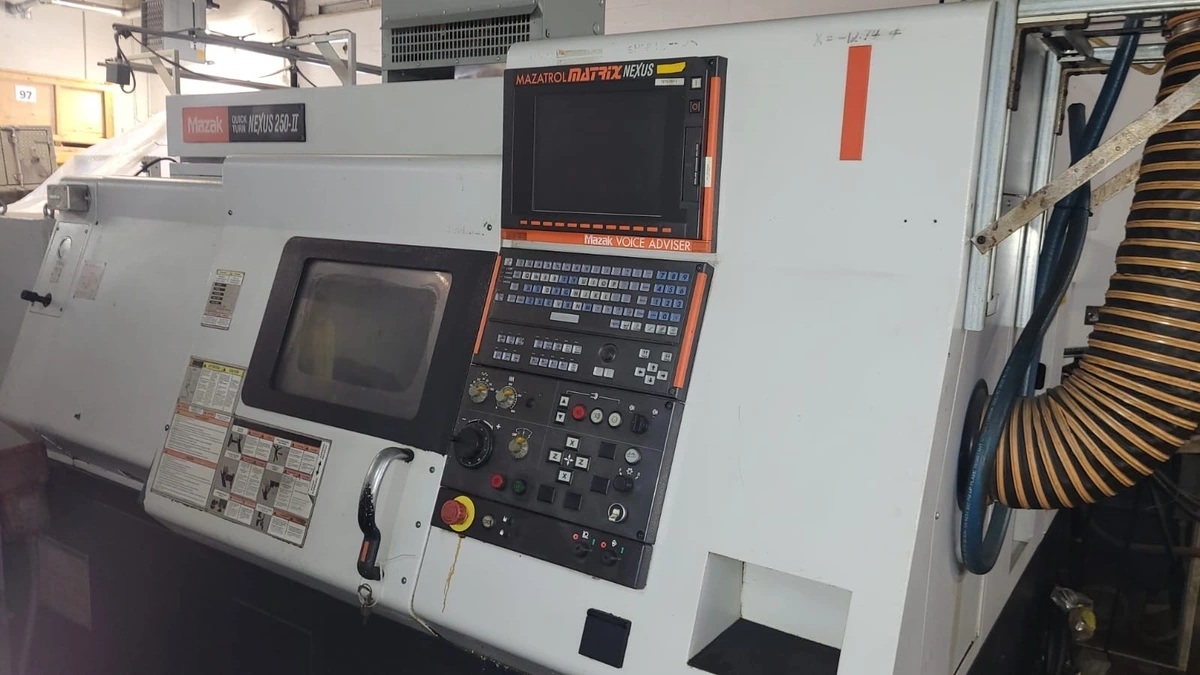

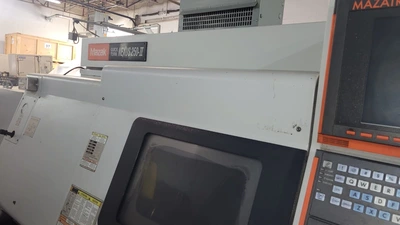

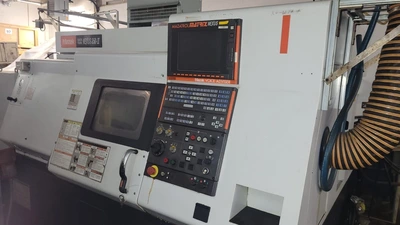

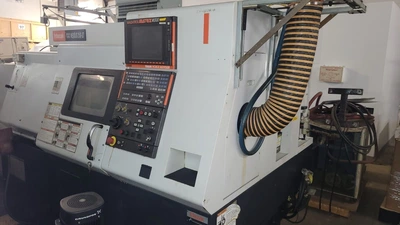

Mazak QTN-250-II CNC Lathe (2009)
Have one to sell?
ConditionUsed
1 available
Mazak QTN-250-II CNC Lathe (2009)
Maximum Swing: 24″
Maximum Turning Diameter: 14.75″
Maximum Turning Length: 21.7″
Distance Spindle Nose to Turret: 4.84" to 25.11"
Max Bar Capacity: 3.03"
Hole Thru Spindle: 3.46"
Spindle Speeds: 35 to 4000 RPM
Turret Positions: 12
X-Axis Travel: 9.05″
Z-Axis Travel: 22.63″
Turret Index Time: .2 / .8 Seconds (Next / Opposite Positions)
Turret Travels (X,Z): 7.5" , 20.25"
Rapid Traverse Rate (X/Z): 88.4 / 108.2 FPM
Tailstock Travel: 20.625"
Tailstock Quill Diameter / Taper: MT5

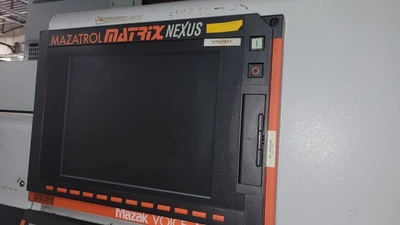

Mazatrol Matrix CNC Control
