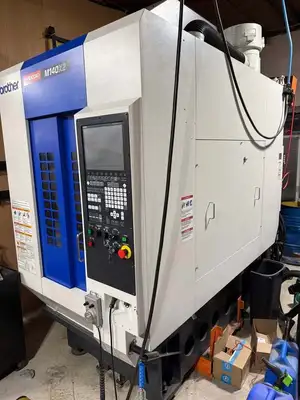

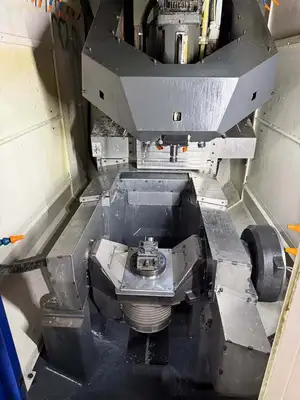

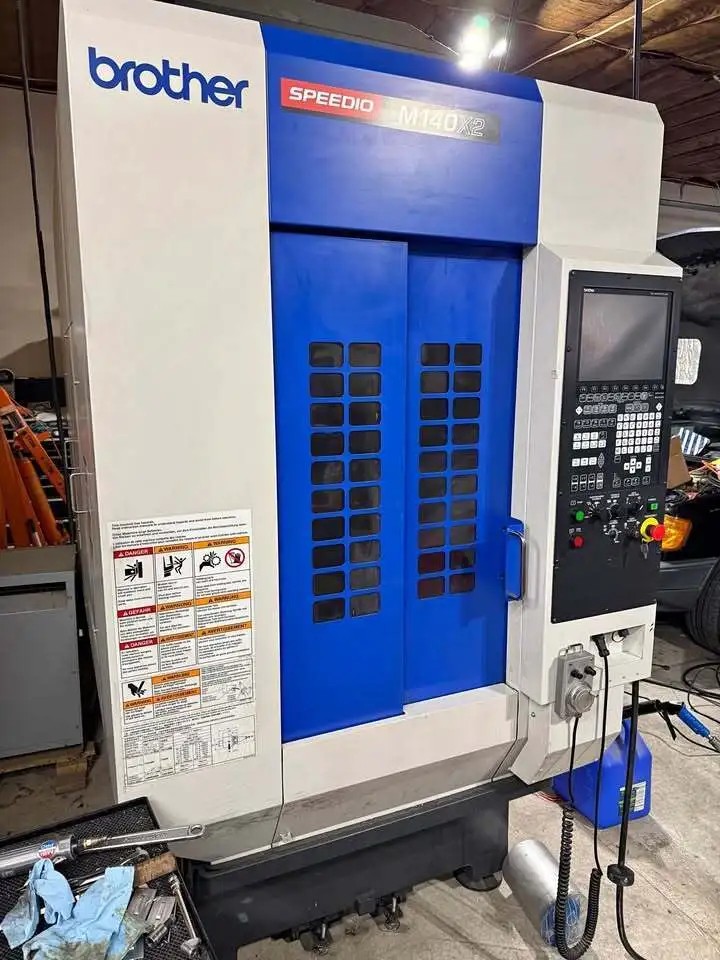

Brother Model Speedio M140X2 5 Axis CNC Drill & Tap Center (2018)

Brother Model Speedio M140X2 CNC Drill & Tap Center (2018)

X-axis: mm (inch) 200 (7.9)
Y-axis: mm (inch) 440 (17.3)
Z-axis: mm (inch) 305 (12.0)
A-axis [deg.]: 120 - -30
C-axis [deg.]: 360
Table Work area size: D 5.5
Shape of table top: In compliance with table nose No.5 of ISO702-4 (JI)
Max.loading capacity: 24 Lbs
Spindle speed: 16,000 RPM
Speed during tapping: Max. 6,000 RPM
Tapered hole: 7/24 tapered No.30
Turning spindle: 2,000 RPM
Rapid traverse rate: 1969 IPM
Cutting feed rate: 1181 IPM
Indexing feedrate (A and C): A axis 60, C axis 200
Tool shank type: MAS-BT30
Pull stud type: MAS-P30T-2
Tool storage capacity: 22
Max. tool length: 7.9"
Max. tool diameter: 3.1"
Max. tool weight: 6.6 lbs.
Tool selection method: Random shortcut method
Tool change time: 0.9 seconds
Turning Spindle: 5.5 HP
Power source Power supply: AC V10%, 50/60Hz1Hz
Power capacity(continuous) [kVA]: 10,000min-1 specifications : 9.5
16,000min-1 specifications (Optional): 9.5
Air supply Regular air pressure [MPa]: 0.4 - 0.6 (recommended valu6
Required flow [L/min]: 165
Machine dimensions: 102.5"
Required floor space: 50.4 X 150.7"
Weight: 5,979 Lbs
