Armstrong Spartan PA13N Horizontal Band Saw (1997)
Have one to sell?
ConditionUsed
1 available

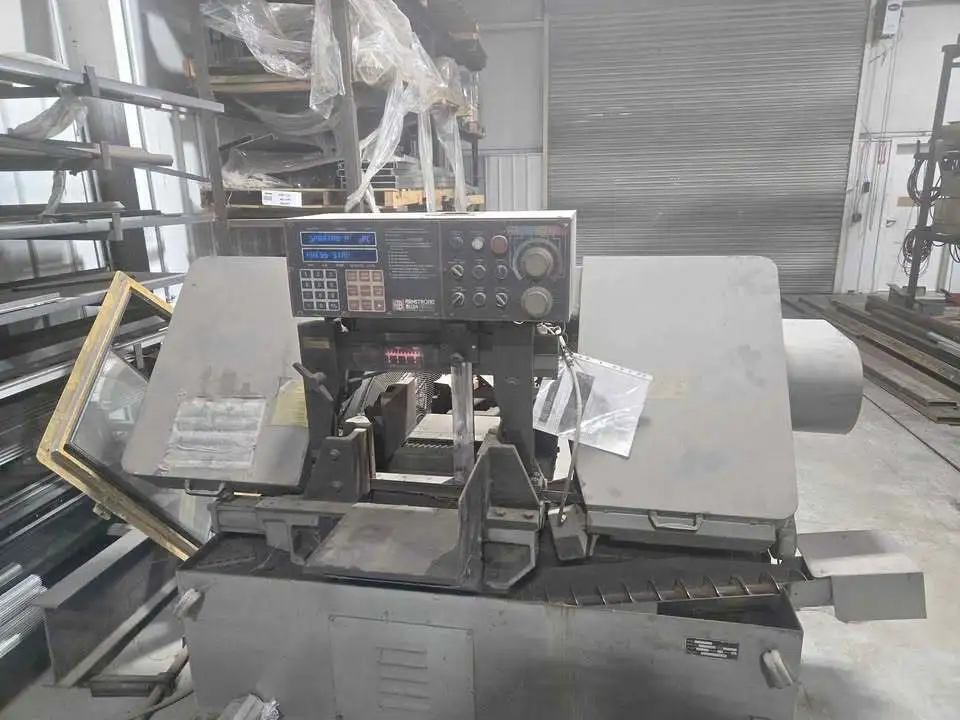

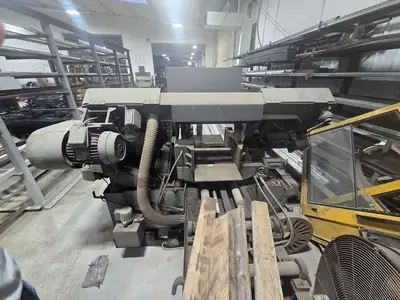

MARVEL/SPARTAN Model PA13N,AUTOMATIC 13" x 14.1" HORIZONTAL BAND SAW
CATALOG SPECIFICATIONS:
Flat Stock Capacity, Maximum 13" x 14.1"
Round Stock Capacity, Maximum 13"
Vise Opening, Maximum 14.5"
Band Length 13'6"
Band Width 1-1/4"
Band Thickness .042"
Shuttle Travel, One Cycle 0 to 19.6"
Shuttle Travel, Multi-Cycle 177.1"
Band Speeds, Variable 80 to 400 SFPM
Feed Force, Infinitely Variable 0 to 300 LBS
Load Capacity, Maximum 6250 LBS
Motor, Horsepower 5 HP
Hydraulic Motor, Horsepower 1 HP
Weight, Approximately 36300 LBS
47" AUTOMATIC Hydraulic-Driven Stock-Feed Table
w/MULTIPLE Indexing
1-1/4" Blade Capabilities
Hydraulic Stock-Feeding and Clamping Vises
Hydraulic Band Saw Up-Feed and Down-Feed
Hydraulic Band Tension
Automatic Auger Type Chip Removal
