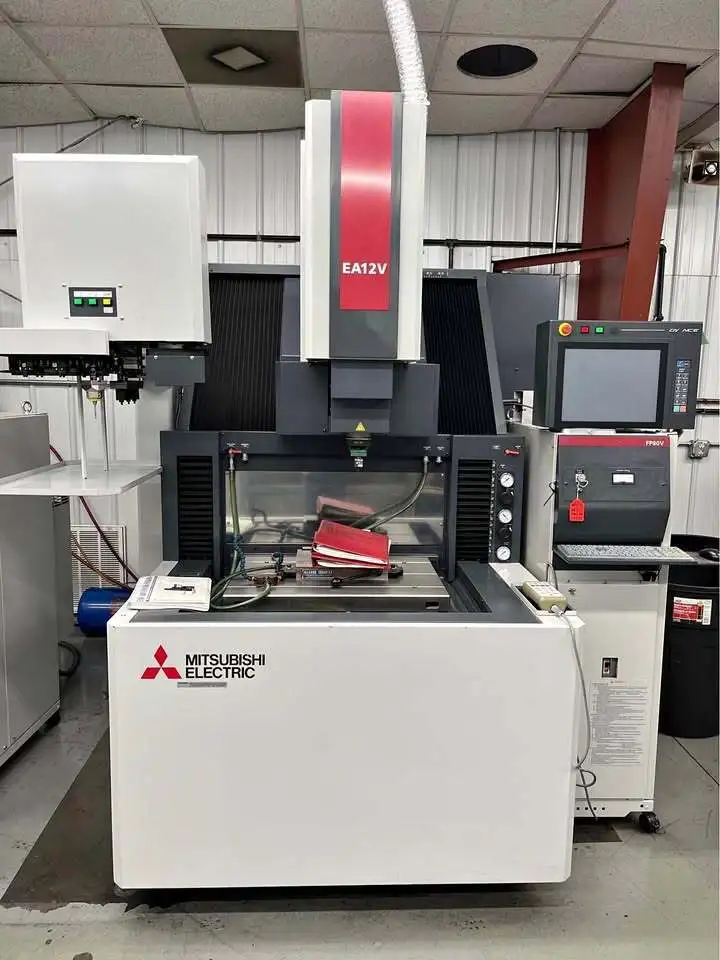

Mitsubishi EA12V Advance Sinker Type Electrical Discharge Machine EDM (2016)
Power Pack 80 A
Table Size-W 19.6″
Table Size-L 27.5″
X 15.7″
Y 11.8″
Z 11.8″
Spec Sheet
Specifications:
Machining Stroke (X x Y x Z) 15.75″ x 11.81″ x 11.81″
Chuck to Table Clearence 7.9″ ~ 19.67″
Worktank Size 33.5″ x 23.6″ x 13.8″
Table Size 27.6″ x 23.6″
Tank Type 3-Sided Drop Tank
Maximum Workpiece Weight 1,540 lbs
Maximum Electrode Weight 110 lbs
Rapid Travel Speed 78.74 in/min
Electrical Requirements 200-220V/3Phz/60Hz
Machine Footprint Dimensions 68.9″ W x 80.7″ D x 93.1″ H
Machine Total Weight 8,195 lbs
Mitsubishi 700 Series CNC Control
80 Amp Power Supply
3 Sided Auto Drop Tank
20 Position Automatic Electrode Changer
C Axis with System 3R Macro Chuck
Remote Hand Pendant
Electric Chiller
