| X Travel | 1,630 mm | 64.173" |
| Y Travel | 762 mm | 30" |
| Z Travel | 700 mm | 27.559" |
| Power | 18.5 kW | 24.8 hp |
| RPM | 12 RPM | 12 RPM |
| # ATC | 24 | 24 |
| Taper | BBT40 | BBT40 |
| Table-W | 760 mm | 29.921" |
| Table-L | 1,730 mm | 68.11" |
| # Axis | 3 | 3 |

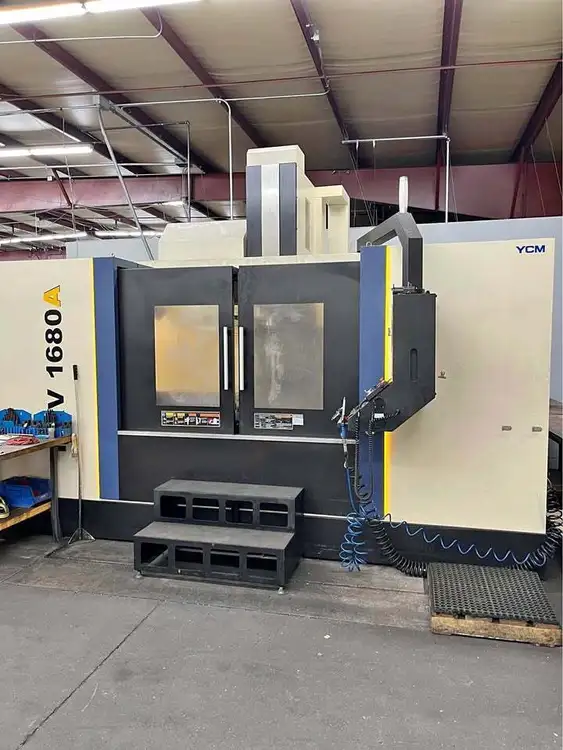

YCM NXV 1680A Vertical Machining Center (2015)
X - Axis Travel: 64.2”
Y - Axis Travel: 30”
Z - Axis Travel: 27.6”
Spindle Speed: 12000 Rpm
Spindle Motor: 40 Hp
Spindle Taper: Ct 40
Spindle Nose - Table Distance: 3.94” X 31.5”
Table Size: 68.1” X 29.9”
Max Table Load: 3307 Lbs
Rapid Traverse(X/Y/Z): 1181 / 1181 / 945 Ipm
Cutting Feedrate: 0.04 - 787 Ipm
Tool Changer: 30
Machine Weight: 24,251 Lbs
Fanuc Mxp-200fa Cnc Control, Chip Conveyor W/ 5 Auger Chip Removal System
