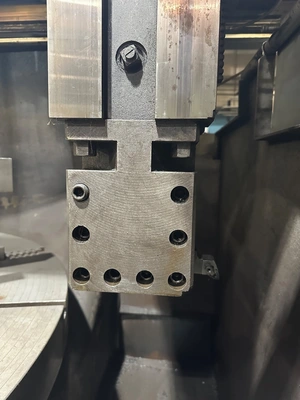

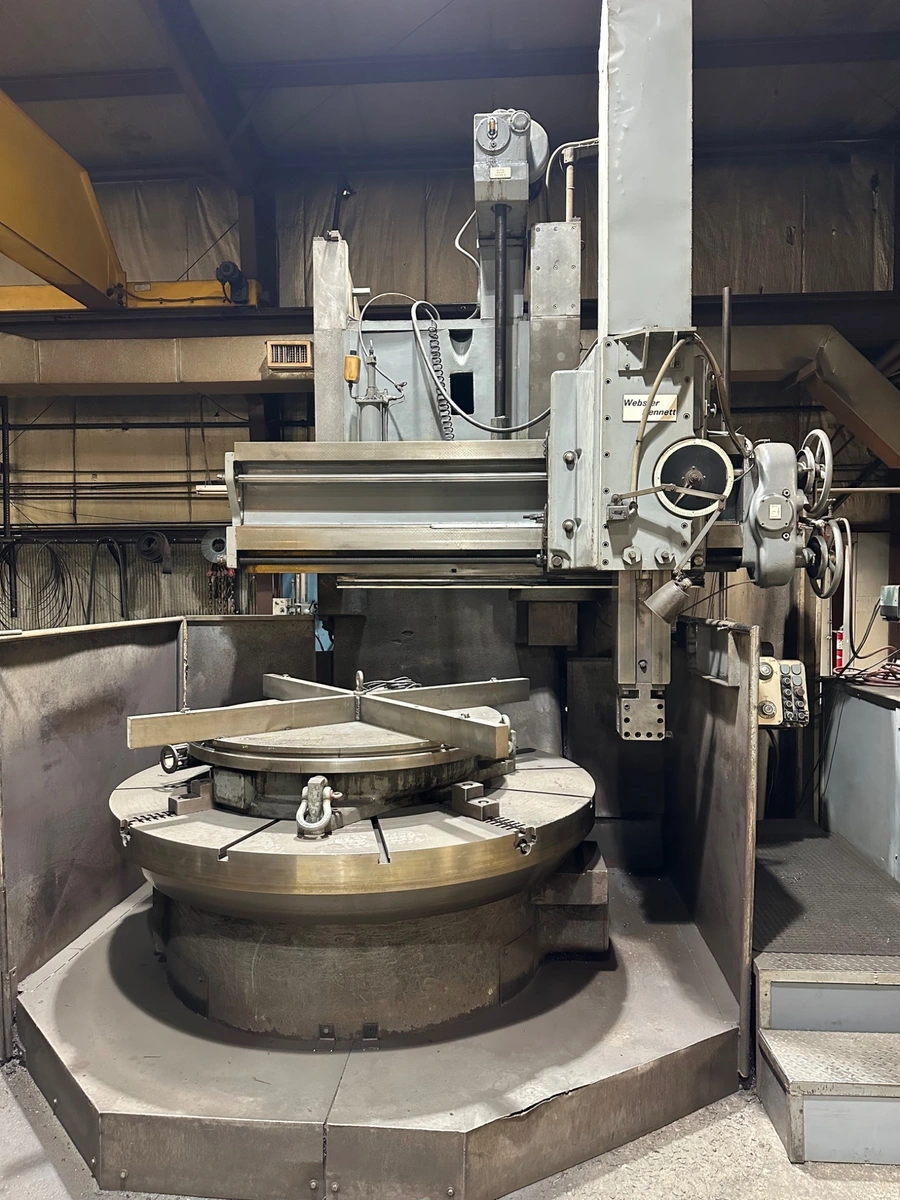

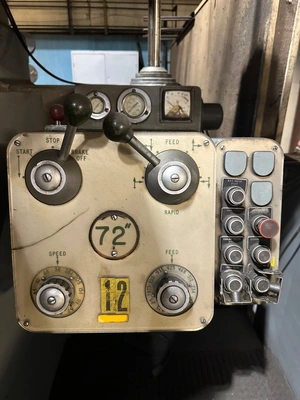

Webster & Bennett 72" Vertical Boring Mill

Webster & Bennett 72" Vertical Boring Mill
Chuck Size................................72"
Max. Swing................................84"
Max. Height Under Cross Rail..............48"
Min. Height Under Cross Rail..............24"
Vertical Travel of Cross Rail.............28"
Max Height Under Turret Face..............59"
Vertical Travel of Slide..................38"
Distance of Turret Travel.................51.5"
Spindle Speed.............................83 RPM
Spindle Motor.............................40 HP
Rapid Traverse Motor......................5 HP
Rail Elevation Motor......................4 HP
Dimensions................................128" x 180" x 160"
Weight....................................35,000 lbs
